Product Description:

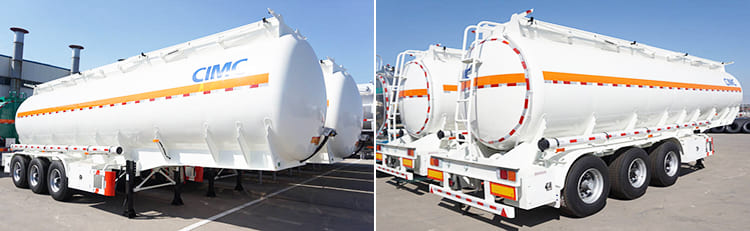

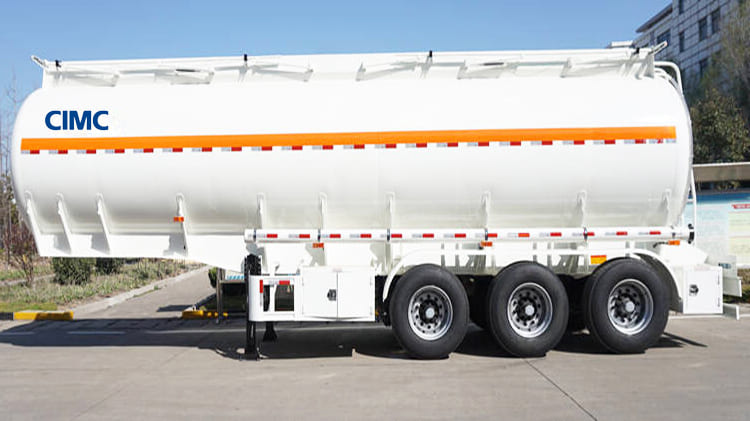

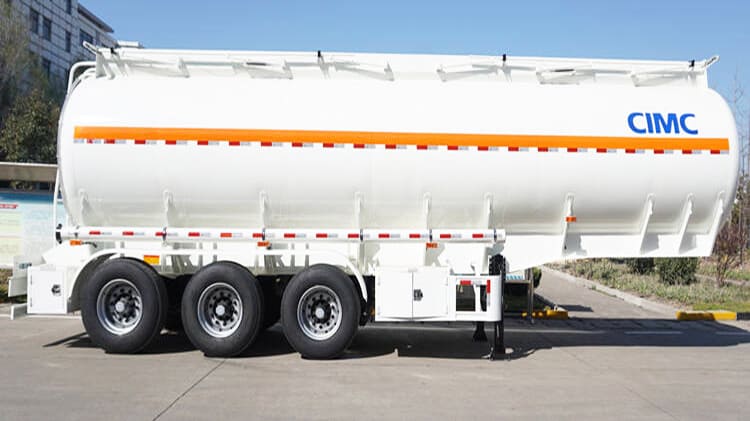

The tank body of Tri Axle 45000L Fuel Tanker Trailer adopts advanced welding technology, and the high-pressure gas leak test after the tank body is formed makes the tank body have the characteristics of high strength, stable center of gravity, safe and stable transportation, etc.

Specification:

Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)

Volume: 45000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
