3 Axle 60 Ton Fence Cargo Truck Trailer for Sale in Sudan

Sudan customers are our Facebook friends and have been following CIMC for many years. In 2019 years, the customer asked for details about the 60 ton fence cargo truck trailer. And tell us that he doesn’t have any idea to buy it at the moment, but might buy 3 axle fence truck trailer within two years. We inform customers that if you need a semi trailer in the future, you can contact us at any time.

He found CIMC Trailer again in 2021 and is looking for a 3 axle 60 ton fence semi trailer for his project. Customers have already learned a lot about CIMC 60 ton fence cargo truck trailer on Facebook. They trust CIMC very much as usual, and it went smoothly.

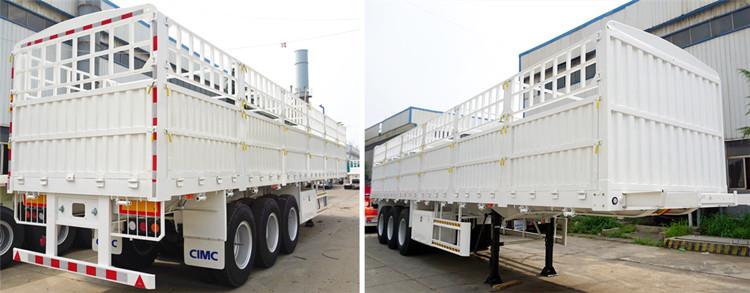

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale in Sudan

In daily transportation, when it comes to which kind of cargo truck trailer is the most feasible and popular in transport general commodity, Fence Semi Trailer must be the one.

The fence cargo truck trailer use to load a wide range of products and materials, like sand, bags, poultry, vegetables, fruits, clothes, appliances, and other daily necessities. Also the some bulk cargo, very widely used in the transportation industry. Fence semi trailers can also be used to transport sheep, cattle and other animals. The semi trailer with removable walls can be added with a container turn lock to transport the container.

3 Axle 60 Ton Fence Cargo Truck Trailer Details

Features of 3 Axle 60 Ton Fence Cargo Truck Trailer:

1. The frame of the 60 ton 3 axle fence cargo truck trailer is a beam-through structure, and the longitudinal beam adopts a straight type or a gooseneck type. The web height ranges from 400 to 500, the longitudinal beams are welded by automatic submerged arc welding, the frame is shot blasting, and the cross beams penetrate the longitudinal beams and weld the whole.

2. The fence structure design process is combined with the user's cargo category and rationally designed to fully reduce the weight of the carriage under load. The structure is simple and applicable, and it is convenient to disassemble, reduce investment costs for users and create more profit value.

3. Frame: A space frame structure formed by welding longitudinal beams and integral cross beams. It can balance the strength, rigidity and toughness of the frame, with strong bearing capacity and no permanent deformation.

4. Suspension system: adopts a new type of suspension system of 60 ton 3 axle fence trailer with high strength and strong impact resistance; the load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground during frequent turbulence. Effectively reduce tire wear, and at the same time, adjust the tie rod and adjust the wheelbase, effectively avoiding the phenomenon of partial running-in of the tire.

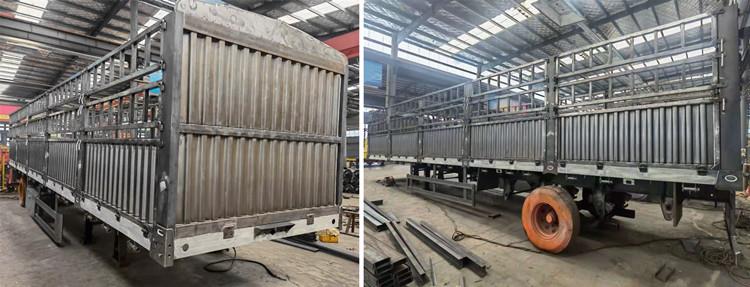

3 Axle 60 Ton Fence Cargo Truck Trailer in Factory

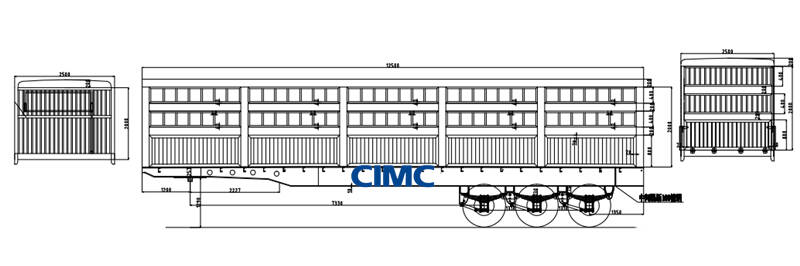

Fence cargo truck trailer dimension:

L*W: 12500mm*2500mm

Side boards height: 1800mm

Max. payload: <60T

Trailer Sides: 2000mm

Application: Coal/Cargo/Containers Loading

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ CIMC Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(FUWA or BPW brand)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V
