80 T Fence Cargo Trailer for Sale In Sudan

Sudan customer customized a fence cargo trailer for sale. This client has a friend in Sudan. After his friend learned that he wanted to buy fence cargo trailer from cimc, he recommended our company to him. Because the customer had seen CIMC's 80 ton fence cargo trailer locally, he liked CIMC's semi-trailer very much.

Sales manager Lora made adjustments based on the original basic configuration according to the customer's needs. Two months later, the customer is ready to pay the deposit. Now the 80 ton fence cargo trailer has been completed and is ready to be sent to Sudan.

The gooseneck structure of the 80 ton fence cargo trailer girder has three lanes, with the length of the middle one reaching the rear end of the main beam's diameter reduction. The height of the wing plate in the main beam of the 80 ton fence cargo trailer is 280mm in front and 500mm in the rear, which prevents the beam from breaking when the 80 ton fence cargo trailer falls into a mud pit (failure) under heavy load and requires external force to assist in towing.

80 T Fence Cargo Trailer for Sale In Sudan

80 ton fence cargo trailer girder gooseneck external reinforcement plate to the rear end of the variable diameter. Balances the hardness of the front gooseneck and rear main beam to prevent beam breakage.

Additional reinforced steel plates and triangular supports are added to the suspension position of the 80 ton fence cargo trailer for sale. Prevent damage to the suspension when the 80 ton fence cargo trailer is driving at high speed with a heavy load and encounters speed bumps or deep potholes on the road.

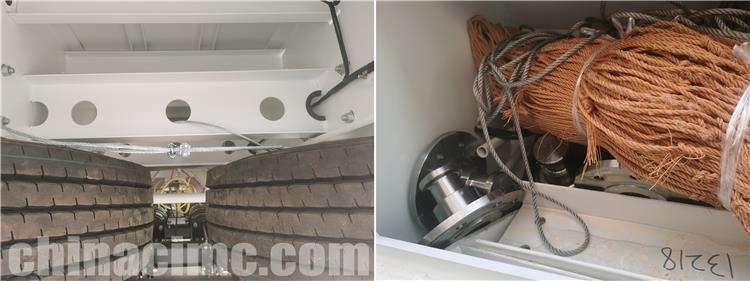

There are 9 paving strips under the floor of the 80 ton fence cargo trailer. This prevents damage to the bottom plate when uneven cargo is loaded and sharp goods press the bottom plate out of the pit.

80 T Fence Cargo Trailer for Sale In Sudan

The connection reinforcement pipe between the two suspensions of the 80 ton fence cargo trailer is protected by channel steel. This prevents suspension breakage caused by uneven stress on both sides of the suspension due to poor road conditions.

The rear bumper of the 80 ton fence cargo trailer for sale is made of high-strength square tubes and beam plates. The high hardness prevents rear-end collisions from causing damage to the 80 ton fence cargo trailer and cargo.

Both sides of the rope tightener are reinforced with small triangular plates, which provide additional reinforcement to the rope tightener to prevent breakage caused by excessive force.

80 T Fence Cargo Trailer for Sale In Sudan
