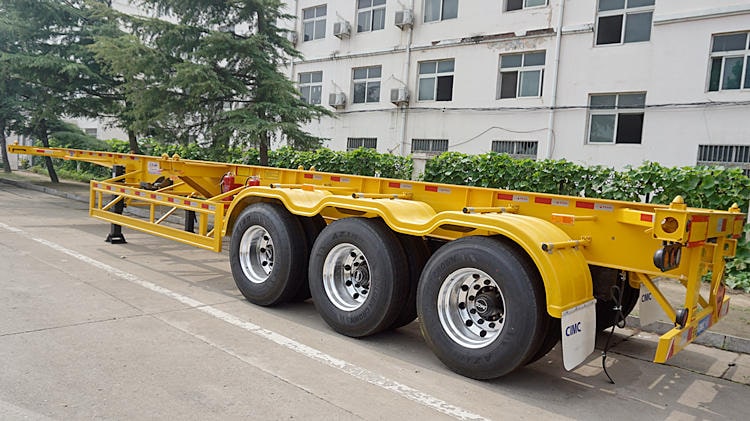

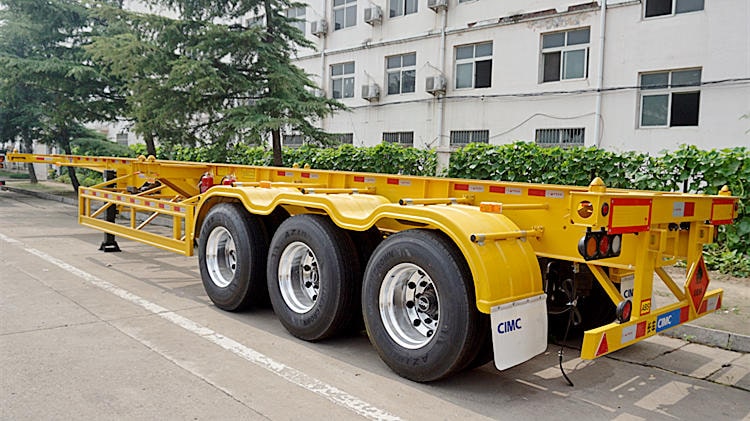

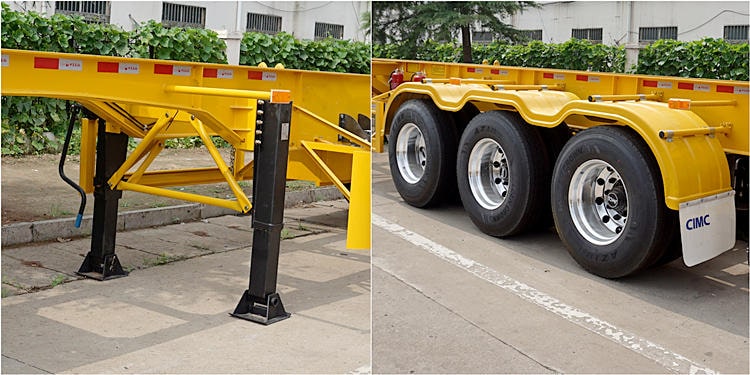

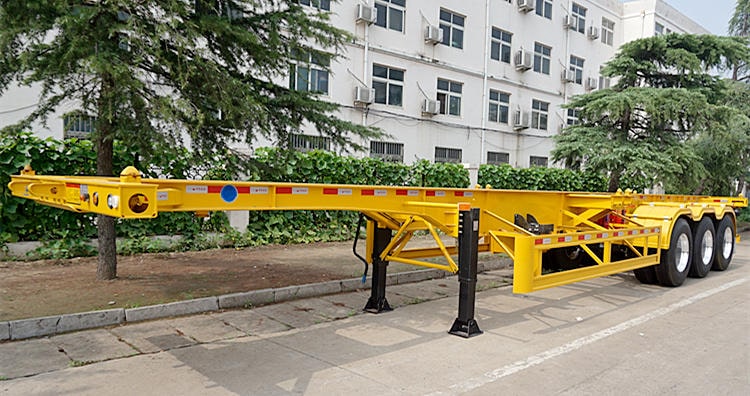

CIMC 40ft 3 Axle Skeleton Semi Trailer for Sale

A customer in Mauritius customized a CIMC 40ft skeleton trailer. The customer saw someone using a cimc semi trailer in the local area, and felt that the quality and appearance were good, so he searched for cimc trailers on the website. And left his contact information online. After that, the customer contacted our company's sales staff and expressed that they wanted to know more about the cimc semi trailer, and finally decided to customize a 3 axle 40ft skeleton semi trailer.

CIMC 40ft 3 Axle Skeleton Semi Trailer for Sale

Importance of the development of skeleton semi trailer?

The frame-type trailer is welded by electric welding of longitudinal beams, transverse load-bearing beams and front and rear beam development beams. The longitudinal beams are made of high-quality high-quality thick steel plate 16mn submerged arc welding into an I-shape (the main key dimensions are 450, 500). The cimc trailer load-bearing beam is made of high-quality thick steel plate stamped into a trough shape, and the front and rear beams are welded rectangular cross-sections. The central shipping container locking device is equipped with the entire chucking device and the integrated long horizontal load-bearing beam is set at the location to improve the carrying capacity of the container locking device and the shipping container chucking device. The difference between the flat platform type and the skeleton diagram is that the flat table top has a frame and a patterned road wooden floor.

CIMC 40ft 3 Axle Skeleton Semi Trailer for Sale

The frames of CIMC 40ft skeleton trailer cimc of wood series container transportation are all shot blasted. The entire frame is assembled and welded on a dedicated precision positioning platform. It has a reasonable structure, reasonable configuration, and high compressive strength. The appearance is beautiful and generous. A container tightening device is installed on the frame to define the container tightening equipment, which can load two standard containers of 40 inches in size and 20 feet by two inches. The four container constriction devices at the front and rear ends are fixed constriction equipment with a mobile structure, and the middle container constriction device constriction equipment is a concealable structure. When loading truck containers, the intermediate container locking device can be lowered and the clamping device can be reduced to below the floor plan of the cargo platform as required. Choose mechanical load-bearing device, mainly foot-operated load-bearing equipment, the key is the factory-equipped axle 12t, 20t; Fuhua 13t and other types.

CIMC 40ft 3 Axle Skeleton Semi Trailer for Sale

Advantages of the CIMC 40ft Skeleton Trailer

1. CIMC 40ft skeleton trailers specially used for the transportation of various containers. It cimc trailers can be used repeatedly for a long time and has sufficient strength.

2. Using containers to transfer goods can be directly loaded in the consignor’s warehouse and transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the container for reloading when changing vehicles or ships midway.

3. It can be quickly loaded and unloaded, and it can be directly and conveniently changed from one kind of transportation tool to another.

4. It is convenient for the filling and unloading of goods to meet the individual needs of customers. According to customer needs, tooling guarantee, stable quality and reliable performance.

5. The system tie rod angle design is reasonable. In the process of frequent operation, the instant friction slip distance between the tire and the ground is reduced, which effectively reduces tire wear. At the same time, the tie rod can be adjusted to adjust the wheelbase to effectively avoid the phenomenon of partial running-in of the tire.

6. The rotation lock adds a limit device, which makes the transportation safer.

7. The handle of the turn lock is beautiful and easy to operate.

8. The front sealing frame turn lock operating handle is placed inside the front sealing frame to prevent the handle from damaging the accessories of the host.

9. The two-position three-way valve is added to the braking system to improve the safety of the parking brake.
