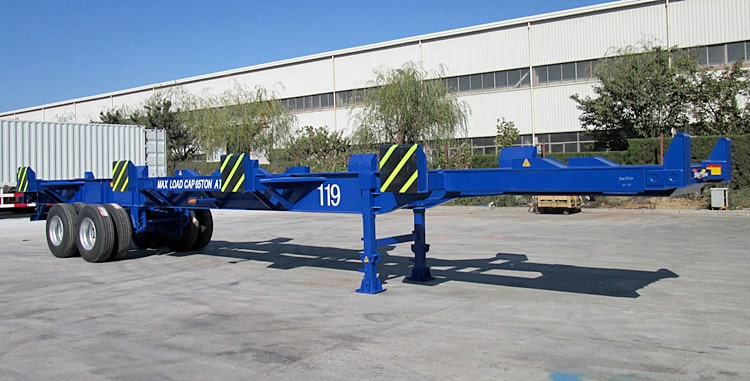

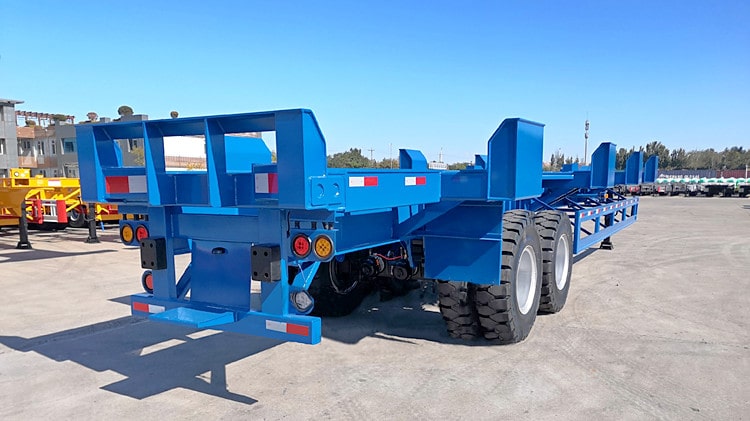

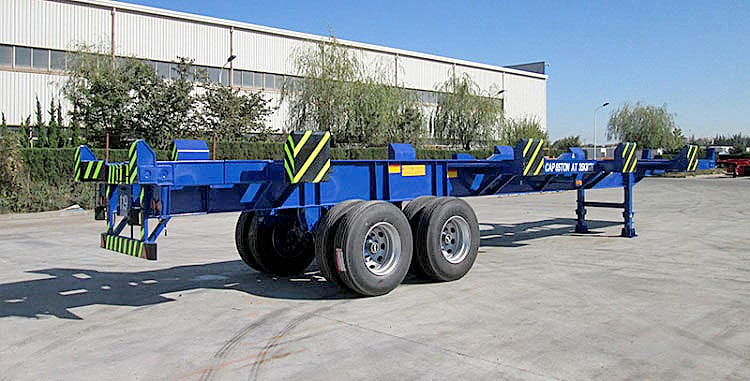

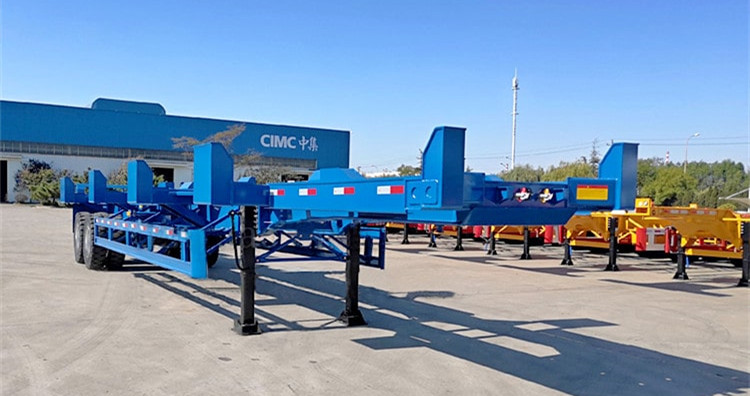

CIMC 40ft Terminal Port Trailer for Sale in Ghana

This customer from Ghana has customized a 40ft terminal port trailer. This is the first time that the customer has purchased a semi-trailer from CIMC. After searching the terminal semi trailer on the Internet, the customer clicked on our website and first downloaded the quotation on the website. After reading the quotation, he felt that the price was not clear. Then he contacted our online customer service and expressed that he wanted a copy. For the detailed quotation, our customer service also explained to the customer. After the customer has left his contact information, the sales will send a more detailed quotation. After the sales follow up for a month, the customer paid the deposit, and the balance was paid some time ago. It will be shipped soon.

CIMC 40ft Terminal Port Trailer for Sale in Ghana

Yard terminal trailer is a special transport semi-trailer used to transport containers. In the early days of the development of container transportation, due to the small load and the small number of containers, ordinary trucks were used to carry them. With the rapid development of container transportation, many countries have successively developed vehicles specially used for transporting containers. The yard terminal trailer determines the size of the loading position according to the size of the standard container, and is set at the position relative to the four corners of the bottom end of the container. Twisting and locking device for fixing containers, specially used for transport semi-trailers for transporting containers.

CIMC 40ft Terminal Port Trailer for Sale in Ghana

The four corners of the loading position are equipped with twist-lock devices to fix the container. Generally, semi-suspension, full-suspension and double-suspension styles are used, and most of them use semi-suspension styles. The characteristics of the terminal semi trailer should have the following conditions: it can be quickly loaded and unloaded, and it can be directly and easily changed from one mode of transportation to another. This kind of transportation method can directly replace the goods during the intermediate transportation without moving the goods in the packing box, which is conducive to the loading and unloading of the goods, can be reused for a long period of time, and has sufficient strength.

CIMC 40ft Terminal Port Trailer for Sale in Ghana

When the yard terminal trailer is connected and used, the following situations must be fully paid attention to.

1. Check whether the tractor and the terminal semi trailer match before connecting. If the bottom surface of the semi-trailer's traction pin plate is not suitable for the height of the plane center of the towing seat body, it cannot be connected. At the same time, pay attention to the container's oncoming surface distance. Prevent collision between the front face of the container and the tractor when the train turns.

2. When connecting, please note that the bottom surface of the terminal semi trailer traction pin plate is 1-30mm lower than the center of the upper surface of the traction seat body. Make sure that the separation joystick is in the separated state. The longitudinal symmetry plane of the tractor and semi-trailer should be consistent, and the deviation should be less than 40mm.

3. After connecting, check the position of the lock block carefully to prevent the lock block from bounce off when driving. The span hose joint that connects the terminal semi trailer and the tractor needs to be connected to the brake pipeline of the train, and check the pressure of each part Whether it meets the specified value. Connect the circuit of the yard terminal trailer and the tractor to ensure that the various signals of the semi-trailer work normally.

4. Separate the electrical connector and the jumper hose joint before unhooking. Make sure that the yard terminal trailer is parked reliably, and then shake the outrigger handle to make the outrigger fall to the ground, and raise the semi-trailer tire by 20-500mm for traction. The car slowly left the semi-trailer.
