Jamaican customers have ordered several side wall trailers from CIMC before. They are the most popular triaxle 40 ft trailer with boards, with the most commonly used mechanical suspension.

But this time he chose a 40t side wall trailer with bogie suspension. Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger.

CIMC 40T Side Wall Semi Trailer for Sale in Jamaica

Side wall semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. And the 40t side wall trailer can be added with a container turn lock to transport the container.

1. Working platform of side wall trailer

The work platfrom is the main load-bearing part, which is composed of the main beam, side beam, cross beam, bottom floor, suspension and so on.

(1)The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of side wall trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm.

(2)Bottom Floor, many Platform semi trailer are also used to transport bulk cargo and other items. The bottom plate of the CIMC side wall semi trailers passes the international standard 3mm thick checkered plate.

(3) Side door. The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.

CIMC 40T Side Wall Semi Trailer for Sale in Jamaica

2. Axles and Tires of side wall trailers

Axles:

The axle of the CIMC side wall trailer is a 13-ton axle + 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.

Tire:

CIMC side wall trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.

3. Suspension of side wall trailer

CIMC 40t side wall semi trailer use bogie suspension is to reduce the common leaf spring front and rear brackets to a single bracket connected to the car body. Its load point is shared on the front and rear axles. Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger. This suspension is less commonly used on ordinary semi-trailers, mainly on heavy vehicles.

CIMC 40T Side Wall Semi Trailer for Sale Details

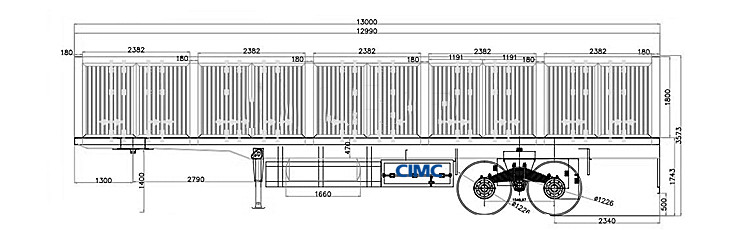

40T side wall semi trailer dimension:

L*W: 13000mm*2500mm

Side boards height: 1800mm

Max. payload: <40T

Application: Coal/Cargo/Containers Loading

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ CIMC Brand

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Bogie suspension(FUWA or BPW brand)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V
