CIMC 60t Drop-Side Body Trailer for Sale

A customer from Malawi has customized a cimc 60t drop-side body trailer. This customer customized a cimc cement tanker trailer at CIMC last year. This time the customer directly contacted the sales of the business that talked to him last year and expressed that he wanted to customize one. 60t low drop side body trailer, because this customer is an old customer, so the details of product packaging and transportation are well understood. After confirming the configuration and size of the car with the customer, the factory quickly completed the production of the whole trailer and shipped it in a few days.

CIMC 60t Drop-Side Body Trailer for Sale

The cimc 60-ton side trailer is very popular among customers of logistics transportation companies. Because the cimc 60t low-drop side trailer can be used for cargo transfer many times. The 60t low falling body trailer meets the multi-purpose transportation needs of logistics companies and has a wide transportation capacity. The 60t low falling body trailer can be used to transport loose goods such as bagged cement, bagged powder, beer, beverages, Coca-Cola, steel bars, steel pipes, steel plates, sand, granite, etc. It is widely used in land transportation.

It can produce 60 tons of low-drop side trailers according to customers' special transportation needs. The loading capacity can be 30 tons, 40 tons, 50 tons, 60 tons, 80 tons and 100 tons. The height of the side wall of the side wall trailer can also be customized according to customer needs, ranging from 0.6m to 2m. And the total length of the sidewall trailer can be made for special purpose of transportation, such as 40ft, 45ft, 15m, 16m length. CIMC trailer uses high-strength steel to build the main beam of the low drop side body trailer, and the main beam of the side wall trailer is made of thick steel plate to ensure that the chassis will not bend in the middle of the trailer after years of use.

CIMC 60t Drop-Side Body Trailer for Sale

How to buy a CIMC 60t drop-side body trailer?

How to know the quality of a CIMC side wall semi trailer? The easiest way is to look at the weight of the cargo semi trailer. The heavier the weight of cargo trailer, the better the quality. The 3 axle cargo trailer purchased by African customers self weighs is 7.8 tons. If the weight is only 6.7 tons, the cost of this general cargo trailers can save more than 1,000 dollars.

Here are a few more important points

1. Working platform of side wall trailer

The work platfrom is the main load-bearing part, which is composed of the main beam, side beam, cross beam, bottom floor, suspension and so on.

(1) The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a fence cargo semi trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.

The international standard thickness of the middle part of the beam must be 8mm.

(2) Bottom Floor, many Platform cimc semi trailer are also used to transport bulk cargo and other items. The bottom plate of the Titan Drop Side Body Trailers passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate. Cost can be reduced by $ 700.

(3) Side door. The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure.

The door frame is a 40x60mm rectangular steel tube.

(4) Stake style. The overall height of the fence cargo trailer, the overall height of the stake trailer is 1.6 meters, 1.8 meters, 2 meters. You can customize the height and style of the fences trailer.

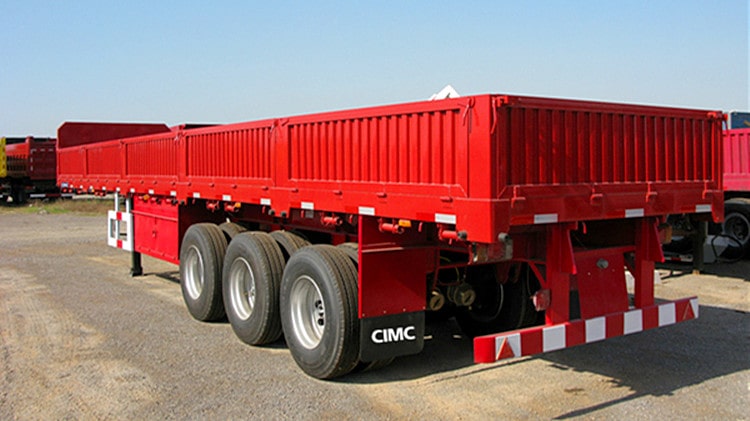

CIMC 3 Axle 60t Drop-Side Body Trailer for Sale

2. Axles and Tires of general cargo trailers

Axles:

The axles of dry cargo trailer for sale are divided into three types: 13-ton axles, 13-ton axles + 16-ton brake system axles, 16-ton axles,

The axle of the CIMC dropside trailer is a 13-ton axle + 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.

Tire:

The CIMC 60t drop-side body trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.

CIMC dry goods carrier trailer uses custom made tires in a tire factory., wear-resistant tires. On Chinese highways, CIMC tires can reach more than 300,000 kilometers.

3. Suspension of cargo semi trailer

Suspension. CIMC multi-function trailer suspension adopts special high-strength steel. 6mm thickness. Center pin diameter is 70mm.

Stronger than suspensions in many factories. Stronger than suspensions in many factories.

CIMC open top trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, etc.

With ability to carry heavy loads with utmost ease and OEM assured body warranty, CIMC 60t drop-side body trailer is an ideal choice for your business.

CIMC 60t drop-side body trailer higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer's needs. The open top trailer provides you with longer tyre life, high fuel efficiency and less maintenance cost which gives you higher revenue and lower operating cost, substantially increasing your overall profit.
