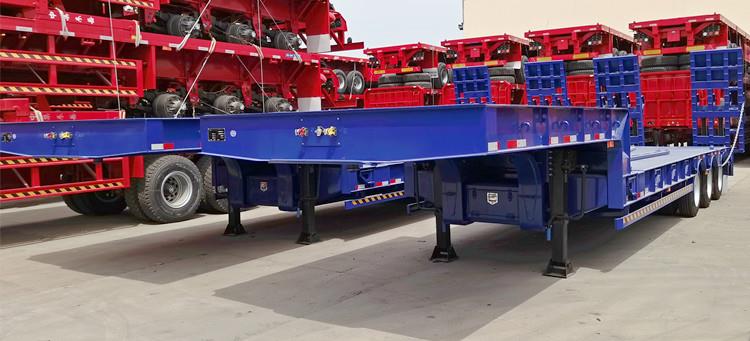

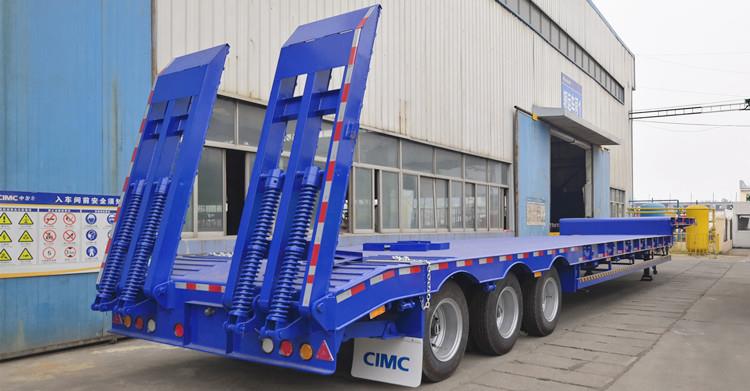

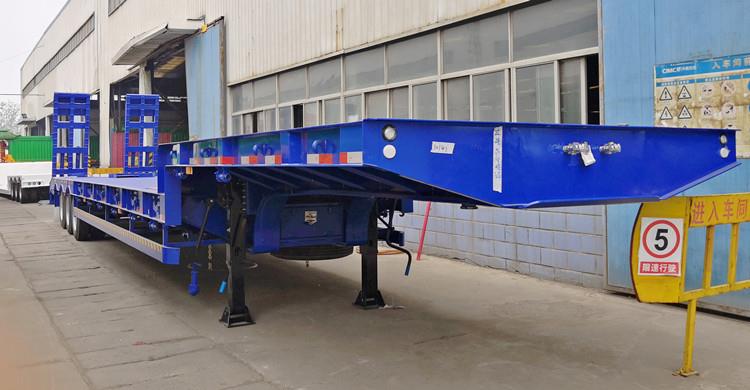

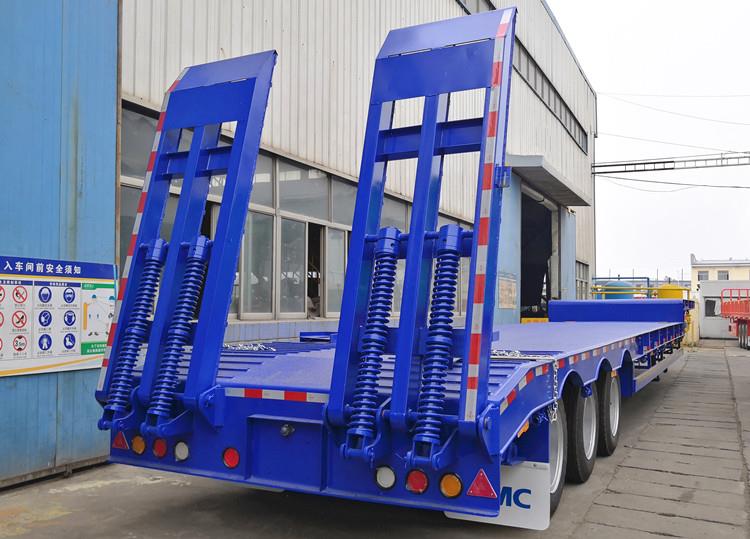

CIMC 60T Tri Axle Drop Deck Trailer for Sale in Ghana

Second purchase by Ghana customer. To be honest, the customer bought two units drop deck trailers for himself and his friend because it saves a part of the shipping cost. Because their friends don’t understand the imports, they asked him for help, and the customers felt that CIMC was trustworthy and recommended. CIMC has a lot of drop deck trailers for sale in Africa, as well as many customers.

CIMC tri axle drop deck trailer's delivery time can be controlled within 25 working days after receive the deposit. Strict quality control system make sure perfect performance in every step.

CIMC 60T Tri Axle Drop Deck Trailer for Sale in Ghana

Production Process of CIMC Drop Deck Trailer:

Before production, CIMC technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main trailer are matched, and then transferred to the manufacturing department.

1. Stage of cutting steel sheet material

According to the drop deck trailer drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.

2. Opening, calibration beam, through beam

First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel. The result of comparing the beams is very important. If two I-beams have large parallel errors, very serious tire wear will occur.

3. Submerged arc welding beams, beams fixed

The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.

CIMC 60T Tri Axle Drop Deck Trailer for Sale in Ghana

4. Welding frame, welding suspension

At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise it will cause tire wear.

5. Connect side beams, welding king pins

At this time, the main beam is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise the tri axle drop deck trailer will be skewed.

6. Attach the front neck

Drop deck trailer with front neck have this process, and flatbed semi trailer do not have this process. The front neck of the drop deck trailer is welded up. Welding is done to strengthen the plate. There is no problem with the strength. CIMC have also considered it in advance.

CIMC 60T Tri Axle Drop Deck Trailer for Sale in Ghana

7. Lay the bottom plate

That is, the bottom plate is fully welded on the frame. There is nothing to say at this step.

8. Frosted and painted

Frosting is the previous step of spray painting. Some manufacturers without shot blasting workshops will blow and polish the welding slag with high pressure gas at this stage.

9. Installation the bottom accessories

After spray painting is completed, the bottom travel system is installed, and the assembled bottom is simply mounted and then precisely adjusted.

10. Install the tire

Everyone is familiar here. It should be noted that the air pressure at the factory is generally not the standard air pressure. You must confirm it again after you buy the drop deck trailer for sale.
