Tri Axle 80 Ton Side Wall Trailer is ready ship to Sudan

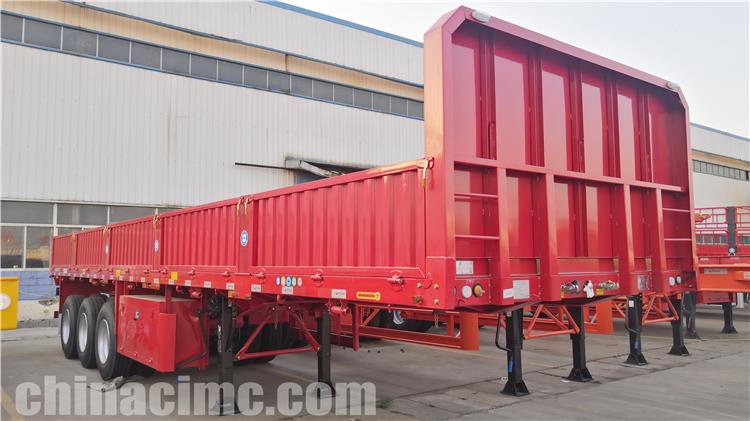

CIMC Tri Axle 80 Ton Side Wall Trailer for Sale In SudanCIMC Tri Axle 80 Ton Side Wall Trailer for Sale In Sudan

Sudan customer has new transportation needs and wants a low side wall trailer for steel, wood and other building materials and of short-distance transportation. After our sales and Senegal customers communicated, soon, the customer determined some specific production details, we also gave the customer appropriate discounts, and soon, the customer signed a production contract with CIMC. Eventually, he ordered this tri axle 80 ton side wall trailer.

CIMC tri axle 80 ton side wall trailer is designed for the transportation of various cargoes: building materials, machinery, and products of industrial enterprises.

The front wall of the side wall trailer is reinforced to eliminate the possibility of damage to the cab during emergency braking. 80 Ton side wall trailer with boards and racks are quick-detachable, they can be quickly dismantled for loading/unloading goods.

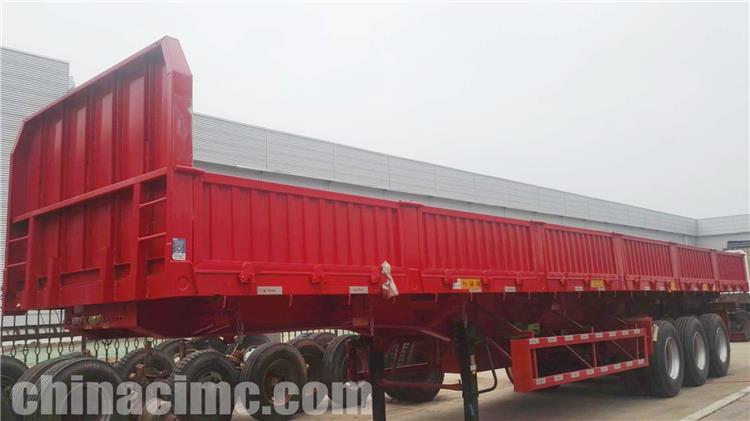

CIMC Tri Axle 80 Ton Side Wall Trailer for Sale In SudanCIMC Tri Axle 80 Ton Side Wall Trailer for Sale In Sudan

The design of the side wall trailer CIMC is based on a reliable and durable frame, spar type, with cross members. Before painting and priming, the metal structure of the frame is shot-blasted. The chassis of the CIMC side wall trailer is equipped with a 3-axle with air suspension or mechinal suspension and disc or drum brakes.

The traction seat is one of the significant components of the tri axle 80 ton side wall trailer. As a device connecting the tractor and the tri axle 80 ton side wall trailer, it is commonly known as the saddle, and is sometimes referred to as the fifth wheel.

It plays the role of carrying, steering and connecting the tractor and the sidewall semi trailer. The force of the 80 ton side wall trailer during the driving process is also quite complex, and it needs to bear a variety of vertical, longitudinal and lateral dynamic loads. It is a cargo semi trailer. trailer and its important connectors and safety parts.

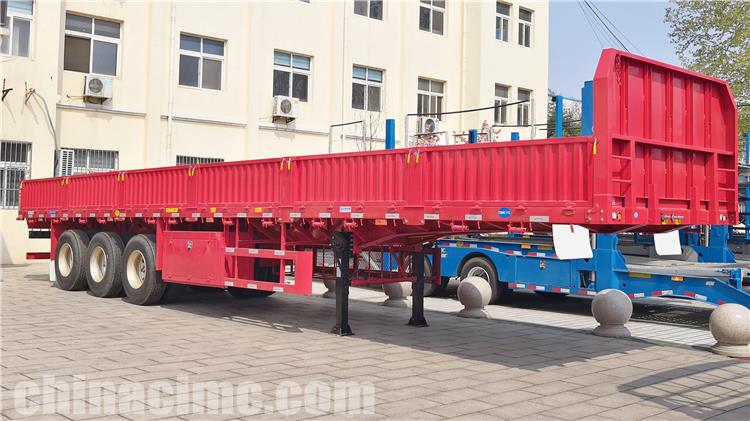

CIMC Tri Axle 80 Ton Side Wall Trailer for Sale In SudanCIMC Tri Axle 80 Ton Side Wall Trailer for Sale In Sudan

Side wall semi trailer tow pin with saddle

Lock hook and pin block design: The side wall trailer is connected to the traction seat through the cooperation of the traction pin and the lock hook. The traction pin is a national standard interchangeable part. Therefore, in the design process, it should be ensured that the lock hook conforms to the national standard traction pin. installation requirements.

If the lock hook design cannot well meet the requirements of the national standard, it will directly affect the hanging of the 80 ton side wall trailer.

As important moving parts, the lock hook and the pin block must cooperate with each other during the movement process. Therefore, the outline of the matching place is very important. If this factor is not considered in the design process of the lock hook and the pin block, there is the possibility that the two will issue cards during the movement.

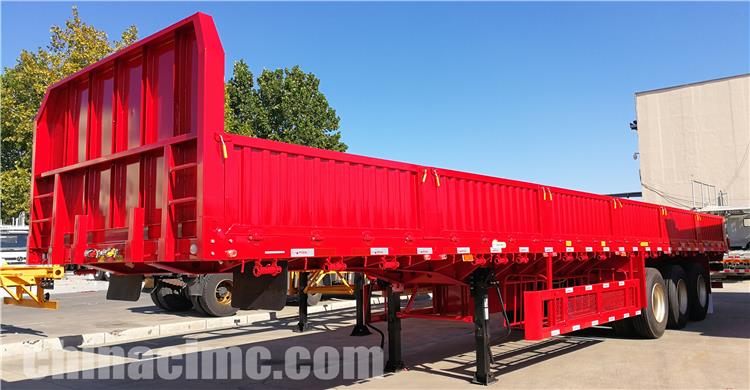

CIMC Tri Axle 80 Ton Side Wall Trailer for Sale In SudanCIMC Tri Axle 80 Ton Side Wall Trailer for Sale In Sudan

The composition of the saddle of the tractor

Saddle plate - the main part of the traction seat, on which the support, lock hook, pin block, square box welding assembly and other components are installed to form a whole of the traction seat.

Locking hook - By pulling the handle to operate the assembly, the pin block is moved, so as to lock and separate from the sidewall trailer for sale traction pin.

Pin block - control the side wall trailer traction pin by pulling the handle to operate the assembly to move it.

Safety Lock - Locks the handle operating assembly to prevent accidental unhooking.

Handle control assembly - used to control the movement of the lock hook and the pin block to achieve the locking and separation of the side wall trailer traction pin.
