CIMC Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

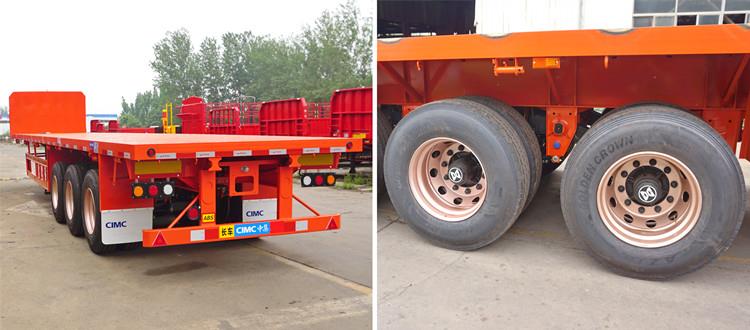

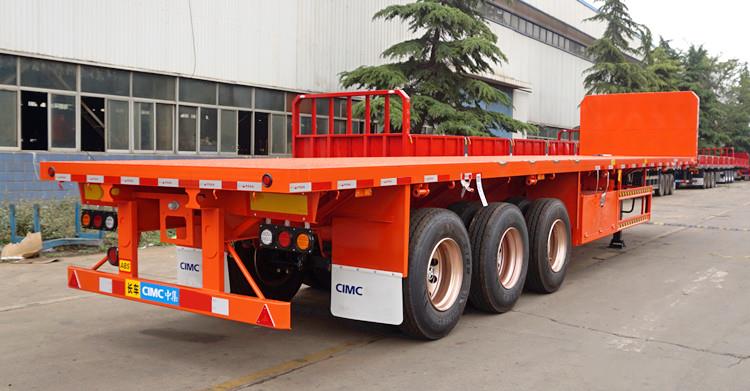

Nigeria customer trust the CIMC brand very much. Although CIMC flatbed trailers are more expensive than other brands, they are of higher quality. The customer ordered 10 units flatbed trailer from CIMC, which were packaged and shipped to the port today. This is a tri axle flatbed trailer 40ft with front board, usually used to transport containers or other equipment.

Flatbed trailer is designed for the transportation of products such as 20 Ft, 30 Ft, 40ft, 45 ft container, loaded flat reck, open top container. Also known as tri axle trailer. The steel plate clad on the chassis body provides a flat appearance. The raised surface prevents the load being moved. Available from 2 axles to 4 axles. Container corner connection and locks ensure load stabilization. It is also suitable for carrying 20 ft and 40 ft containers. The distance between the axles and the king pin is adapted to the center of gravity. It has a capacity of 40 to 80 tons.

CIMC Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

How to choose a right tri axle flatbed trailer

The different types of tri axle flatbed trailers are designed for use in different applications. Therefore, it is important to assess your needs before making a choice of the type of flatbed trailer you need. Here are key factors to consider:

Size: The flatbed trailer for sale is designed to carry different cargoes and containers: a flatbed for a 20ft container and another for a 40ft. If you need a tri axle flatbed for carrying an oversize load, then an extendable flatbed trailer will be the best choice to go for. The choice based on size is usually made putting these requirements into consideration.

Load Capacity: The load capacity can also determine the type of trailer that you will choose based on your needs. It can range from 10 tons – 80 tons. Again, this should be based on different requirements as defined by the local laws and regulations on such matters. The various tri axle flatbed trailers take a considerable size and weight of cargo. However, all are not designed to carry the same amount of weight. On applications where weight considerations are to be made, the 2 axles or 3 axles container chassis trailer can really help. Heavy cargo can comfortably and securely be carried on these strong chassis made of high-yield materials.

Axles and Tires: The different axle capacity is based on transportation needs and requirements. However, every choice based on the axle configuration should also be in line with the local transportation laws and regulations. The most common configuration is tri axle flatbed trailer, it comes with 12 tires.

CIMC Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

Main Parts of tri axle flatbed trailer

1. Kingpin of flatbed trailer for sale

The 90 # traction pin represents the diameter of the traction pin is 90mm, and the material is mainly chromium alloy. CIMC flatbed trailers for sale near me and the tractor are all connected by it. It is connected to the traction seat of the main vehicle and also bears all the traction. It is an important component.

At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users should choose according to different models and actual use.

2. Flatbed trailer support device

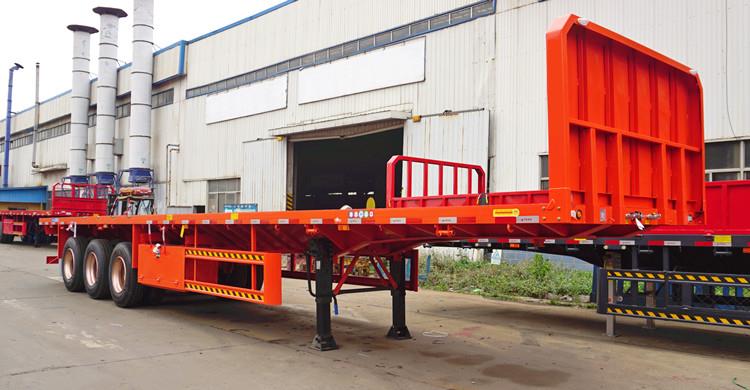

Commonly known as outrigger. Using the principle of "standing timber jacking", it is located at the front end of the tri axle trailer for sale frame for use after the container semi trailer is separated from the tractor. Classification of outriggers: Single-acting outriggers are operated separately on both sides, there are two cranks, and each gear has a car gearbox.

Linked outriggers are made from both sides while operating. There is only one crank, which is composed of one gearbox and one without.

The main components of the outrigger are two-speed gearbox, support sleeve, support rod, drive screw, and the support plate. The structure is very simple and the function is very important.

CIMC Tri Axle Flatbed Trailer for Sale Details

3. Suspension of tri axle trailer for sale

Steel plate suspension is our common leaf spring, its full name is series-connected leaf spring balance suspension. It is mainly composed of leaf springs, suspension bearings (commonly known as lifting lugs), connecting rods, U-bolts and other parts. The longitudinal force of the car body falls directly on an axle. The biggest advantage of this kind of suspension is low price, good reliability and easy maintenance. At present, more than 80% of ordinary flatbed semi trailer in China use leaf spring balanced suspension.

4. Braking system of flatbed trailer for sale

Brake air chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle.

Brake valve is used to control the braking of trucks or tri axle flatbed trailer. It is suitable for flatbed trailer with dual-line brake system, and parking or emergency brakes are air-braking brakes. It has the function of automatically causing the flatbed trailer brake when the control pipe connection of the trailer brake system is broken or leaking.
