3 axle- 40ft – Flatbed semi trailer

2018-08-24




Today 3 units CIMC flatbed semi trailer will send to Madagascar ,These kind of Flatbed Trailers are used for carrying container, steel bar, other items which is loaded with pallet and normal cargo loaders. we can offer Flatbed Trailers with different specification according to country regulations and customer demand from 20 tons to 70 tons.

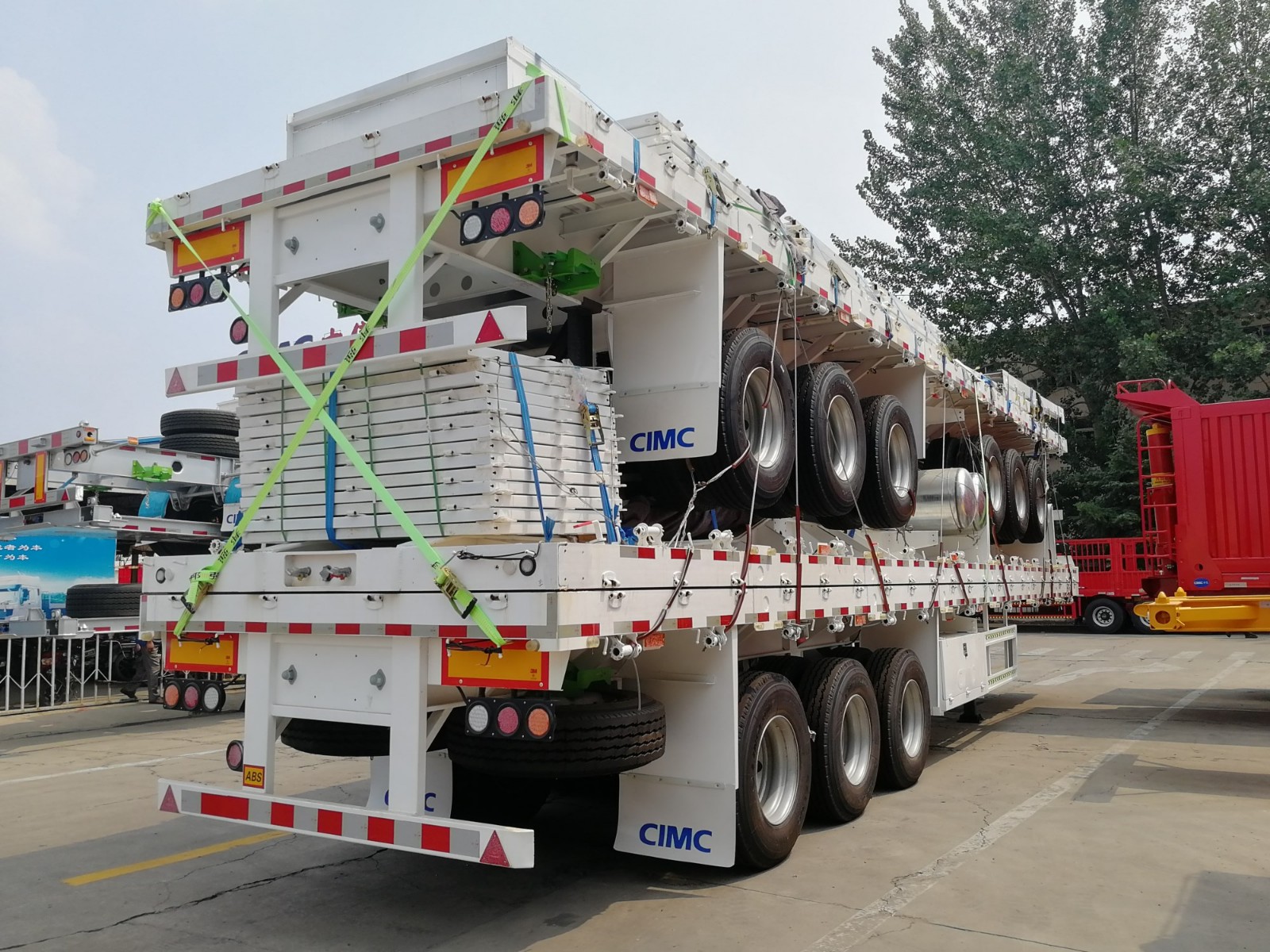

3axle- 40ft – Flatbed semi trailer

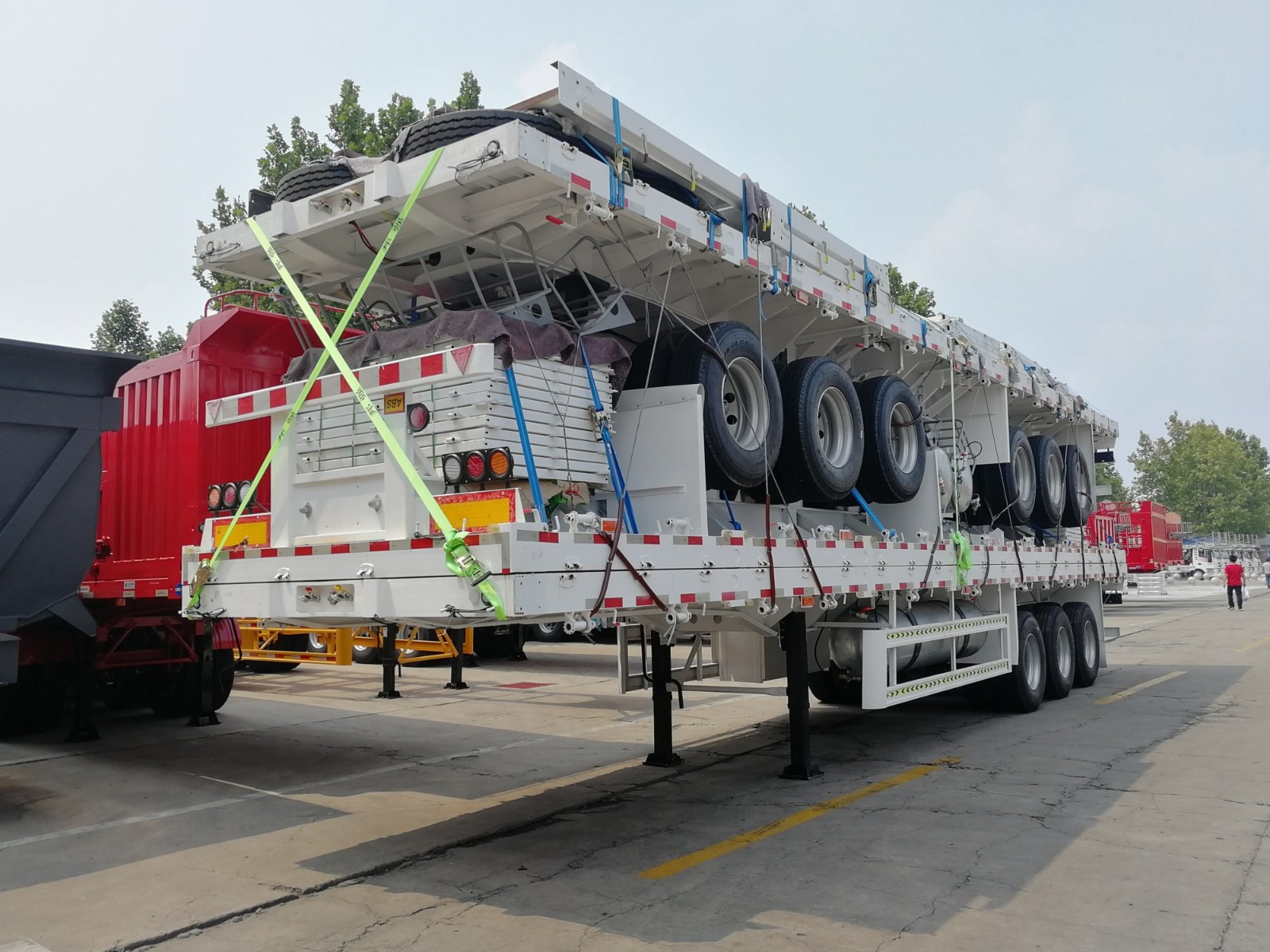

3axle- 40ft – Flatbed semi trailer

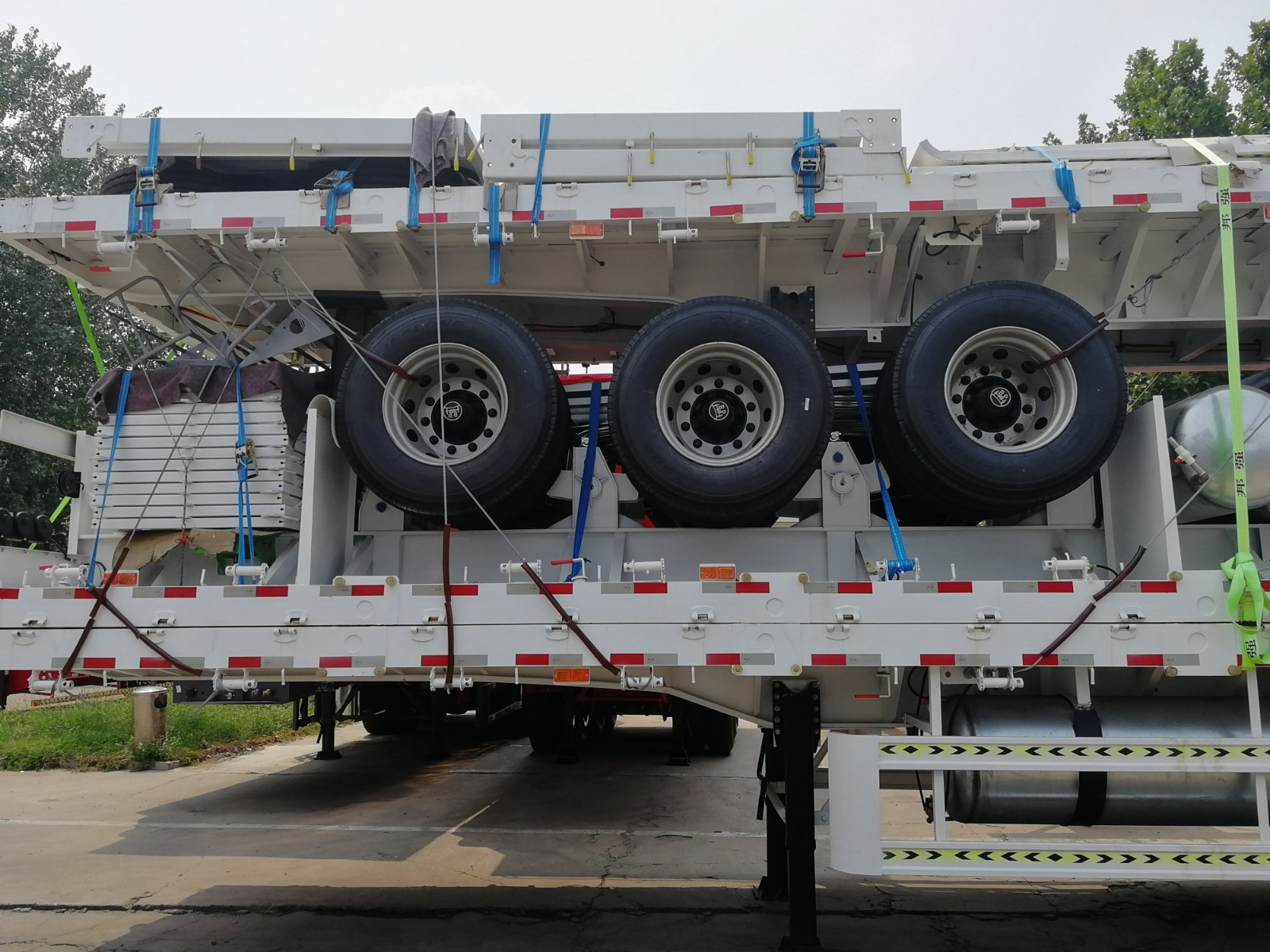

3axle- 40ft – Flatbed semi trailer



Specification
Overall L*W*H 12,500×2,500×1,530 mm
Payload 60 tons
Axles 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW / L1/JL or other Chinese famous brand )
Tire 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5 ( triangle , double coin brand )
Landing gear JOST orequivalent with a lift capacity 28 tons
Kingpin 50(2inch)#or 90(3.5inch)# bolted type
Suspension Mechanical / airbag / bogie suspension
ElectricBrake systemal system 24V /12V
Brake system WABCO brake system with dual brake charmbers and emergency brake valve
Container lock
12 pcs
Accessories Tool box , spare tire carrier
