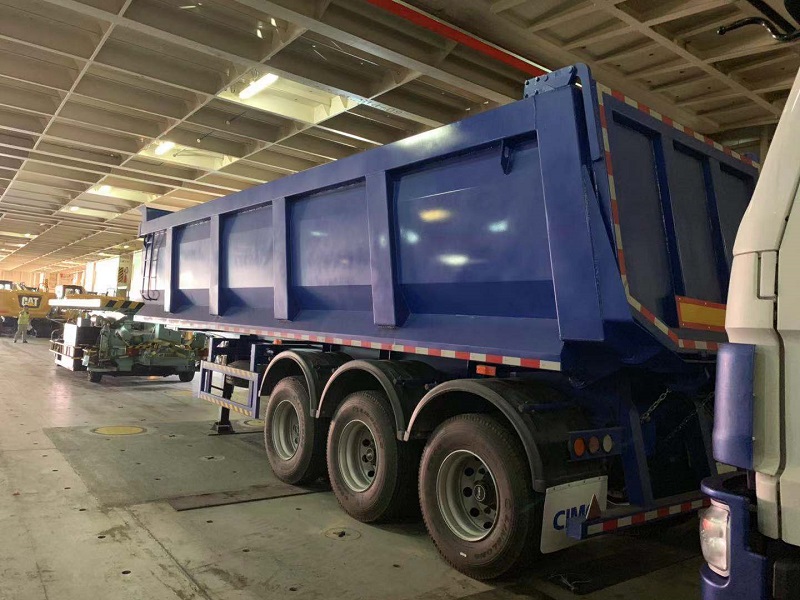

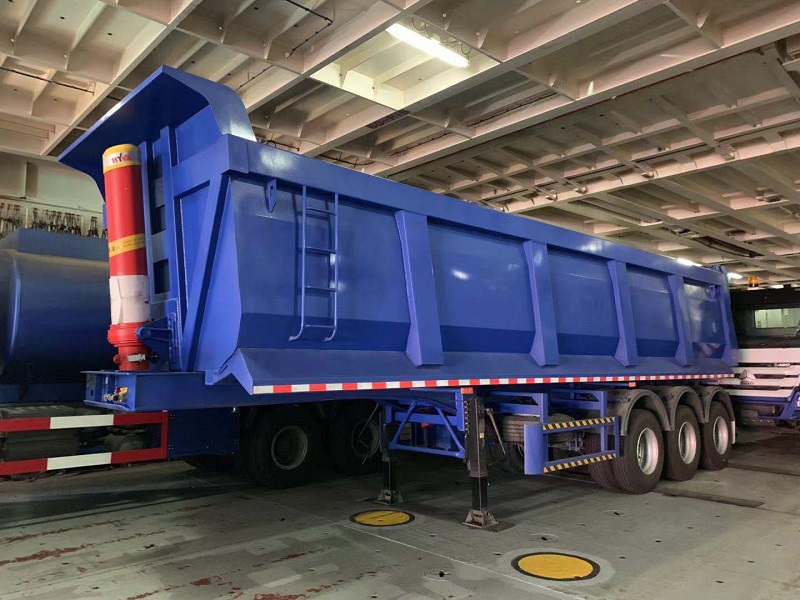

This type is U-shape dump trailer ,A very popular type of dump trailer . the loading capacity of trailer is 60ton ,and the rated lifting capacity is 80ton ，Normally, 100 tons is also OK. Our customers are mainly used to transport Sand ，ore, etc. it's Very suitable for bad road conditions .
|
SPECIFICATIONS |
|
|
Dimension |
Overall (L*W*H):10500*2500*2800 mm |
|
Material |
T700 High strength steel |
|
Main beam |
Height : 500mm |
|
Thickness of beam:
|
Up:14mm middle: 8mm bottom:16mm |
|
Both side plate/bottom plate thickness |
4mm/6mm
|
|
Cylinder
|
191 HYVA Heavy duty hydraulic cylinder |
|
Traction pin |
2 inch bolted type |
|
Axle |
3 axles, 13 ton FUWA axle. |
|
Tire |
13 pcs, 12R22.5 (12 units + 1 unit Spare tire) |
|
Landing gear |
JOST C200 |
|
Suspension |
Mechanical Steel leaf spring suspension, 10 layers |
|
Brake system |
WABCO relay emergency valve,Dual air brake system, |
|
Color |
optional |
|
Electrical |
24V sealed wiring harness, 7-pin connector at front, LED light |
|
Accessories |
1 standard tool, 1 spare tyre carrier, power takeoff,transmission shaft,fuel tank |
If you are interested, welcome to the inquire ! Thank you!
We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !
