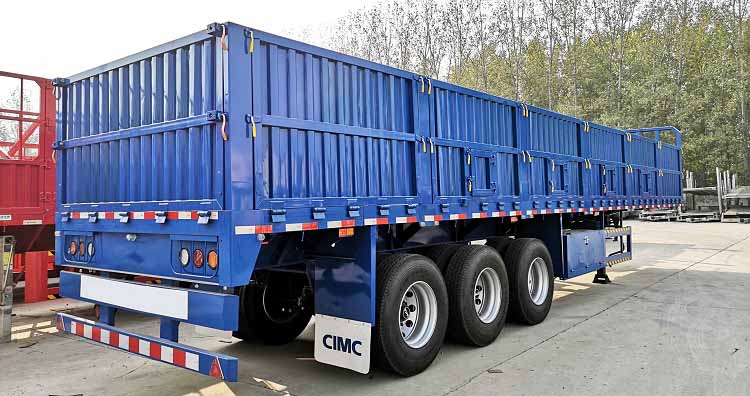

CIMC sidewall trailer has ready for shipment.

Our Zambia customers ordered 10 unit fence trailer last year, The customer told us immediately after receiving the fence trailer, and told us that the trailer reached the destination very smoothly, the packaging was completed and there was no damage. They also hope that the fence trailer will be put into use as soon as possible and create greater value for them.

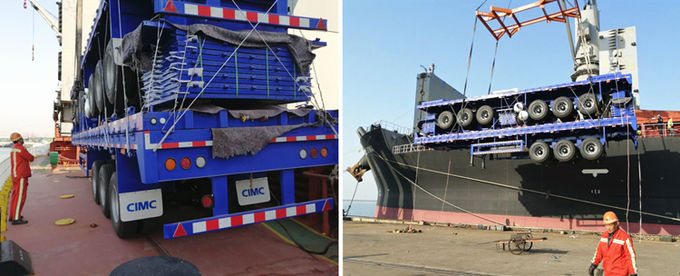

This time, the customer placed an order for 4 unit side wall semi trailer and 4 unit flatbed semi trailer. Just shipped yesterday. Although this is not our first cooperation, we still maintain our original intention and provide our customers with the best quality. Thank you very much for your trust in us.

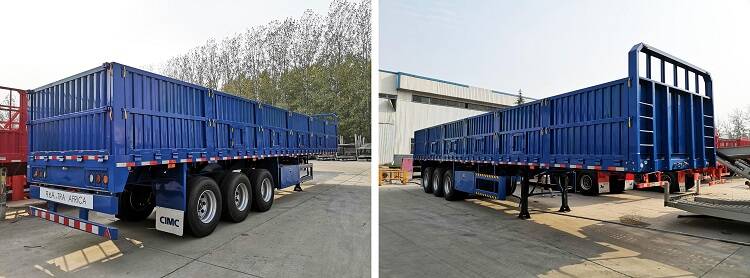

Important points of sidewall trailer

Bottom Floor

Many Platform semi trailer are also used to transport bulk cargo and other items. The bottom plate of the Drop Side Body Trailers passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate.

Side door

The common height of side door is 600mm, 800mm, 1000mm. The side door adopts a vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.

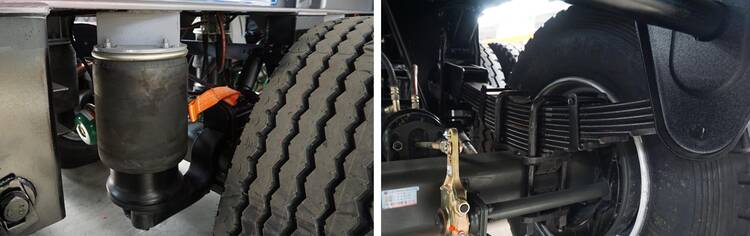

Suspensions

You can choose from different types of suspensions for your cargo transport trailer. like air suspension, spring suspension, bogie suspension.

CIMC spring suspension width is 120mm, the thickness is 10mm, and rotation pin of suspension we use 70mm. Ensure it has high loading capacity and increases its capacity to twisting forces, shock, bump.

Main beam

The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a Side Panel Cargo Semi Trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. The international standard thickness of the middle part of the beam must be 8mm.

High-strength frame longitudinal beams and integral through cross beams are assembled welding space structure, high-quality high-strength steel, automatic submerged arc welding, strong bearing capacity, not easy to deform.
