Material: main beam Q345B
Size: 12500*2500*1550mm
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST flatbed semi trailer
CIMC 3 axle 40 foot flatbed trailer adopt premium steel material, Raw material resource of CIMC guarantees quality.
CIMC flatbed semi trailer can transport up to 60 tons of commercial and industrial cargo on roads of any category.
3 axle flatbed semi trailer can be tailor made to suit individual needs.
CIMC 60 tons 3 axle flatbed trailer for sale

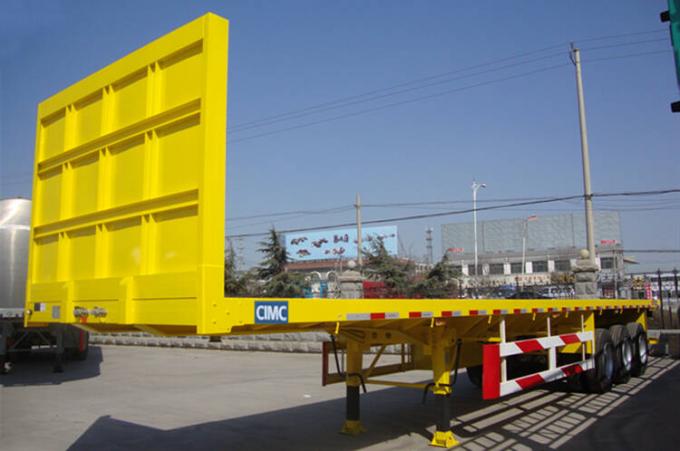

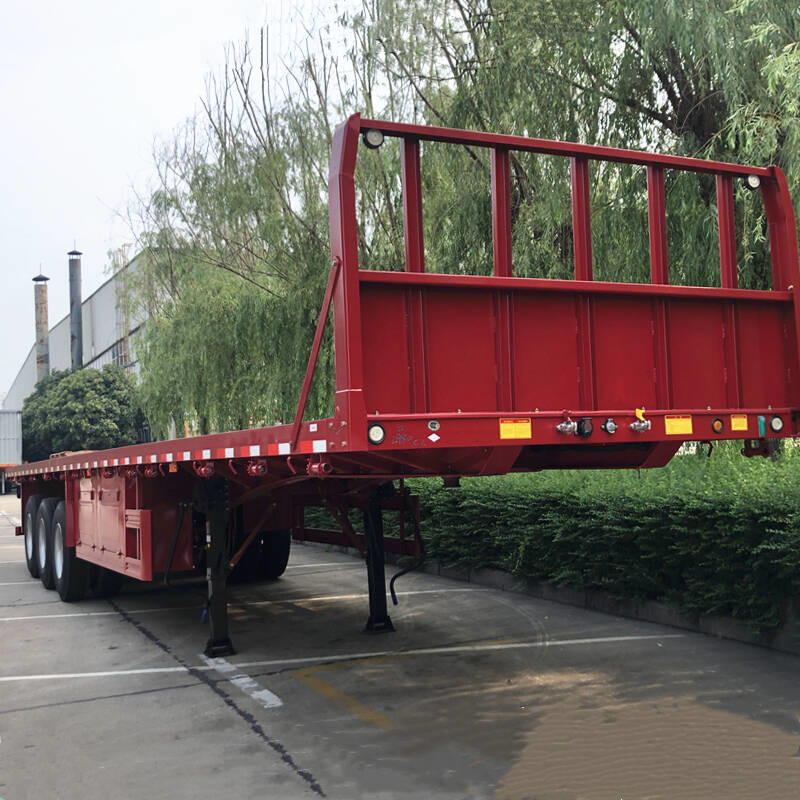

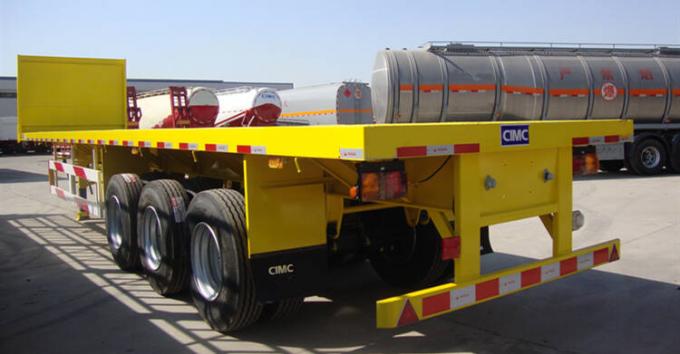

CIMC 3 axle flatbed semi trailer with front wall

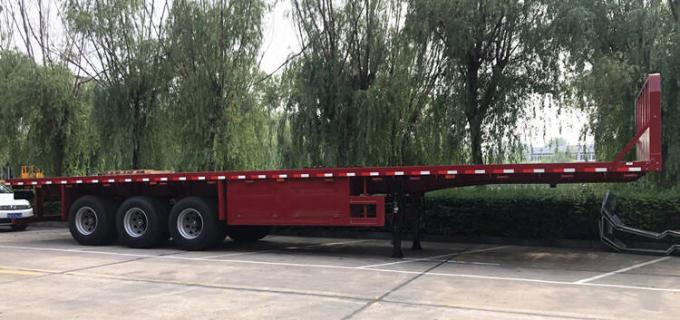

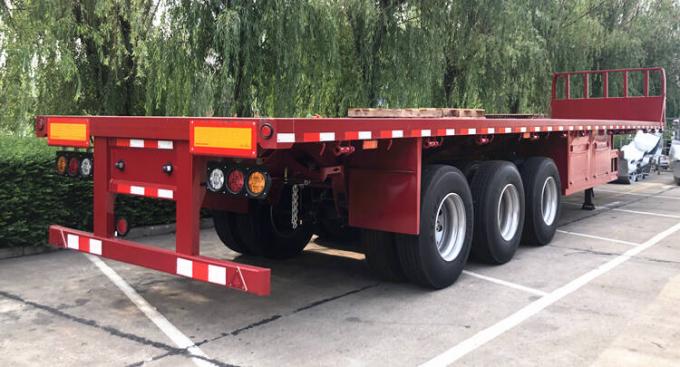

CIMC 40 foot flatbed trailer for sale
1. All parts use the products of foreign and domestic famous producers,are purchased, inspected and used strictly according to the requirements of quality system documents, and ensure good performance of 40 foot flatbed trailer for sale.
2. The front wall is useful to block the goods to drift when the 40 foot flatbed semi trailer carries the prolong subjects.
3. CIMC trailer use the 13 ton axle but the 16 ton 220 mm width brake pads which can improve the brake performance 20 %.
4. CIMC trailer use polyurethane paint, it has a strong adhesion, long-term use of non-fading, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle.
| Overall L*W*H | 12500*2500*1530mm |
| Payload | 60 tons |
| Container lock | 12 pcs |
| Axles | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
| Tire | 12 units |
| Brake system | WABCO brake system with dual brake chambers and emergency brake valve |
| Suspension | Mechanical / airbag / bogie suspension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand |
| Accessories | Tool box , spare tire carrier |
