Size: 10000*2500*4000mm
Volume: 45Cubic metre
Suspension: Mechanical / Air Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
The main assembly of the pneumatic sand trailer is composed of a tank body, a power system (diesel engine, air compressor), a gas circuit system, and a brake system.
At present, the design of the fluidized bed in the tanks of CIMC pneumatic cement tanker is scientific and the layout is reasonable, which can effectively shorten the discharge time and reach 1.4T / min. The volume utilization rate of the tank is improved, and the residual ash rate is reduced, and the residual ash rate is 0.2%.

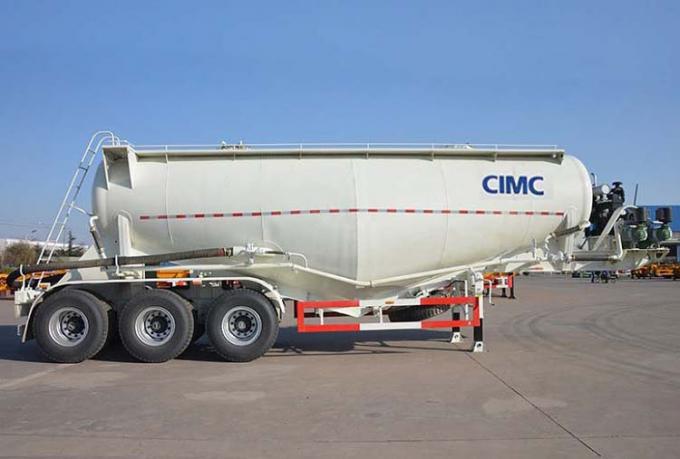

CIMC 3 axle bulk cement tanker trailer

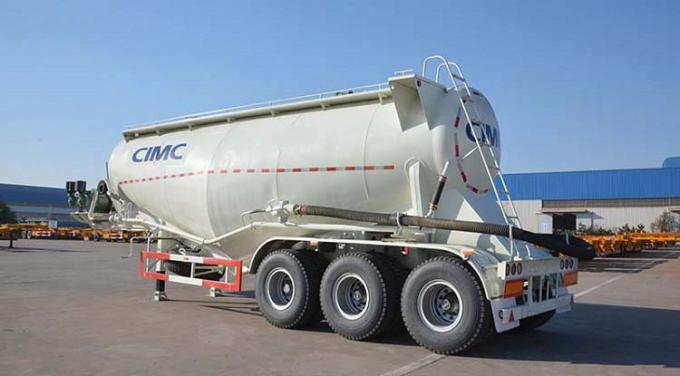

CIMC pneumatic sand trailer for sale
1. The frame is the main body of the pneumatic sand trailer. It welds two longitudinal beams and many beams into a frame structure and then forms a resistance welding with the tank body.
2. Pneumatic cement tanker adopts domestic famous brand oil-free swing bar type single-cylinder or double-cylinder air compressor to provide compressed air for discharging, the rated working pressure is 0.2Mpa;
3. Brake system: The pneumatic bulk tanker adopts a dual-pipe inflatable brake system.
The service braking system mainly consists of palm joints, air supply pipelines, control pipelines, emergency maintenance valves, air storage tanks, energy storage brake chambers, and wheel brakes.
| Dimension: | 10000*2500 *4000mm |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | JOST |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
