Suspension: Mechanical / air / bogie suspension
Landing gear: Heavy Duty Landing Gear
Loading capacity: 30T~80T according to your requestment
Braking system: WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Box semi trailer has the function of availability and high protection of cargo. These trailers are fully closed and sealed. Therefore, freight is protected from any external influence.
So this box trailer is one of the most commonly seen on the roads.
Enclosed van trailers are used for moving non-perishable food and beverages, household goods, clothing items, plastic, and building products.

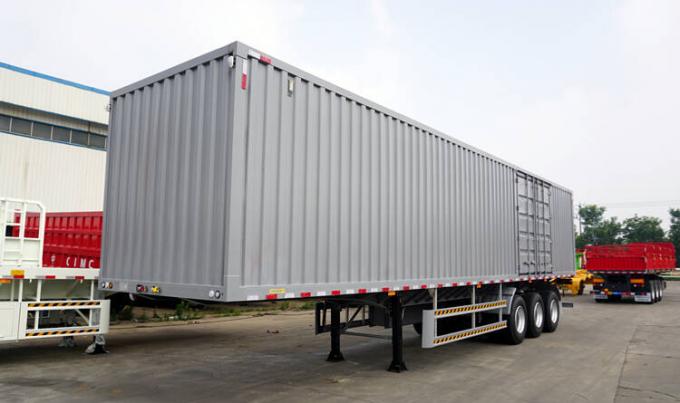

CIMC 3 axle cargo transport box semi trailer for sale
| Dimension | 13000mm*2500mm*4000mm |
| Load Capacity(T) | 60T |
| Axle | 3 axles |
| Tire | 12 units |
| Suspension | Mechanical suspension |
| King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg | JOST brand |
| Main beam |
Height: 500mm Upper Plate: 14mm Middle Plate: 8mm Bottom Plate is 16mm; Material: Q345B Steel |
| Side beam | 16mm or 18mm steel channel(Material: Q235steel) |
| Brake chamber | WABCO |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Receptacle | 7-pin Socket (for 7 wire harness) |
|
Semi Trailer Surface Coating |
Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats |
Dry van trailers are versatile in terms of freight shipments, both for local and over-the-road routes.
Enclosed van trailer is used for moving bluk cargo, include non-perishable food and beverages, household goods, clothing items, plastic, and building products.
They are the most frequently used equipment type due to their versatility to hold a variety of different products.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
The enclosed van semi-trailer is a semi-trailer with a beam-through structure and a closed side design for the upper part, which can effectively reduce the lateral risk when the vehicle is traveling at high speed, reduce energy consumption, and has a strong bearing capacity. The advantages of high safety factor, reasonable design, sturdiness and durability.
According to the frame structure, it can be divided into straight beam type and gooseneck type. The straight beam semi-trailer has large loading space and high center of gravity; the gooseneck semi-trailer has a low center of gravity and good vehicle stability.
