Suspension: Mechanical / air / single point suspension
King pin: 2"(50mm)or3.5"(90mm) Traction Pin
Function: cargo transporting side wall semi trailer
Axle: FUWA or BPW brand
The sidewall trailer of suspension system is a three-axis leaf spring suspension, which is used to support the load and has the function of absorbing driving vibration and so on.

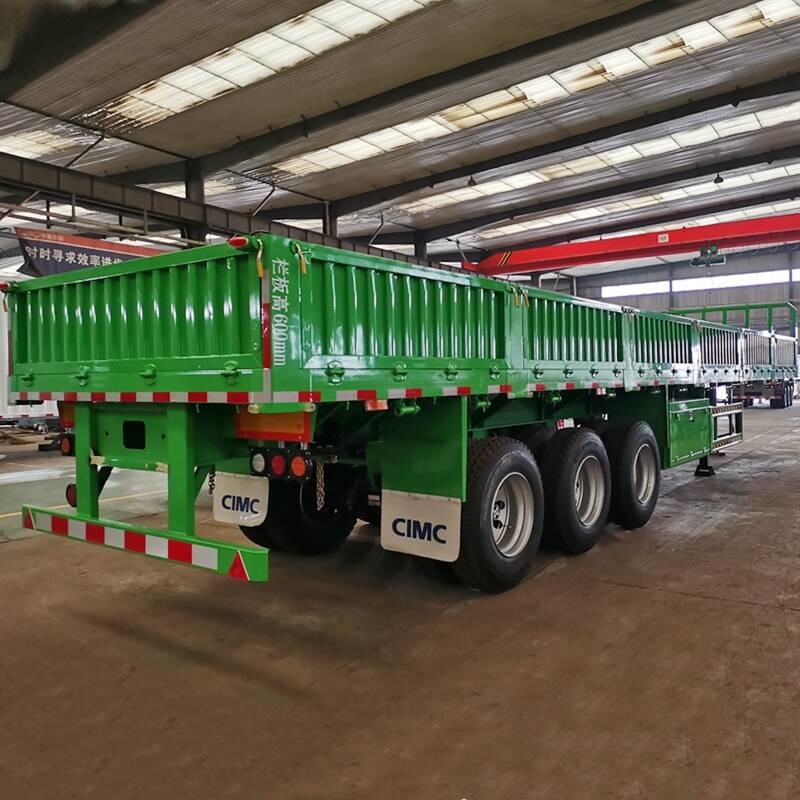

The CIMC 3 Axle 50T Cargo Trailer With Sidewall is widely used to transport containers, pipe, steel, lumber, heavy equipment, and any other item that would be difficult to load into the back of a trailer.
The 3 axle dry cargo trailer is mainly used for transporting steel, timber, stone, and other cargo goods. The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super high.it have wide applicability.
It consists of a screw rod transmission mechanism, a bevel gear transmission mechanism, a two-speed reduction box, a transmission rod, an operating handle, and the like.
The rear of the frame is equipped with brake lights, turn signals, parking lights, reversing lights, license plate lights, fog lights and triangular reflectors, and front and side lights with front position and width lights, side marker lights, front right Equipped with ABS indicator. The voltage of various lamps is DC 24V.
Tri Axle Cargo Semi Trailer
3 axle cargo trailer
dry cargo trailer for sale
50T Side wall semi trailer
|Bottom Platform:||3mm-thick checkered plate|
|King Pin:||JOST brand 2.0 or 3.5inch(bolted or welded type)|
|Support leg:||JOST brand|
|Suspension:||Airbag / Mechanical / Bogie suspension|
|Tires:||12.00R22.5/315 80R22.5(Specially designed and for oversea markets)|
|Electrical System:||24-volt lighting system|
|1.Electrical system: The drop side semi trailer is equipped with an international electrical system that is compatible with the tractor. There are electrical connector sockets on the front beam of the frame.|
|2.Suspension system: Suspension device support is welded on the back and the lower part of the longitudinal beam and support device support is provided on the lower front part.|
|3.Axles and wheels: Three axle assemblies of the same structure are installed under the suspension system.|
|4.Support leg: In order to make the semi-trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.|
