Function: Bulk cement transporting semi trailer
Size: 9500*2500*4000 mm
Suspension: Mechanical / Air Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
Cement bulker is suitable for the transportation of powder dry materials such as fly ash, cement, lime powder, ore powder, aluminum powder and other particles. All bulk tanker trailer will carry out pressure test and metal flaw detection test after production to ensure good tightness of the tank.
CIMC bulker trailer use of wear-resistant high-strength steel to make the powder tanker, the material is resistant to high pressure and bumps, ensuring that the tank of the cement bulker trailer is very strong.Also known as bulk cement tanker trailer, have V type and W type.

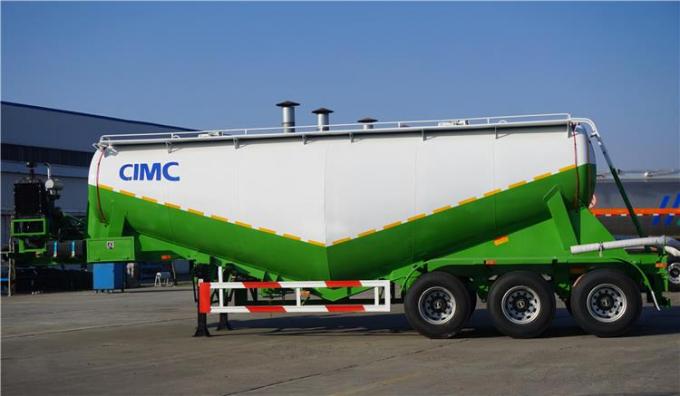

CIMC 3 axle cement bulker price

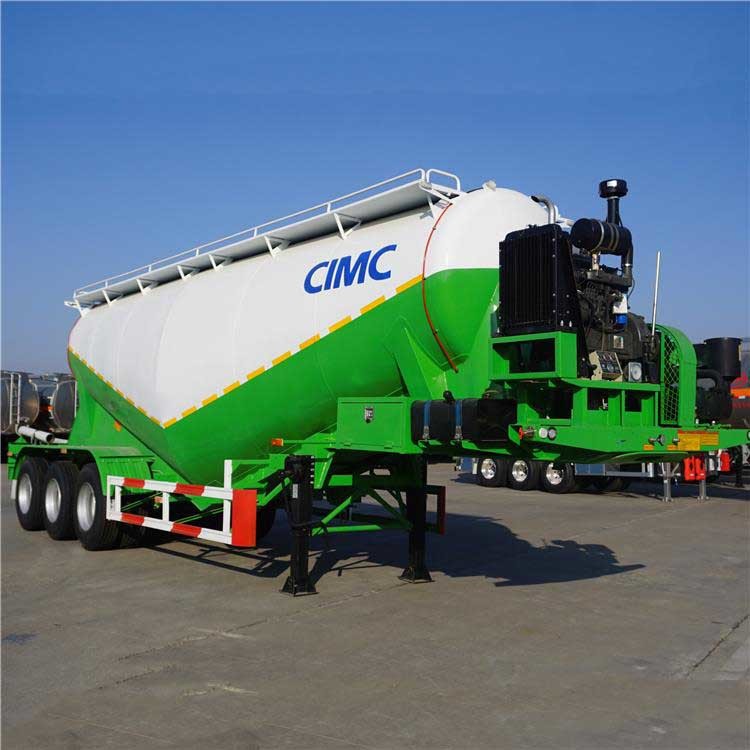

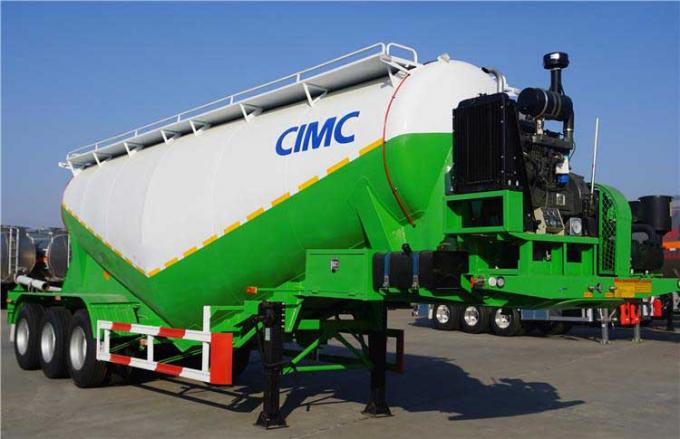

CIMC V shape cement bulker for sale
1.After the production, all the bulk cement tank trailer will go through the pressure test and metal inspection testing, to ensure a good sealing property of our cement tank trailer.
2. CIMC bulker trailer uses world-famous brand diesel-engine Weichai 4102 to help the air compressor work better.
3.The best quality 12 cubic air compressor in China can be selected from the fidelity or Bohai brand If you choose other brands of air compressor can be a little cheaper price.
4.CIMC cement bulker trailer adopts the latest advanced automatic splice plate machine to weld the steel plate with double-side, that ensure the high quality of welding seams, long service life.
| Dimension: | 9500*2500*4000 mm |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
