Material: aluminum standard carbon steel can choose
Max payload: 42000L fuel tanker trailer
King pin: 2"(50mm)or3.5"(90mm) JOST
Suspension: Mechanical / Air / Bogie
This type of bitumen storage tank is used to tranport special cargo such as sulfur, liquid phenol, and asphalt/bitumen. The bitumen storage tanks for sale has a long heat preservation duration.This is typically an insulated tank trailer with a heating device used in the transportation of bitumen.
The heating tubes are usually installed outside the tank to avoid polluting the liquid in transit. The tubes may pollute the liquid if they are broken.

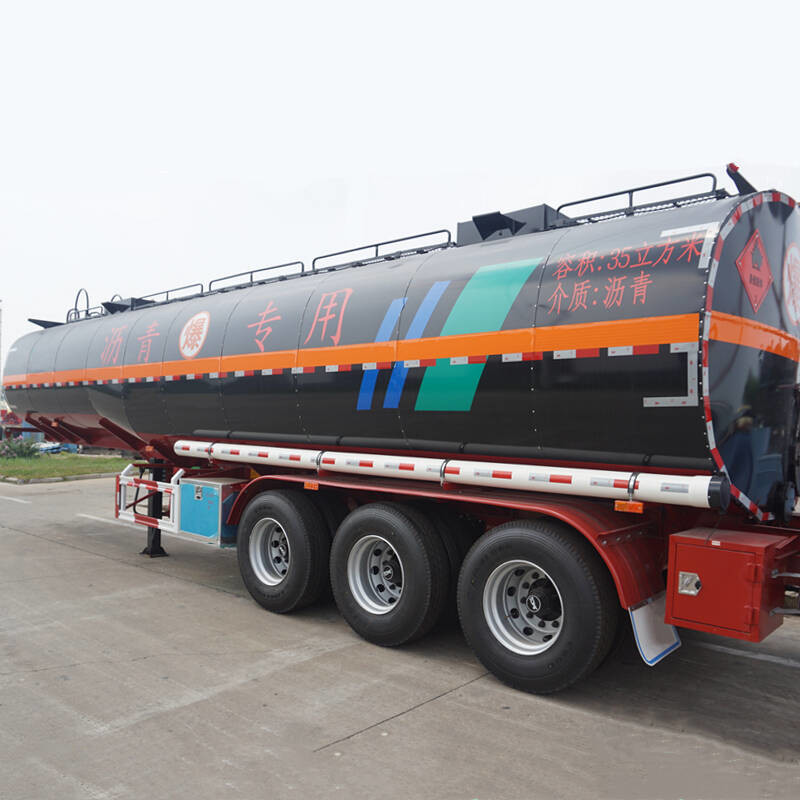

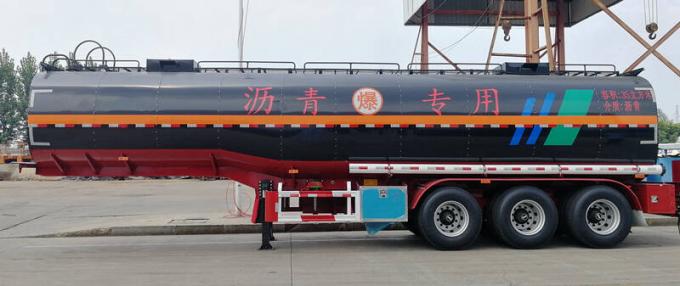

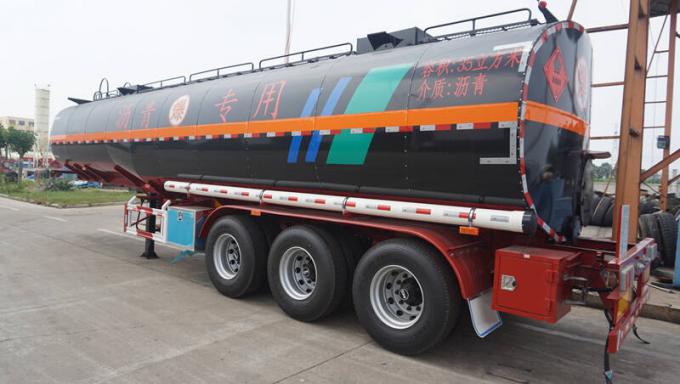

3 Axle bitumen tanks
bitumen storage tanks for sale
| 1.Jacketing System:There is a 0.04-inch jacketing on the bitumen tanks strong and durable enough to withstand many years of service. The jacketing system is exclusive that reduces the circumference seams.It also provides high heat retention properties. |
| 2.ABS parts:Signals from the speed sensors on the wheel are received and then processed through the electronic control unit (ECU). On condition that no wheel starts to lock, the ABS allows the usual air braking system to manage the braking. |
| 3.The Anti-Lock and Roll Stability Features:The anti-lock feature (ABS) of bitumen storage tank is purely an electronic system that tracks and controls the wheel speed on your trailer when braking. |
| 4.The Asphalt Pump:If you want, you can get the Asphalt pump which adds to this list as an optional feature. This is specifically made for asphalt with a 200 GPM holding capacity. It is made in such a way that there are no low spots that could trap asphalt in it. |
| 5.Discharge Features:The location of the valve body assures drainage. The load heat keeps this valve free. The tanker comes with a split rear bumper installed with a sloping discharge line. |
| Overall dimension: | 11500mm * 2500mm *3700mm |
| Transport: | bitumen |
| Tank Capacity: | 38000 liters |
| Bottom valve: | Aluminum API pneumatic bottom valve |
| Axles: | 3 axles |
| Suspension: | Heavy duty mechanical suspension |
| Tire: | 12 units |
| Discharging Pipe: | 4'' rubber pipe, 6m/piece, 2 pieces |
| King pin: | 2/3.5 inch |
| Landing gear: | JOST |
| Brake system: | 2 line pneumatic brake system |
| Electrical system: | Chinese standard 24V; 7 ways receptacle; LED lamps |
