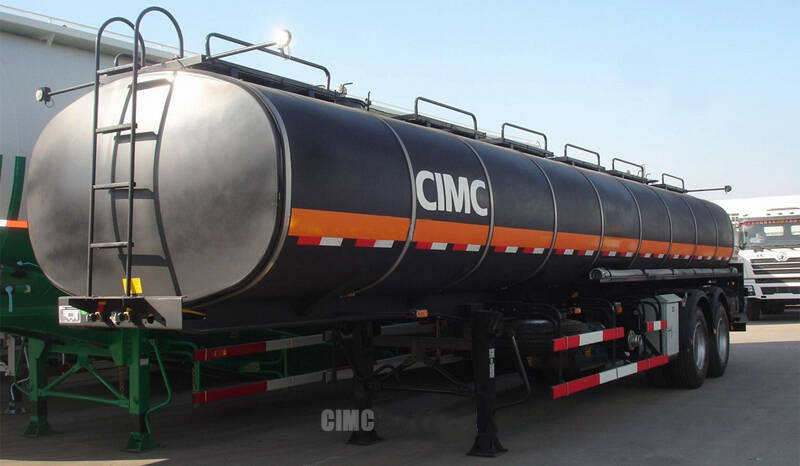

Name:Bitumen Storage and Transport Tanks
axle capacity:13ton 16ton 20ton 25ton capacity
type:3 axles bitumen tanker trailer
certification:ce ccc bv certification
compartment:1 3 5 compartments as the customer requirements
Bitumen tanker trailer is used to transport bitumen etc heavy oil materials. Customized service: 2 axles or 3 axles, 20m3 to 60m3 tank volume,spring/air/bogie suspension for your needs.
Main features of bitumen tanker traile
1>Advanced fuel heating system, so that the heavy fuel oil can be discharged without difficulties.
2>Reinforced ladder for cleaning and repairing oil tanker.
3>strengthened main beam structure
4>Light tare weight that provides great payload...better return on investment
5>Installed valve protection box, in order to prevent the leakage of transport medium from causing environment pollution and personal injuries
Overall dimension:11500mm * 2500mm *3700mm
Transport:bitumen
Tank Capacity: 38000 liters
Bottom valve: Aluminum API pneumatic bottom valve
Axles:2/3 axles
Suspension:Heavy duty mechanical suspension
Tire:8/12 units
Discharging Pipe: 4'' rubber pipe, 6m/piece, 2 pieces
King pin:2/3.5 inch
Landing gear:JOST
Brake system: 2 line pneumatic brake system
Electrical system: Chinese standard 24V; 7 ways receptacle; LED lamps
