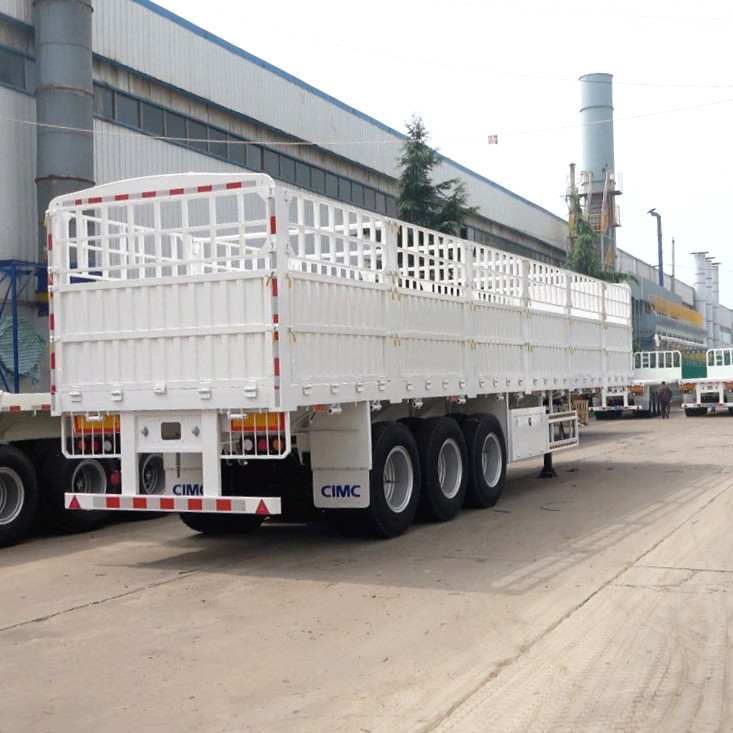

CIMC 3 Axle Fence Semi Trailer

Product description:

CIMC fence semi trailers are another commonly used type of equipment in the transportation industry . Fence semi trailer are used to deliver products like pipe , steel , lumber , bulker cargo and other items that would be difficult to load into the back of a trailer. 3 axle fence semi trailer is widely used in a various industries.

CIMC production the 3 axle fence truck trailer are noted for their highly robust structure steel, we can provide difference configurations of our flat bed semi trailer to meet your transportation requirement.

Features:

• Highly robust structure steel with tensile and high load capacity, 40 ton loading capacity .

• Heavy duty type mechanical spring suspsension for high loads requirements needs.

• Length and width of lowbed avaiable custom made



Specification:

L*W: 12500mm*2500mm

Sidewall Height: 1800mm

Max. Payload: <60T

Application: Coal/Cargo/Containers Loading

Material of the main beam : Q345 high strength steel

Bottom Platform: 3mm-5mm thick(according to the load capacity)

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Mechanical suspension or air suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system
