Dimensions:12100*2500*3900mm
Tank Capacity:50,000 liters 3 Axle Oil Tanker Trailer for Sale
Compartments:1 to 7 compartments, based on customer needs
Main Beams: Q345B steel fabricated I beams.
Axles:3 axles, 13T

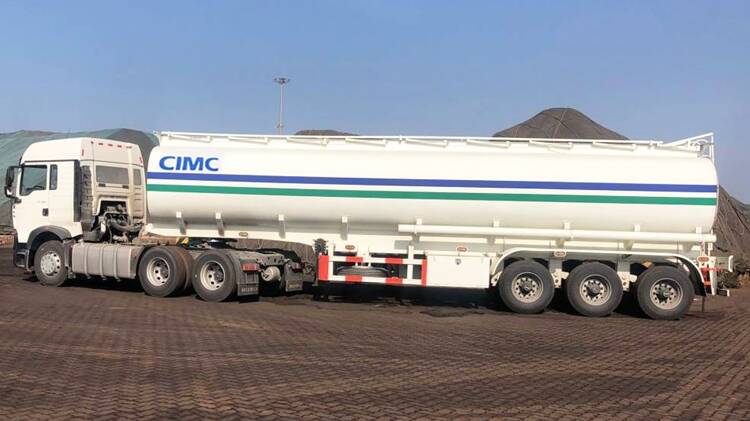

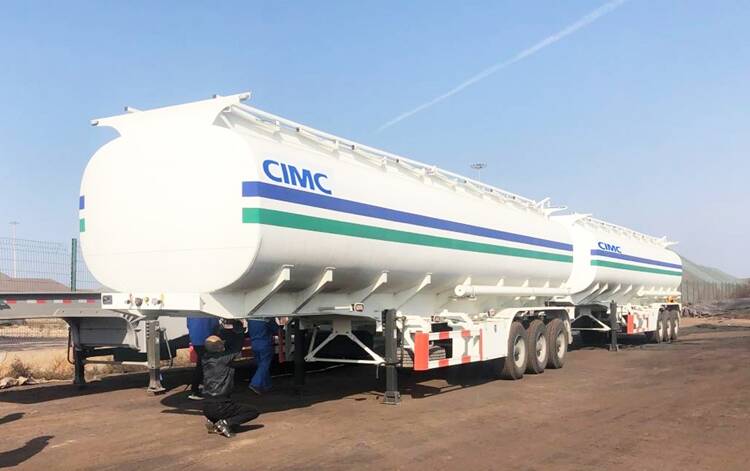

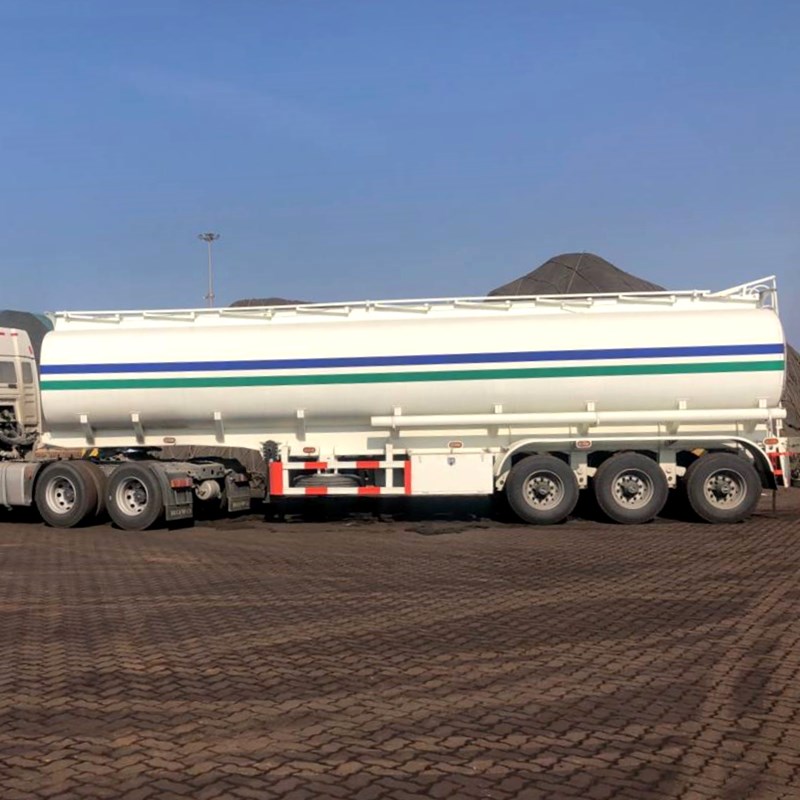

The best quality CIMC 3 Axle Oil Tanker Trailer for Sale can realize the mechanization of loading, unloading, transportation and storage, which not only saves the labor force but also saves the packaging materials and the transportation cost. CIMC 3 Axle Oil Tanker Trailer axles can be Fuwa / BPW with different tonnages by your need with price differences. CIMC 3 Axle Oil Tanker Trailer is used for liquid cargo transportation, such as Gasoline, Diesel oil, Crude oil, Lubricating oil and other liquid cargo.
The volume varies of CIMC 3 Axle Oil Tanker Trailer widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs. The suspensions can be Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. The CIMC 3 Axle Oil Tanker Trailer inside can be isolated compartments or single compartment by your needs.
CIMC 3 Axle Oil Tanker Trailer for Sale In Rwanda Sales price
Tri Axle Oil Tanker Trailer Manufacturer
Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)
Volume: 50000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
