CIMC 30CBM-45CBM Axle Tipper Trailer

CIMC 3 Axle Tipper Trailer Description:

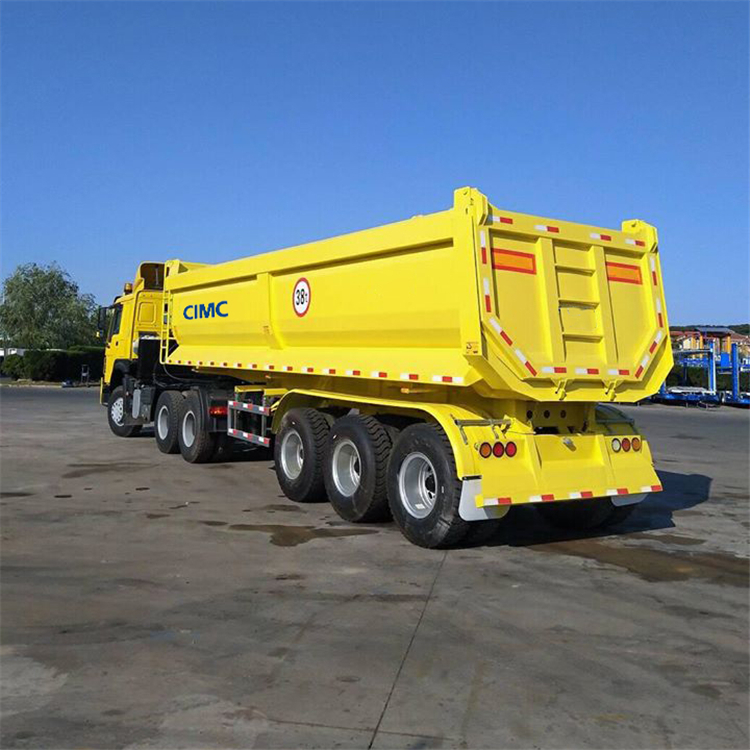

CIMC 3 Axle Tipper Trailer adopts high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t. CIMC 3 Axle Tipper Trailer equipped with reliable hydraulic HYVA cylinder. CIMC can customize the tipper trailers according to your special need, like U shape dump tipping trailer, end dump, side tipper, and container tippers including skeleton and flatbeds trailers. We use well-known brand axles, FUWA, BPW.

Another kind of light, medium and medium-sized ordinary self-unloading trailers used in highway transportation mainly undertake the transportation of loose goods such as sand, clay, coal and so on, usually used in conjunction with loaders.

Price of 3 Axle Tipper Trailer 44m3 for Mines

CIMC 3 Axle Tipper Trailer 44m3 for Mines

CIMC 3 Axle Tipper Trailer Specification:

Model: CIMC 3 Axle Tipper Trailer

Dimension: 11280mmx2495mm x3970mm ( inside dimension )

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Total Capacity: 38 Ton

Axle: 3 Axle 13T/16T, FUWA / BPW / CIMC Brand

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Hydraulic system: HYVA cylinder

Side wall thickness: 4 - 6mm

End plate: 8mm

Suspension: Mechanical suspension

Kingpin: 50#, 90#

Landing gear: JOST brand

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Braking system: WABCO
