Size: 14100*2500*4000mm
Function: Transport 20ft 40ft Container
Landing gear: Heavy Duty Landing Gear
King pin: 2"(50mm) or 3.5"(90mm) JOST

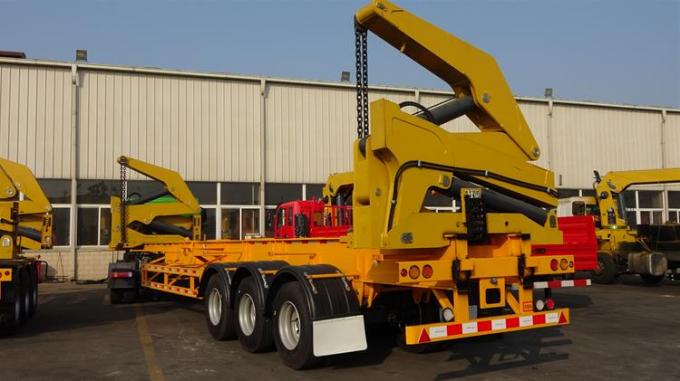

CIMC self loading container trailer is a semi-trailer which uses a swing lift at either end of the trailer, or tray to pick up, using the containers strong robust corner casts to offload.
CIMC self unloading container trailer does exactly what its title suggests.It loads and unloads from the side of the machine. Instead of the forks being located in front of the equipment like on a standard forklift, a sideloader’s forks are located on its side.
Container Side Loader Price
self unloading container trailer
self loading trailer for sale
1. Sideloaders don’t need to turn like standard forklifts,so they can drive up alongside the rack or the truck and easily unload and load from the side.The self unloading container trailer can take place on the ground, reducing the risk of injury.
2. A flatbed allows the load to be stabilized, ensuring safer movement.When transporting a sidelifter by road, operators can easily load containers into trailers without the help of cranes.This means that, in addition to transporting their own containers, a Sidelifter can load and unload entire container convoys without the need to relocate independent heavy equipment.
| Overall dimension: | 14100mm*2500mm*4100mm |
| Loading capacity : | 37ton |
| Axles: | 3 axles |
| Tire: | 12units,12R22.5 |
| Suspension: | Heavy duty mechanical spring suspension |
| King pin: | 90# |
| Langing gear: | JOST |
| Brake system : | WABCO |
| Electical system : | 24V , LED lights |
| Power source: | PTO and Japenese Kubota diesel engine |
| Tow Chain: | Igus (imported) |
