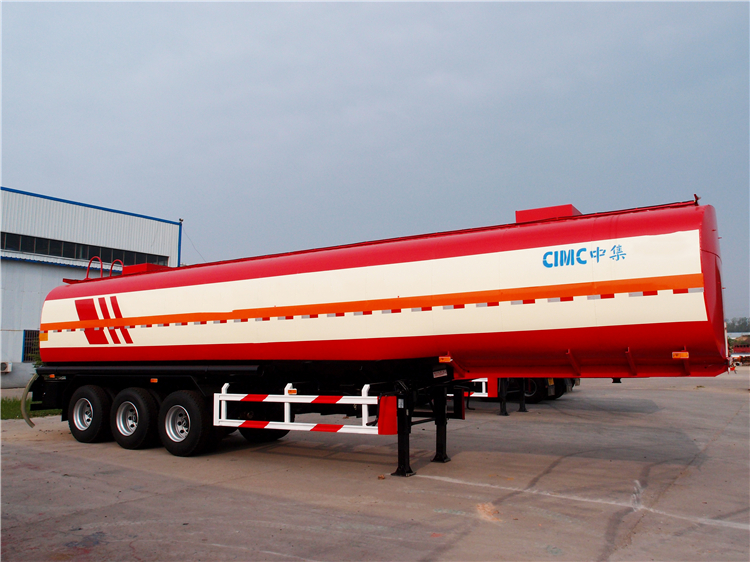

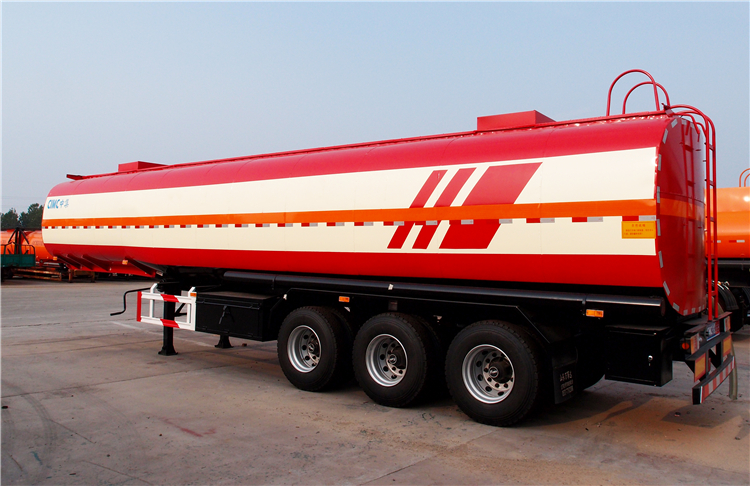

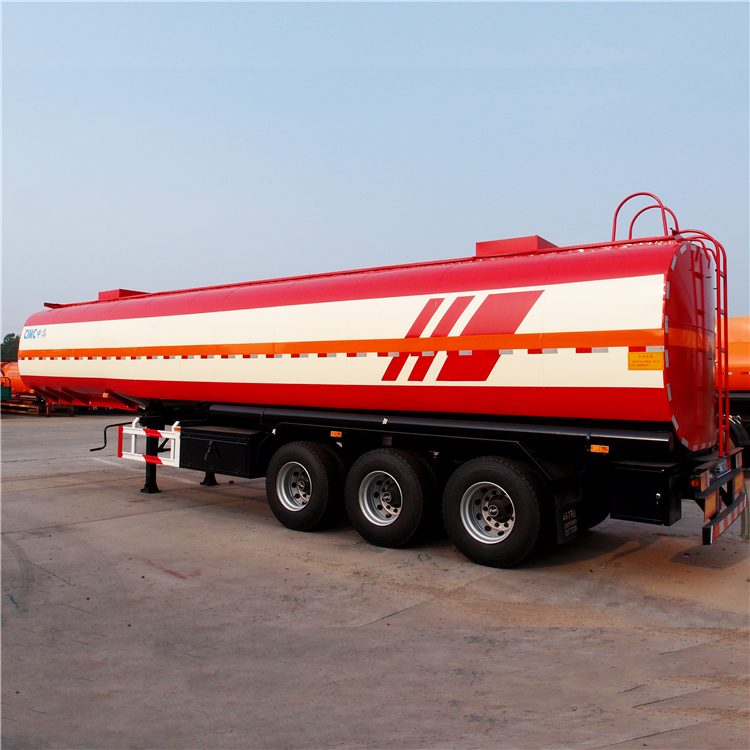

40CBM Petrol Tanker Trailer

Description:

CIMC 40CBM Petrol Tanker Trailer uses a professional tank rolling machine. One side in shape by two sides technology ensures that the welding without defects, oil leakage does not occur, and the safety factor of the tanker trailer is improved.

The 40CBM Petrol Tanker Trailer chamber is separated into several sections by upright walls or partition walls. These walls prevent the formation of the petrol wave when the tank trailer is driving on a bumpy road. At the lower end of the wall,through-holes are drilled to reduce the impact and enhance the tank strength.

CIMC 40CBM Petrol Tanker Trailer for Sale In Vietnam Ho Chi Minh City

Tri Axle Petrol Fuel Tanker Trailer Price Manufacturer

Optional:

1. Compartments is done as you required.

2. Mechanical and airbag suspension are optional.

3. Foot valve to avoid fuel out leakage.

Specification

Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 40,000 liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 4 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
