Size: 12400*2500*1550mm
Material: Carbon steeel
Suspension: Mechanical / Air / Bogie
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC 40ft container Terminal Semi-trailer is specially designed for shuttling between shore crane and container stacking with special features that facilitate easy container loading and maximize the productivity of the terminal operation.
The 40ft skel trailer for sale is an economically feasible and practical trailer to use. The truck chassis can easily load and unload high-weight containers. This terminal trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.
CIMC Yard terminal trailer includes 20, 40, 45 foot and other types. It is dedicated to transporting containers. It contains two kinds of skeletal trailer for long distance transportation and terminal trailer for port transportation.

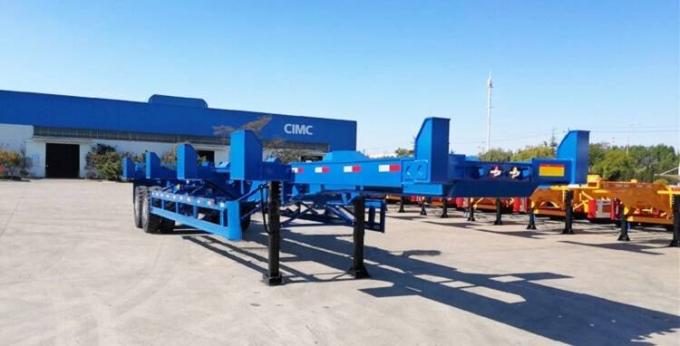

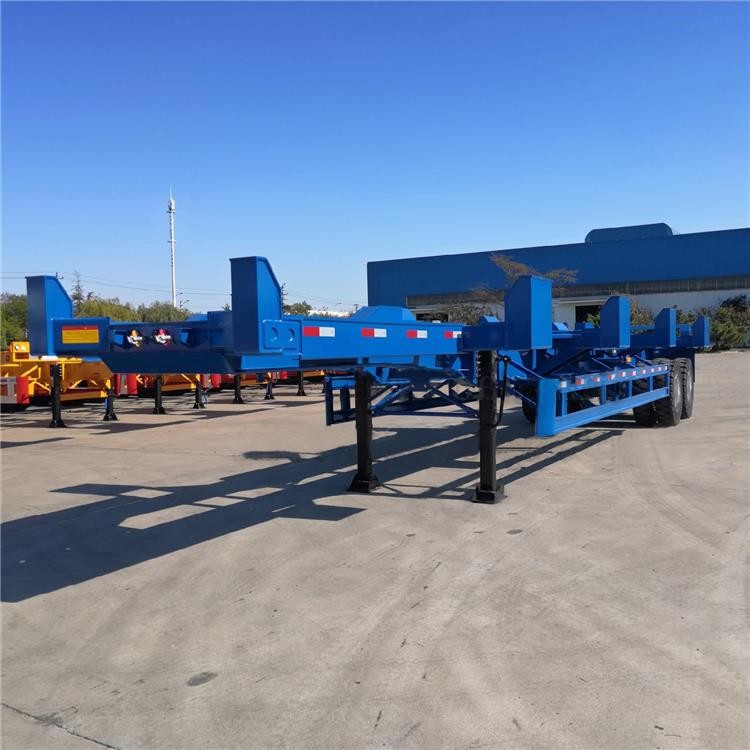

CIMC 40ft skeleton trailer for sale

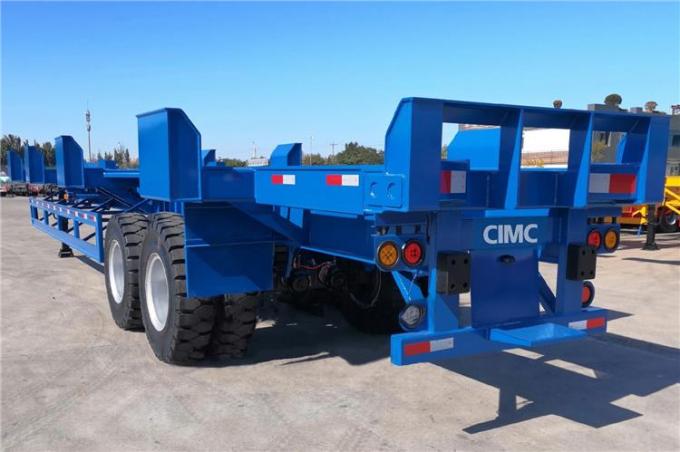

CIMC 2 axle yard terminal trailer
1. CIMC 40ft container trailer was built on designing and manufacturing the lightest, strongest, and most durable in the industry.
2. CIMC Skeleton trailer uses factory-made, wear-resistant tires. On Chinese highways, CIMC tires can reach more than 300,000 kilometers.
3.The 40ft skel trailer has multiple transport functions and can load containers of different feet, with a loading capacity between 40 tons and 80 tons.
4. Terminal semi trailer is one kind which is specifically worked in terminal port for load and lifting containers precisely and quickly by welded the guide block, bottom block and indicated bar.
5. The transport 40ft skeleton trailer for sale are specially designed, and their special functions help to easily load containers and maximize the efficiency of terminal operations.
| Type | Terminal port trailer |
| Overall dimensios | 12400x2500x1550 mm |
| Loading weight | 30ton-50 ton |
| Container twist lock | 8/12 pcs |
| Main beam | Q345B steel |
| Side beam | 16 U shaped steel or I shaped steel |
| Axle brand | FUWA/BPW/CIMC brand |
| Traction pin | 2” or 3.5” |
| Landing gear | JOST brand optional |
| Suspension system | Mechanical suspension, air suspension is optional |
| Tire | 12.00R22.5 Triangle brand tires, others tires optional |
| Brake | 6 big chamber brake system |
| Tool box | 1 unit |
| Side marker lamp | LED type |
| Voltage | 24V |
