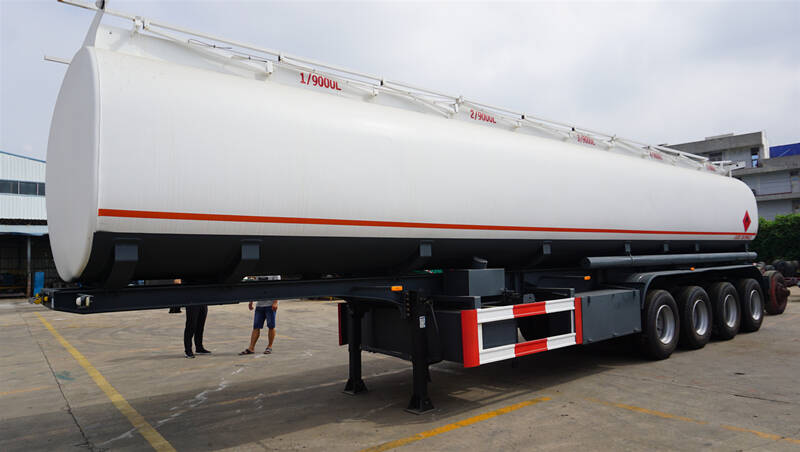

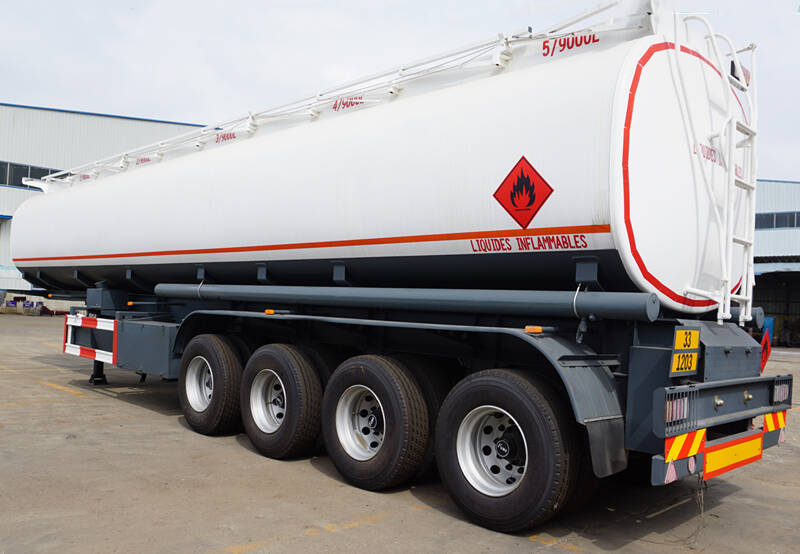

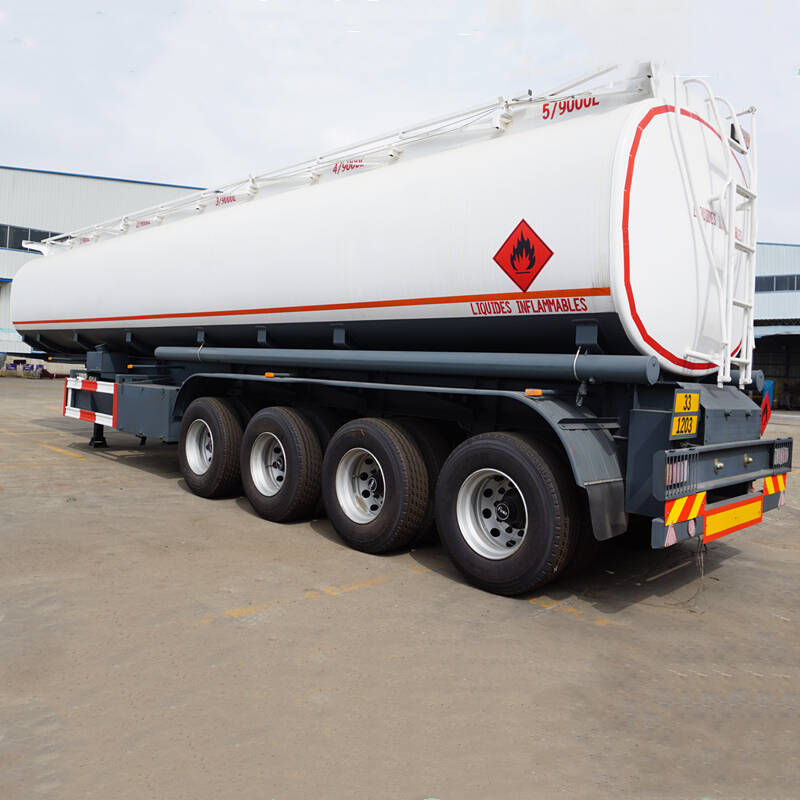

50000L Fuel Tanker Truck Trailer

Product Description:

CIMC is a professional manufacturer of 50000L Fuel Tanker Truck Trailer. CIMC 50000L Fuel Tanker Truck Trailer the best quality fuel tanker, it can realize the mechanization of loading, unloading, transportation and storage, which not only saves the labor force, but also saves the packaging materials and the transportation cost.

CIMC product the high quality 33000 liters Fuel Tank Trailer. It normally for transport gasoline, light diesel oil, petroleum widely used in various transportation units, gas stations and other logistic industries. CIMC can provide Carbon-steel, Stainless steel, Aluminum alloy material Fuel Tanker with loading capacity from 30 cbm to 100 cbm according to customers demands.

CIMC 50000L Fuel Tanker Truck Trailer for Sale In Malawi MWBLZ

Fuel Tanker Truck Trailer Manufacturer

Optional:

1. Compartments is done as you required.

2. Mechanical and airbag suspension are optional.

3. Foot valve to avoid fuel out leakage.

Specification

Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 50,000 liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 4 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
