50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer

50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer

18500 USD

King pin: 2"(50mm)or3.5"(90mm) JOST

Function: Transport  Sand and Stone Transport

Tire specification: 12pieces

Brake system: WABCO Valve

SKU: 50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer
GTIN: 6975766103040
MPN: ZJV9505098
Brand: CIMC

50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer

Product Description:

The rear tipping semi-trailer train is mainly composed of a tractor and a semi-trailer. The U Type Tipper Semi Trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.

Operate the tractor tipper trailer transmission power take-off device to drive the hydraulic pump.The hydraulic pump sucks the hydraulic oil in the hydraulic oil tank through the low-pressure oil inlet pipe and generates high-pressure oil for output.
The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train.

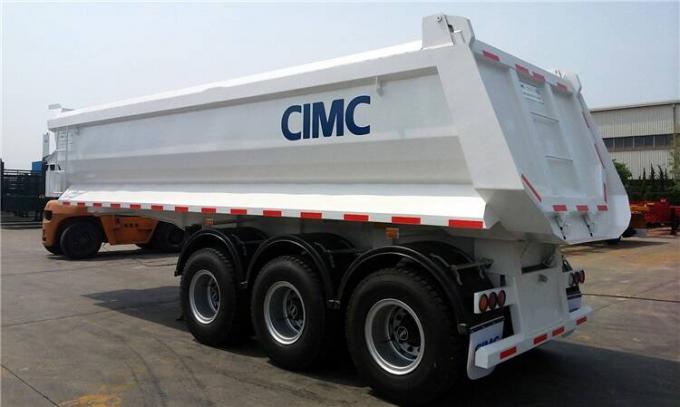

50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer

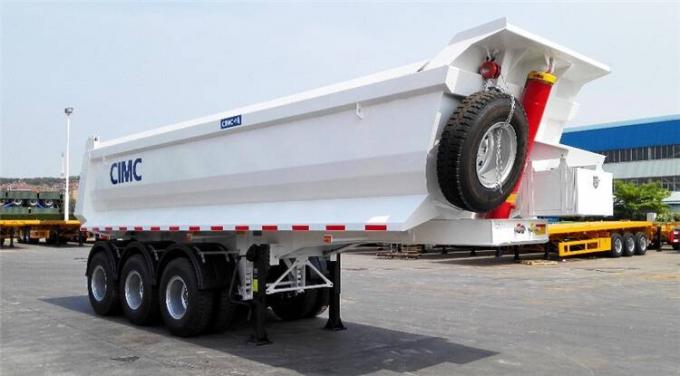

U Type Tipper Semi Trailer For sale

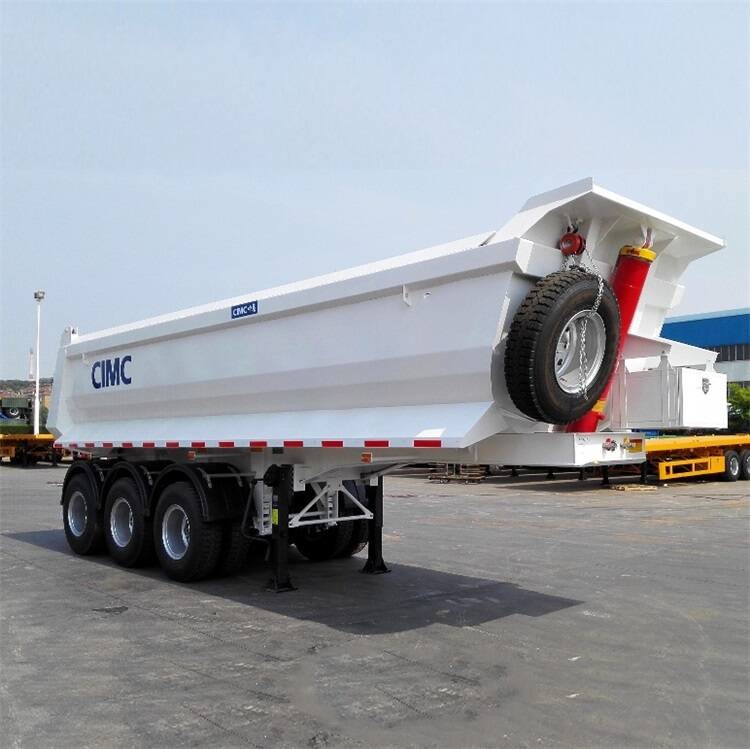

50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer

Tipper semi Trailer Price



The Feature of Tipper semi trailer:

The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.

The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the hydraulic oil cylinder.



Main Specification:

Overall dimension: 9000*2500*4000mm
Volume: 40-60T
Axles: 3 axles
Suspension: Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire 12 units
King pin 90#
Landing gear JOST
Brake system WABCO
Electrical system

24V, LED lights
