Size: 11000mm*2500mm*3700mm
Material: Stainless Steel
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
Description:
CIMC 3 axle 40000 liters tanker trailer for sale uses a professional tank rolling machine. One side in shape by two sides technology ensures that the welding without defects, oil leakage does not occur, and the safety factor of the tanker trailer is improved.
The road tanker chamber is separated into several sections by upright walls, or partition walls. These walls prevent the formation of the petrol wave when the tank trailer is driving on a bumpy road. At the lower end of the wall,through holes are drilled to reduce the impact and enhance the tank strength.

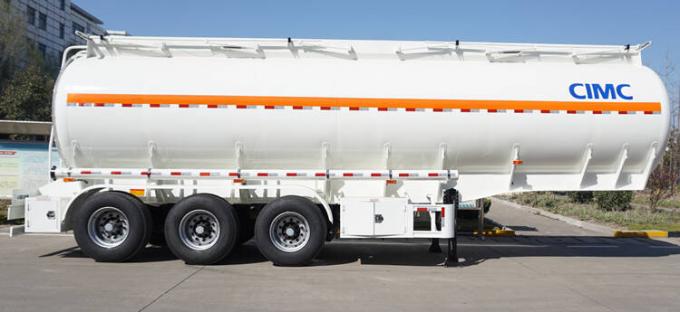

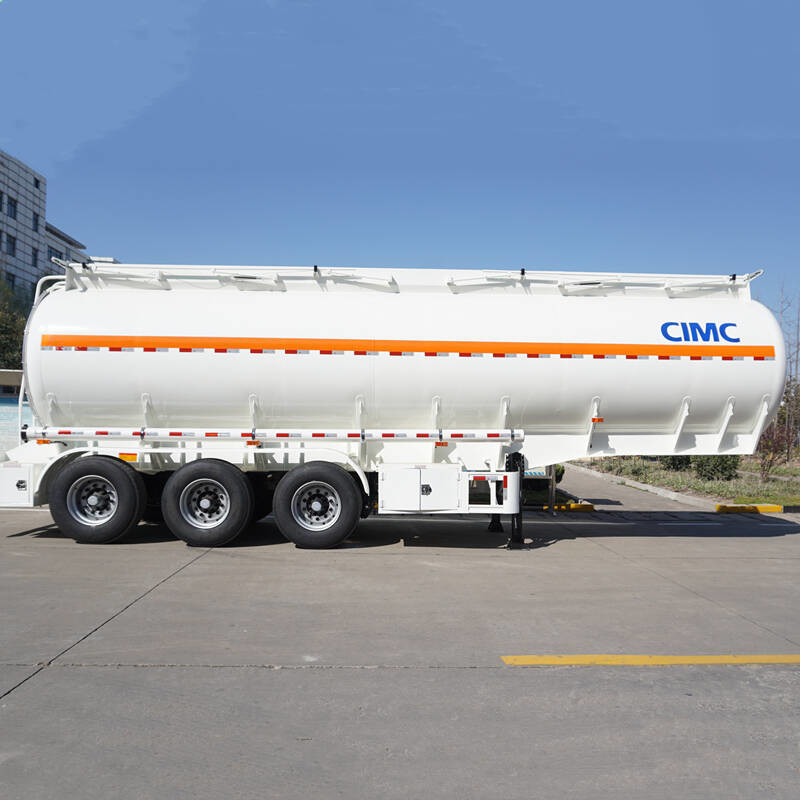

CIMC 40000 liters road fuel tankers for sale

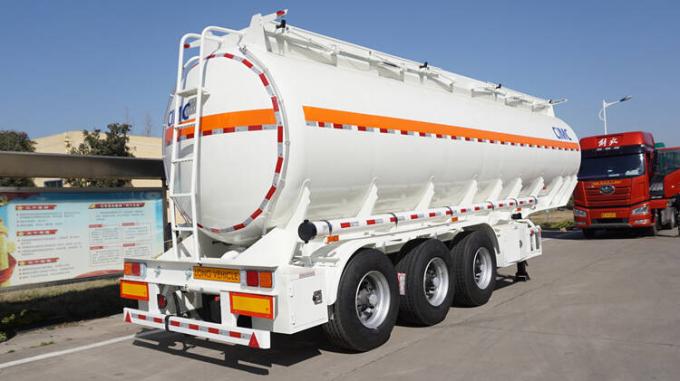

CIMC 3 axle fuel tanker trailer for sale

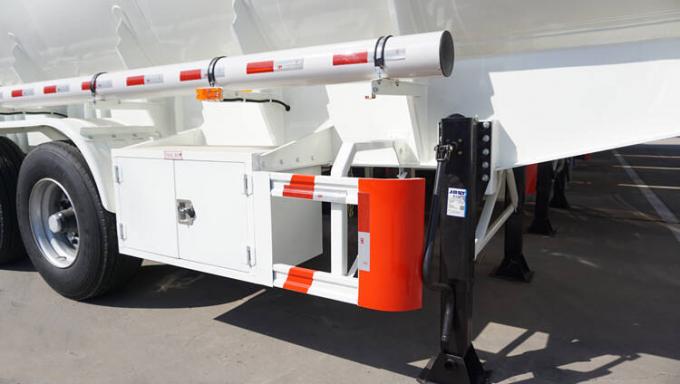

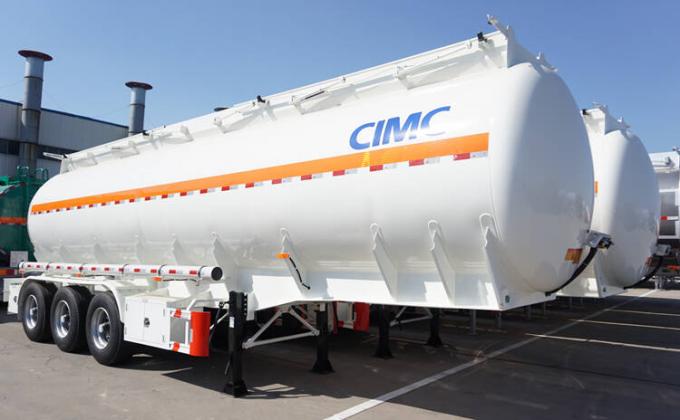

CIMC road tanker trailer detail display
| Dimension | 11000mm*2500mm*3700mm |
| Volume | 40000liters |
| Application | transport Fuel, Oil, Diesel |
| Tank Body | |
| Material | Stainless Steel road tanker |
| Tank body and separate compartment plate | 6mm |
| Compartments | 1 to 7 compartments, based on customer needs |
| Manhole cover | Carton steel or Aluminum alloy API manhole cover 500mm (diameter) |
| Discharge valve | Diameter is 3 or 4 inch |
| Chassis | |
| Axles | 3 units, FUWA/BPW/CIMC/other |
| Tire | 12 units, Brand can be optional |
| Landing Gear | JOST brand |
| King Pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Suspension | Mechanical suspension or air suspension |
| Brake System | WABCO |
road fuel tankers for sale should have the following basic conditions:
1. The relevant certificates such as the vehicle driving license and the hazardous chemicals permit are complete.
2. The actual loading capacity shall not be greater than the approved loading capacity.
3. Equipped with two dry powder fire extinguishers over 4 kg, the location should be reasonable and easy to use.
4. The diesel fuel trailer is qualified by the qualified inspection department. The tank body and accessories are good and effective, with no damage or deformation affecting the strength, no serious corrosion, and no leakage.
5. The tank body must be provided with an electrostatic grounding terminal, and an obvious mark is painted on the terminal; install a conductive rubber towing zone, and keep it on the ground after filling with oil.
6. Install an effective fire cap on the exhaust pipe, and the circuit system should have a device for cutting off the main power supply.
