Material: Q345B
Suspension: Mechanical Suspension
Axle: FUWA/BPW Optional
Landing gear: JOST / FUWA etc.
Lowbed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. And the lowbed transport part has no sidewalls.
Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment.Benefit from the low bed design, 3 axle low bed trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.
Lowbed,also known as a double drop,low loader,low bed,or a float depending on what part of the world you are in, is a semi-trailer with a drop deck.
A lowboy trailer has two drops in the deck, the first drop is right behind the gooseneck and the second drop is right before the wheels, this allows the 3 axle low bed trailer to sit extremely low to the ground. The drop in the trailer is designed to allow the ability to ship oversized items or equipment that exceeds normal height restrictions for transportation (which is typically any freight over 8′ high).
Step Duck Trailer For Sale
lowbed truck for sale
lowbeds for sale

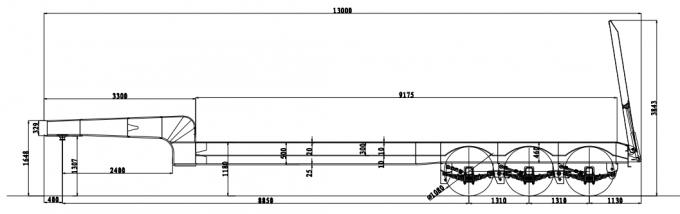

Draw of lowbed trailer
lowbeds for sale
All semi trailer will undergo rigorous testing before delivery to ensure the quality.
We have professional technicians to operate. In addition, a layer of wax will be sprayed on the semi-trailer to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture, so that it is foolproof
The process model designed by the low loader is combined with the fence structure. The user type design is reasonable, satisfying the load conditions to fully reduce the weight, the structure is simple, and the disassembly is convenient. It reduces the investment cost for the user and creates greater profit value.
| Brand: | CIMC 3 Axle 40Ton Lowbed Loader Trailer Truck |
| Dimension(mm): | 13000*3000*3400mm |
| Loading capacity(T): | 40-60T |
| Axle: | 3 axle,13T/16T, FUWA / BPW / CIMC/Other Brand |
| Tire: | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension: | Mechanical suspension or air suspension |
| Kingpin: | 90# |
| Landing gear: | JOST brand |
| Brake system: | WABCO |
| Light: | LED light |
| Electrical System: | 24-volt lighting system |
| 1. The continuous improvement of structure makes it much accord with practical loading and unloading requirements. |
| 2. The structure of low bed trailers can be handled the tough conditions of abnormal load transport. It has a heavy duty design and a lower gravity center, which make the transport safer. |
| 3. The lowbed trailer can be custom-built as your requirements. The payload of low bed trailers from 30 tons to 200 tons. It can be designed to a straight beam type(flat cargo deck) and Concave Beam type(tire exposed)with hydraulic and spring ramps. |
|
4. The center of gravity of low bed trailer is lower, the stability and safety is better, have stronger ability to transport over height cargo and go through overhead obstacles. |
