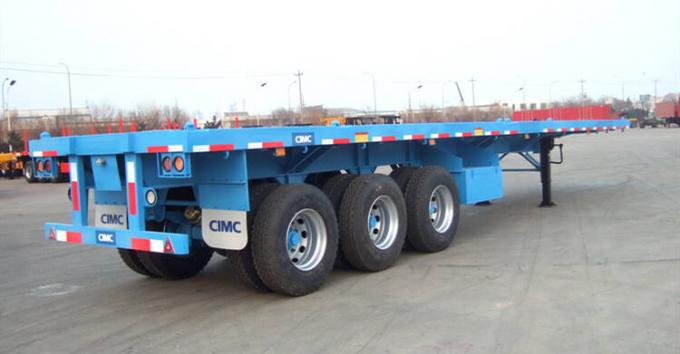

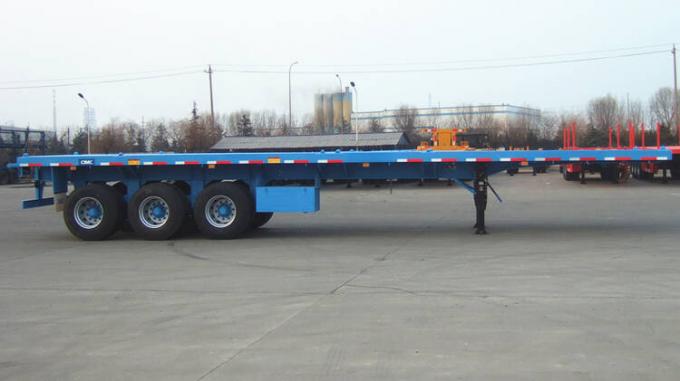

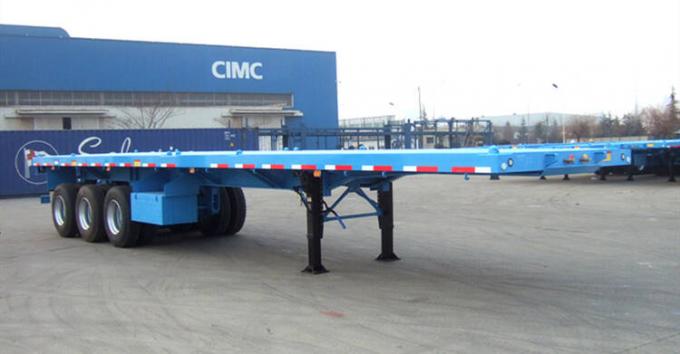

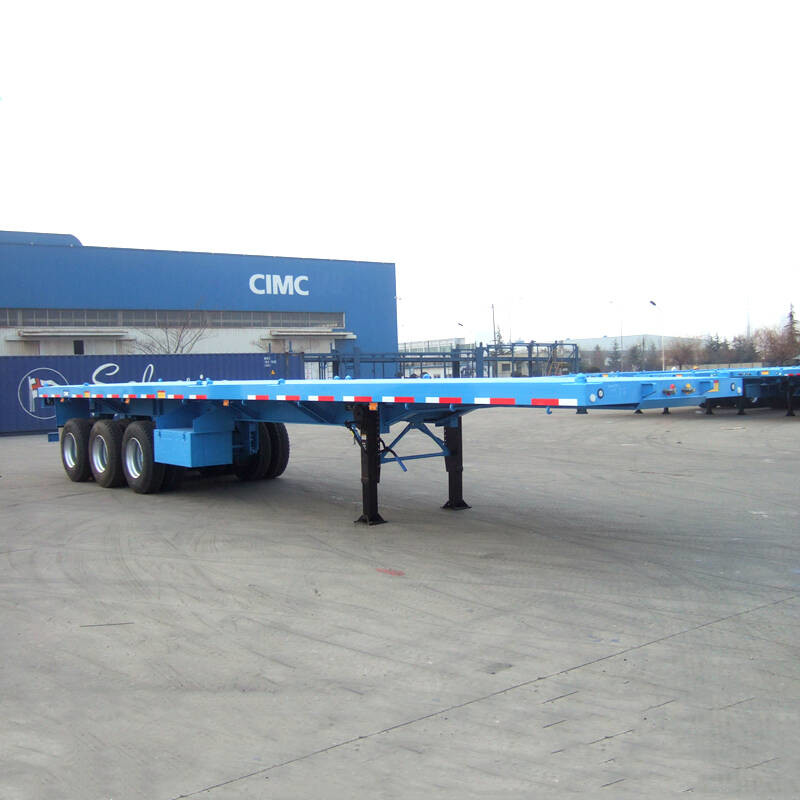

40ft Container Flatbed Trailer

CIMC 3 Axle 40ft Container Flatbed Semi Trailer Description:

CIMC 3 axle 40ft flatbed trailer is another commonly used type of container and equipment in the transportation industry.

This 3 axle flatbed trailer is very popular in the African market because of its multi-function to carry container, bulk cargo, bagged cement and the other kind of goods. This 3 axle flatbed semi trailer can bear a 60 tons payload.

Flatbed trailer manufacturers - CIMC trailer is widely exported to South-east Asia, Middle-east, and Africa market.

CIMC 3 Axle 40ft Container Flatbed Semi Trailer for Sale in Namibia

CIMC 3 Axle 40ft Container Flatbed Semi Trailer for Sale in Namibia

Specification of flatbed trailer:

Overall L*W*H: 12,500×2,500×1,530 mm

Payload: 60 tons

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical / airbag / bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Accessories: Tool box , spare tire carrier

Advantages:

1. We adopt premium steel material, advanced technology and strict production to our flatbed trailer.

2. The flatbed container semi trailer painted by advanced painting system, the painting effect can meet Swedish Sa2.5 class marine anti-corrosion standards.
3. Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.

4. All spare parts used by CIMC are world famous brands to ensure the service life of flatbed semi trailers.

The function of a flatbed trailer is made possible through its structure’s design and manufacture.Basically, it is a transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires.It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another.Use platform trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them.
