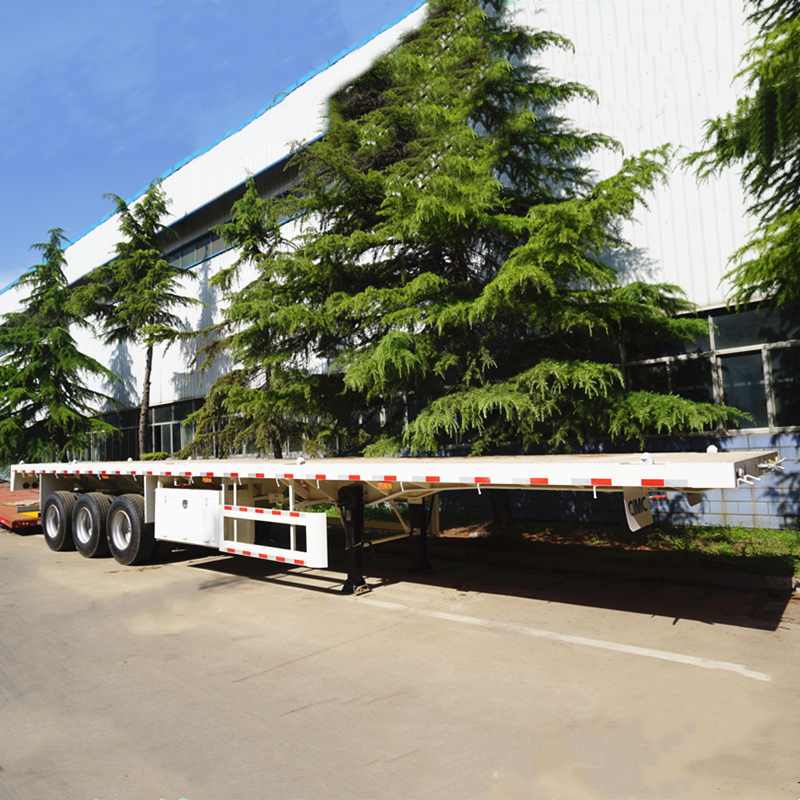

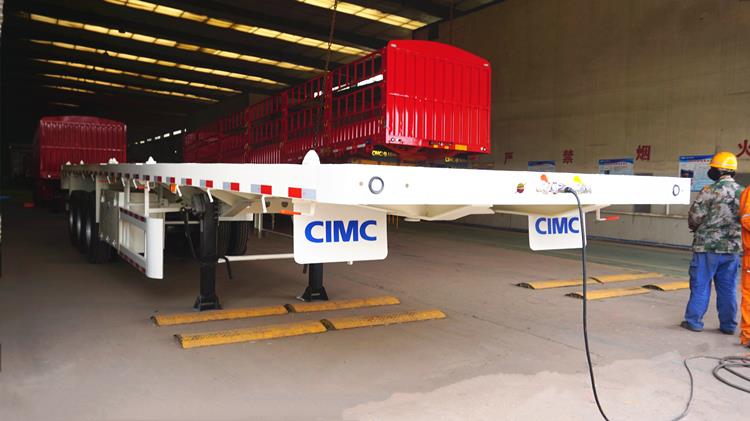

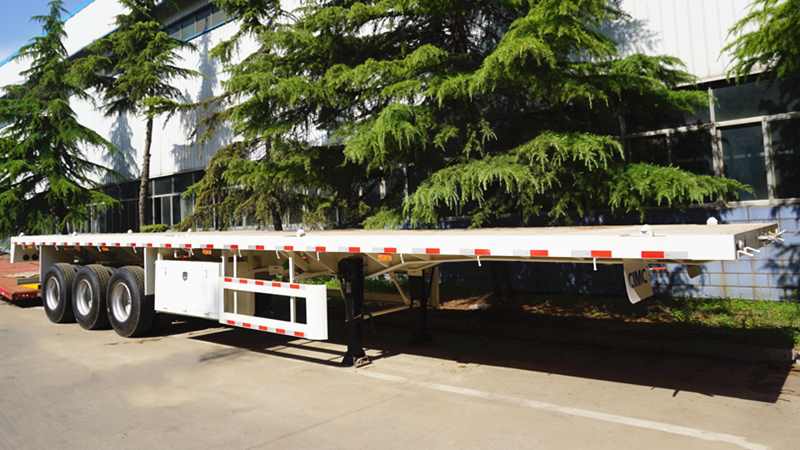

CIMC 3 Axle 40ft Flatbed Container Trailer

CIMC 3 Axle 40ft Flatbed Container Trailer Description:

CIMC Flatbed trailer can load 1x 40ft container and also can transport 2x20ft container, When shipping a 20ft container separately that put it in the middle of the flatbed trailer .this kind of trailer mainly transporting container, what's more ,It can also transport bags of chemical fertilizers, wood, steel bars, boxes and other more easily fixed goods.

CIMC 40ft shipping container trailer is the most popular model. According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton. For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with Columns to load the logs.

CIMC 3 Axle 40ft Flatbed Container Trailer

Specification:

Overall L*W*H: 12500*2500*1530mm

Payload: <80 tons, customized

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: mechanical/airbag/bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Accessories: Tool box, spare tire carrier
