Overall L*W*H: 12500×2500×3900 mm
Payload: 45000 Liters
Landing gear: JOST orequivalent with a lift capacity 28 tons
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Mechanical and the first axle is air bag suspension.
CIMC pays attention to the quality of products, the liquid will produce great tension and impact in the course of transportation, so the CIMC fuel tanker must be thick and solid, welded joints without defects, our tank trailer thickness is up to 6mm.The following diesel trailer have 5 compartments and each compartment with 9000 L, FUWA 13T 4 axle ,and the first axle is air bag suspension that can lift.

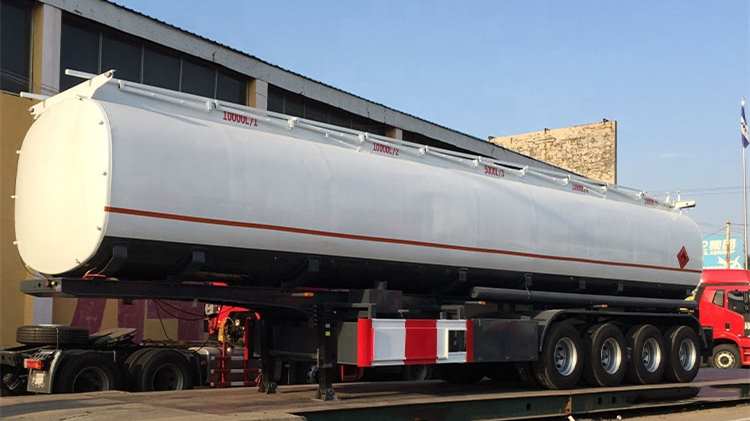

CIMC 4 Axle Fuel Tanker Semi Trailer for Sale
Dimension: 12500mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 45000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 4 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
