Type: Full Trailer
Color: Custom's Requirement
Brake system: WABCO valve and relay
King pin: 2"(50mm)or3.5"(90mm) JOST
The container side lifter consists of a semi-trailer or truck, boom, control system and engine, and is used to transport or load and unload containers.
The container side loader for sale allows to lift the maximum mass of the container, excluding the spreader mass. The lifting of the container on the right side of the frame is called right-hand lifting, and the lifting of the container on the left side of the frame is called left-hand lifting.
container trailer with crane
container side loader for sale

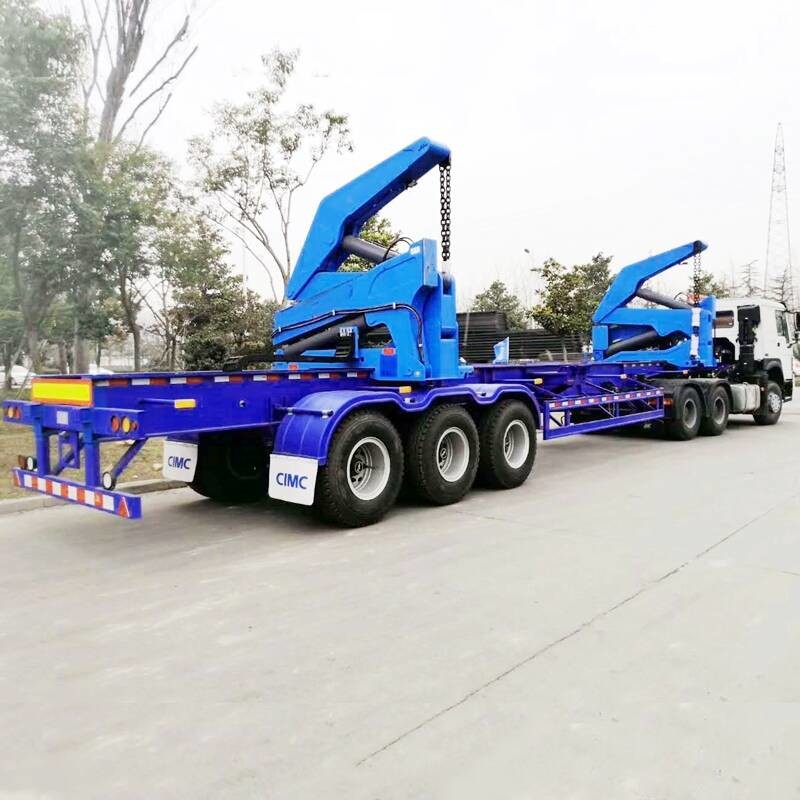

Hammar self loader truck
The longitudinal beam of the Hammar container trailer with crane frame adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates. The entire vehicle has undergone stress testing to meet the load-bearing requirements
CIMC side loader container integrates the functions of loading, unloading and transporting containers, which is efficient and reliable
The main supporting assembly uses well-known domestic brands with reliable quality and safe operation
CIMC side lifter can slide back and forth to adapt to the loading and unloading and transportation of standard 20-foot and 40-foot containers;
| Overall dimension: | 14100mm*2500mm*4100mm |
| Loading capacity : | 45ton |
| Axles: | 3 axles |
| Tire: | 12 units,12R22.5 |
| Suspension: | Heavy duty mechanical spring suspension |
| King pin: | 90# |
| Langing gear: | JOST |
| Brake system : | WABCO |
| Electical system : | 24V , LED lights |
| Power source: | PTO and Japenese Kubota diesel engine |
| Tow Chain: | Igus (imported) |
| Max.working range: | 4000mm |
| Overall height: | 2500mm |
| Overall length: | 1020mm |
