CIMC 40Ton Tri Axle Drop Side Wall Trailer For Sale

CIMC 40Ton Tri Axle Drop Side Wall Trailer For Sale

11000 USD

Max payload: 40T

King pin: 2"(50mm)or3.5"(90mm) Traction Pin

Landing gear: Heavy Duty Landing Gear

Function: Transport 20ft 40ft Container

Loading capacity: 30T~80T according to your requestment

SKU: CIMC 40Ton Tri Axle Drop Side Wall Trailer For Sale
GTIN: 6975766105563
MPN: ZJV9503080
Brand: CIMC

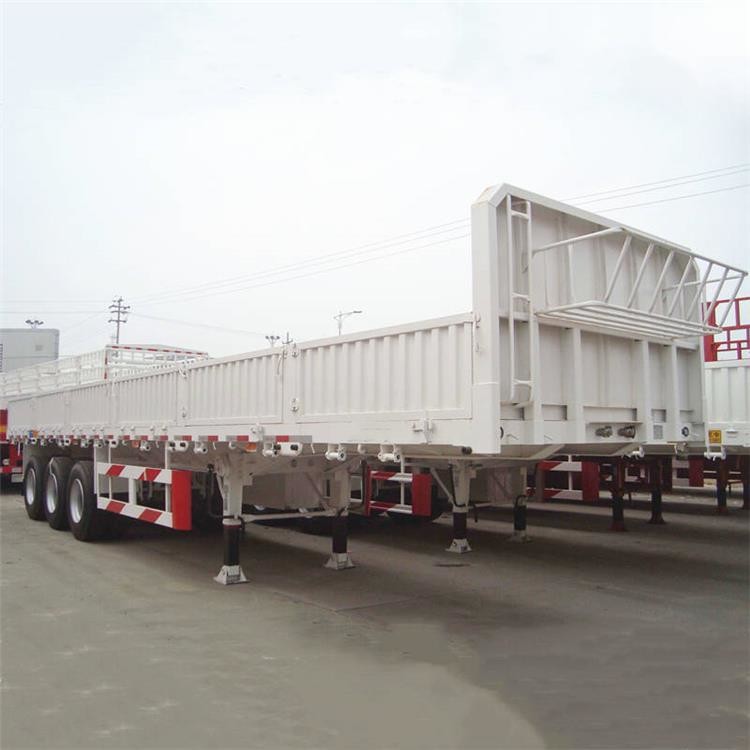

CIMC 40Ton Tri Axle Drop Side Wall Trailer For Sale


As for the sidewall trailer in the existing freight market, they are generally mainly used for transporting building materials, furniture and some lightly thrown goods. It can be used as a dropside trailer.

CIMC side board trailer can be customized according to the different requirements of customers in different countries.Sideboard trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers.

In fact, for the operation of trucks, trailers are as important as tractors. Side Wall Semi Trailer have become an important part of transportation, but many cargo trailer owners pay attention to tractors and ignore trailers when using vehicles.

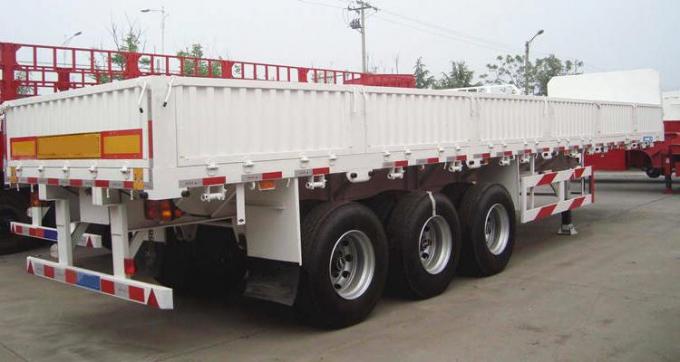

CIMC 40Ton Tri Axle Drop Side Side Wall Trailer For Sale

dropside trailer for sale

CIMC 40Ton Tri Axle Drop Side Side Wall Trailer For Sale

wallside semi trailer

Specification of Side Wall Semi Trailer:

Dimension 12500mm*2500mm*2350mm(800mm sidewall)
Payload 50-60ton
Container lock 12 pcs
Axles 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand
Tire 12 units
Brake system WABCO brake system with dual brake chambers and emergency brake valve
Suspension Mechanical / airbag / bogie suspension
King Pin JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear JOST brand
Accessories Tool box , spare tire carrier


Safty Loading of cargo semi trailer:

1.When loading and unloading, you must use a forklift according to the requirements of each vehicle, and loading and unloading beyond the limit is strictly prohibited;
2.If the van has an in-traielr cargo device, the cargo should be fully tied up with the in-car cargo device;
3.For the safety of vehicles and persons when loading and unloading and transporting goods, it is strictly forbidden to load unbalanced goods in the carriage during loading and unloading or transportation;


Here are a few more important points of sidewall trailer:

1.Bottom Floor:Many Platform semi trailer are also used to transport semi trailer with side wall and other items. The bottom plate of the side wall semi trailer passes the international standard 3mm thick checkered plate
2. Main beam:The international standard for the main beam of a sideboard trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm.
3. SuspensionsYou can choose from different types of suspensions for your cargo semi trailer. like air suspension, spring suspension, bogie suspension.
4. Side door:The common height of side door is 600mm, 800mm, 1000mm. The side door adopts a vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.
