Overall L*W*H: 11500×2500×3700 mm
Payload: 40 cbm
Landing gear: JOST orequivalent with a lift capacity 28 tons
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Mechanical and the first axle is air bag suspension.
Fuel Tank trailers are designed to carry different types of fuel and motor oil. Each of these tank trailers has a specific manufacturing process, especially for the oil tank. The main body and internal structure of the storage tank are designed according to the type of goods. Steel and aluminum alloys are commonly used to make the body of tank trailers.

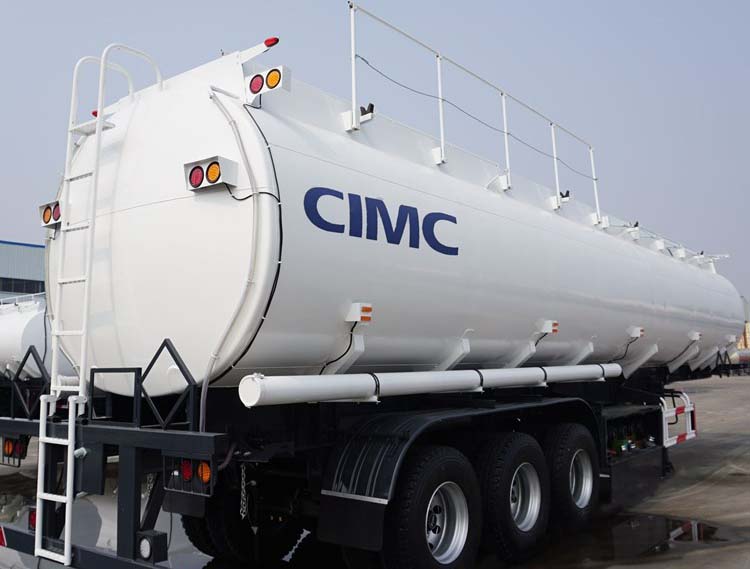

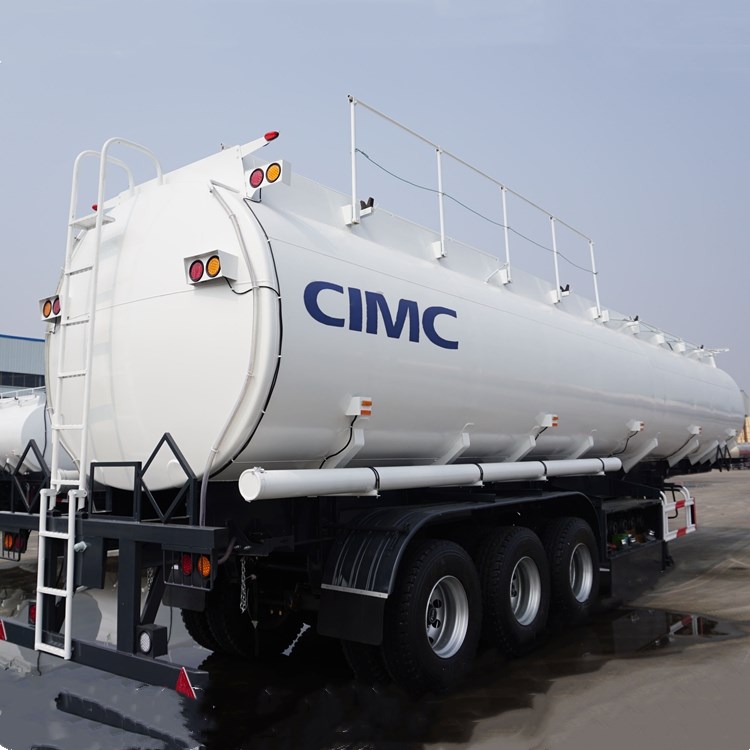

CIMC 40cbm Fuel Tanker Trailer
Dimension: 11500mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 40 cbm
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 axles, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
