Material: Carbon steeel
King pin: 2"(50mm)or3.5"(90mm) JOST
Function: Transport 20/40ft container and Heavy Duty Equipment
Landing gear: JOST
CIMC container trailer is specially designed to carry various cargo containers. Cargo container trailer includes 20, 40, 45 foot and other types.
Container trailer chassis is dedicated to transporting containers. It contains two kinds of skeletal trailer for long distance transportation and terminal trailer for port transportation.
The intermodal trailers is specially used for the transportation of various containers such as 20, 40, 45, 48, and 53 feet. The best design scheme has a reasonable structure and reliable operation.

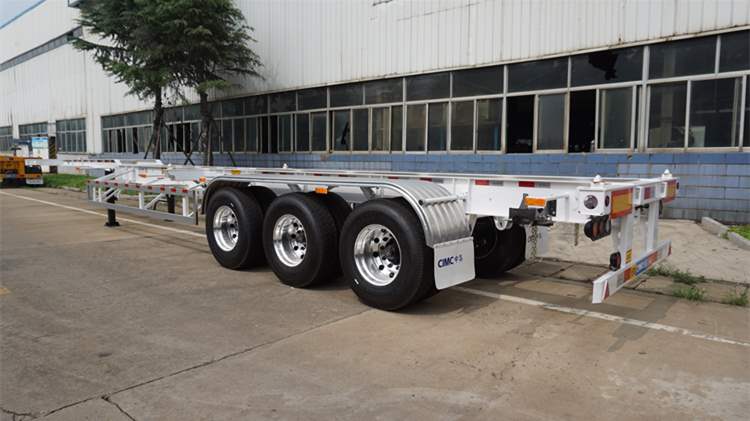

CIMC 40ft Container Chassis Skeleton Trailer for Sale
| Type | Intermodal trailers |
| Overall dimensios | 12400x2500x1550 mm |
| Loading weight | 30ton -50 ton |
| Container twist lock | 8/12 pcs |
| Main beam | Q345B steel |
| Side beam | 16 U shaped steel or I shaped steel |
| Axle brand | FUWA/BPW/CIMC brand |
| Traction pin | 2” or 3.5” |
| Landing gear | Standard 28 ton, brand optional |
| Suspension system | Mechanical suspension, air suspension is optional |
| Tire | 12.00R22.5 Triangle brand tires, others tires optional |
| Brake | 6 big chamber brake system |
| Tool box | 1 unit |
| Side marker lamp | LED type |
| Voltage | 24V |
