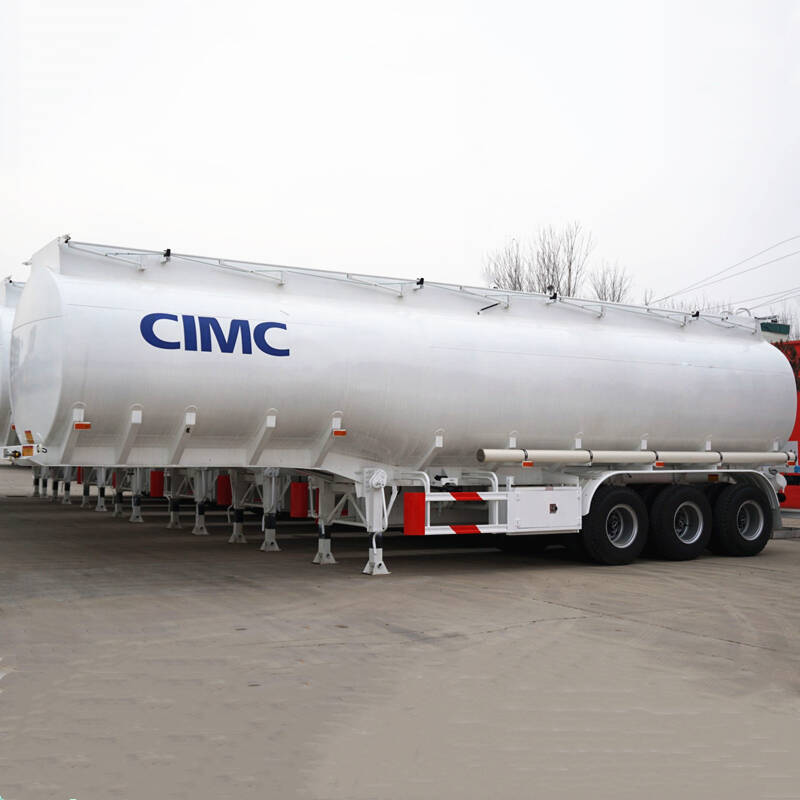

50000 Liter Diesel Tank Trailer
50000 Liter Diesel Tank Trailer

50000 Liter Diesel Tank Trailer

Dimensions:12100*2500*3900mm
Tank Capacity:50,000 liters diesel fuel tank trailer
Compartments:1 to 7 compartments, based on customer needs
Main Beams:Q345B steel fabricated I beams.
Axles:​3 axles, 13T

Product Description:

CIMC diesel tanker trailer is used for liquid cargo transportation, such as Gasoline, Diesel oil, Crude oil, Lubricating oil and other liquid cargo.The best quality oil/fuel tank trailer can realize the mechanization of loading, unloading, transportation and storage, which not only saves the labor force, but also saves the packaging materials and the transportation cost.

The volume varies of diesel tank widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs.The axles can be Fuwa / BPW with different ton nages by your need with price differences.The suspensions can be Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. The tanker inside can be isolated compartments or single compartment by your needs

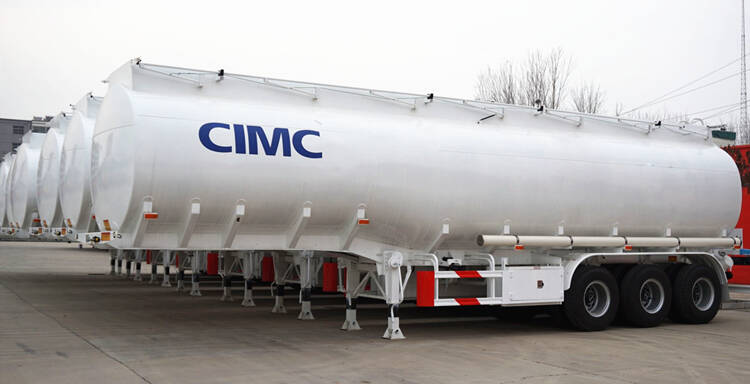

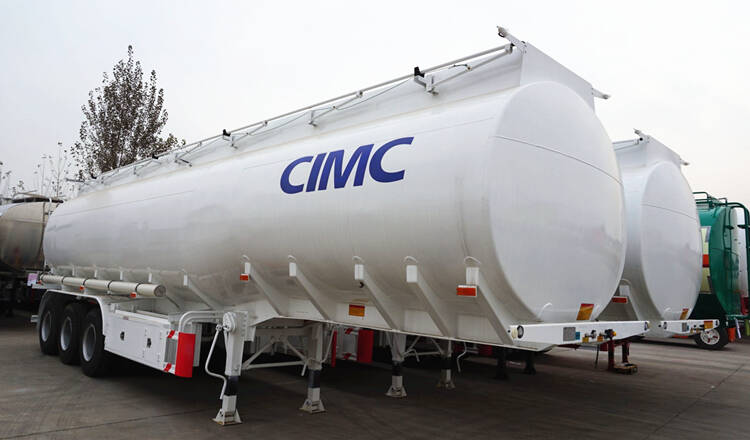

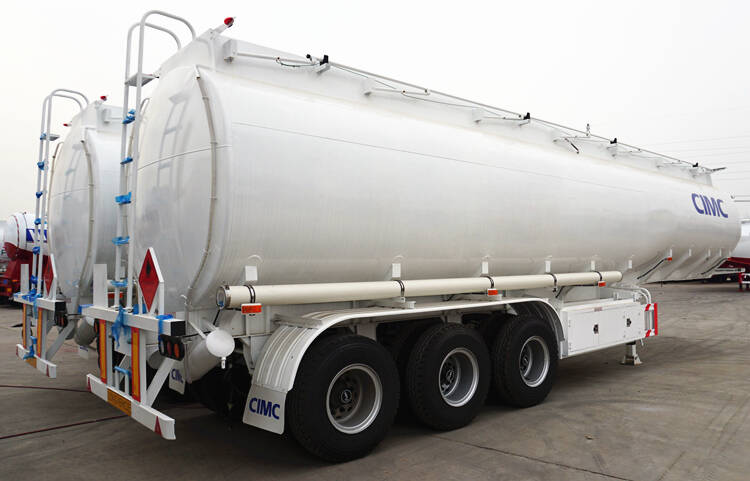

CIMC 3 Axle 50000 Liter Diesel Fuel Tank Trailer for Sale

CIMC 3 Axle 50000 Liter Diesel Fuel Tank Trailer for Sale



Specification:

Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)

Volume: 50000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
