Size: 12500*2500*1550mm
Suspension: Mechanical / air / single point suspension
King pin: 2"(50mm)or3.5"(90mm) Traction Pin
Function: transport containers and bulk cargo
CIMC 2 axle, 3 axle, 4 axle dropside trailer and fence semi trailer, grain trailer and the cargo drawbar trailer. And load capacity has 30/40/60/80/100 tons for your choice. Customizable sideboard height.
In order to make the semi-trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.
CIMC livestock trailer for sale

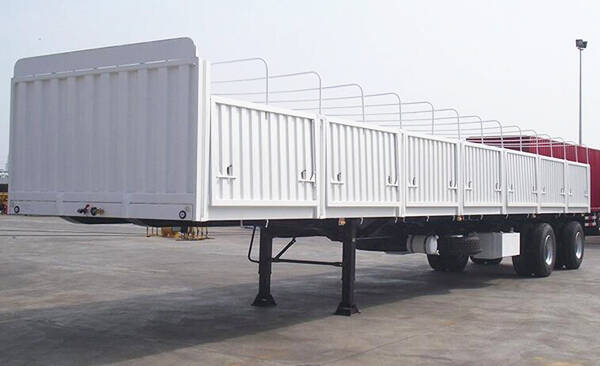

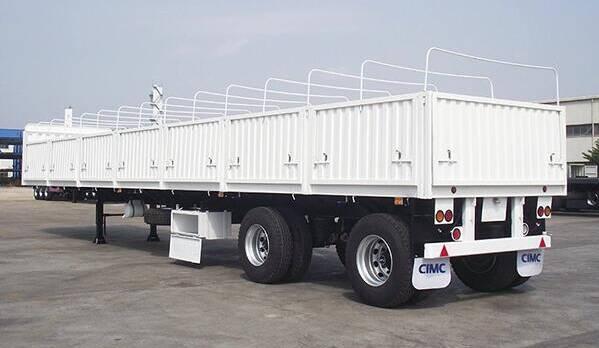

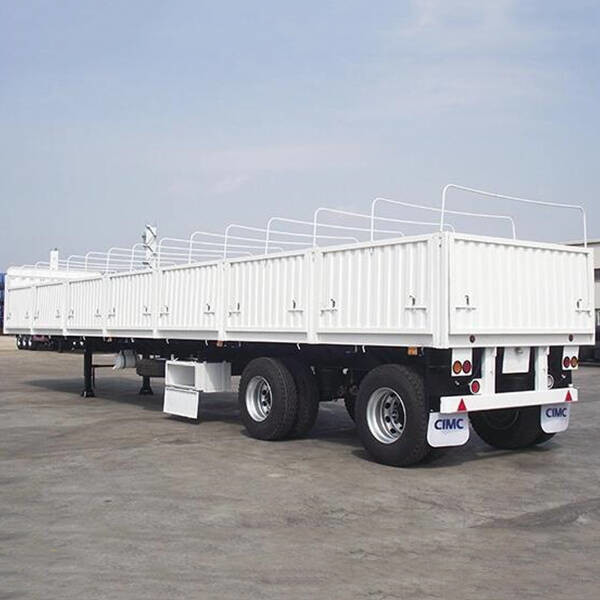

CIMC side wall trailer
| 1. Frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports. |
| 2.Trailer protection rotect pedestrians and other vehicles from getting under the CIMC sidewall semi-trailer. It can also reduce wind resistance and save fuel. |
| 3. The side wall is divided into a flat plate and a vertical corrugated board. Can be detached or welded to death. |
| 4. The traction pin is an important component that connects the CIMC fence semi trailer to the tractor and withstands traction, and is connected to the traction seat. |
| L*W: | 12500mm*2500mm |
| Sidewall Height: | 600mm |
| Max. Payload: | <60T |
| Application: | Coal/Cargo/Containers Loading |
| Material: | Q345B Steel |
| Bottom Platform: | 3mm-thick checkered plate |
| King Pin: | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg: | JOST brand |
| Suspension: | Airbag / Mechanical / Bogie suspension |
| Axles: | FUWA/BPW/CIMC/other |
| Tires: | 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Brake System: | WABCO |
| Electrical System: |
24-volt lighting system |
