Suspension: Mechanical / air / single point suspension
King pin: JOST 2.0 inch (50mm)/3.5 inch (90mm)
Landing gear: Heavy Duty Landing Gear
Function: 40 Tons Curtain Side Wall Semi Truck Fence Cargo Trailer for Sale

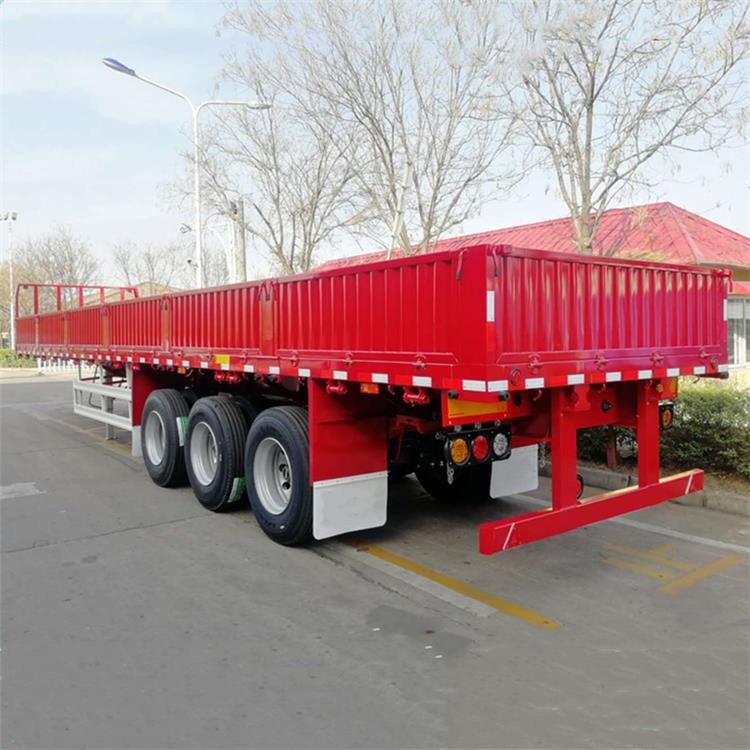

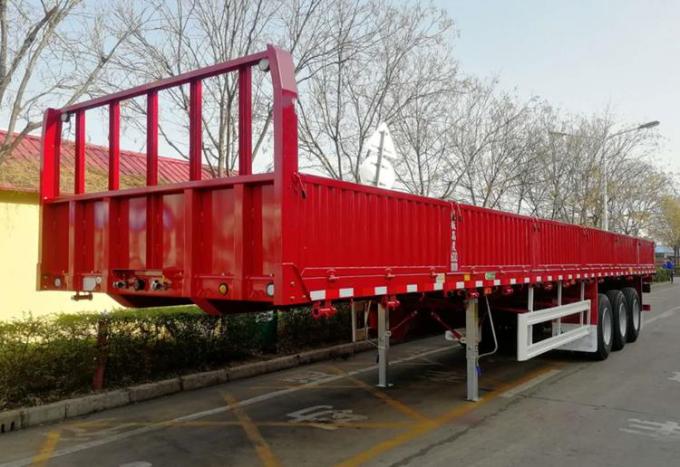

Dropside trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design.
This sidewall cargo semi trailer is widely used in the logistics. It could be used to carry the bagged grain, cement, steel or other kinds of bulk goods. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.
Cargo Semi Trailer Price
Side Wall Semi Trailer For Sale
| 1.The frame is a space frame type low alloy steel welded structure.The frame is welded by two T-shaped longitudinal beams and beams to support the load.To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand. |
| 2.There are a traction pin and a traction pin plate connected to the tractor under the front of the frame. The front cross beam of the frame is provided with an air brake connector and a wire connection socket. The front and side of the frame are equipped with lighting or signaling devices. |
| 3.Hight Quality side wall, make sure the stable and safety of the loads.Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff. |
| 1. Apply the rigid parts of the cargo semi trailer bumper and compartment to friction and collision with natural obstacles (rocks, trees or soil slopes) on the roadside, to achieve the purpose of forced parking and escape to minimize the accident losses. |
| 2. Control the direction according to the road conditions and vehicle speed, and change the high-speed gear into the low-speed gear. In this way, there is a large traction resistance and the Side Wall Semi Trailer speed is rapidly reduced. |
| Dimension | 12500mm*2500mm*2350mm(800mm sidewall) |
| Payload | 50-60ton |
| Container lock | 12 pcs |
| Axles | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
| Tire | 12 units |
| Brake system | WABCO brake system with dual brake chambers and emergency brake valve |
| Suspension | Mechanical / airbag / bogie suspension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand |
| Accessories | Tool box , spare tire carrier |
