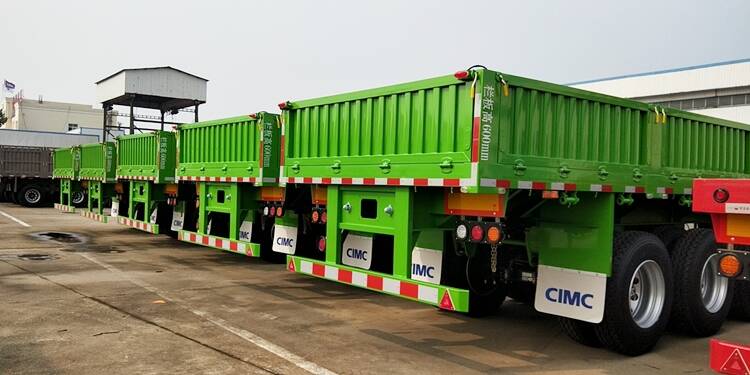

CIMC Tri Axle Dropside Trailer

Product Description:

Cargo semi trailer for sale was popular by logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, etc.

Also, some bulk cargo, very widely used in the transportation industry. The sidewall flatbed trailer can be used to load the containers after adopt the container locks for it.

3 Axle Cargo Semi Trailer

CIMC Tri Axle Side Wall Semi Trailer Price

Semi Trailer with Side Wall

Feature of flatbed trailer with a long side wall:

1.There are a traction pin and a traction pin plate connected to the tractor under the front of the frame. The front cross beam of the frame is provided with an air brake connector and a wire connection socket. The front and side of the frame are equipped with lighting or signaling devices.

2.The frame is a space frame type low alloy steel welded structure. The frame is welded by two T-shaped longitudinal beams and beams to support the load. To make sure the service life of the semi trailers, all the spare parts we adopt are the World Famous brand.

3.Hight Quality side wall, make sure the stability and safety of the loads. Trailers floor is a checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

Specification:

L*W: 12500mm*2500mm

Sidewall Height: 1000mm

Max. Payload: <60T

Application: Coal/Cargo/Containers Loading

Material: Q345B Steel

Bottom Platform: 3mm-thick checkered plate

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system
