Material: Main beam Q345B
Size: 12500*2500*1550mm
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST flatbed semi trailer
CIMC tri axle flatbed trailer for sale is hot sales for African market. The price-quality ratio is very high. This tri axle flatbed trailer has the advantages of large loading capacity, long service life, and good performance in rough road condition.
True to its name, The tri axle trailer for sale includes a 3mm thick flat platform that is made of checkered plates, Ridges on the flatbed create more friction, thus making it slip-resistant.
When transporting tri axle trailer for sale, many customers use container transportation, which has low transportation costs and short transportation time. And some customers are bulk carriers or ro-ro ships.

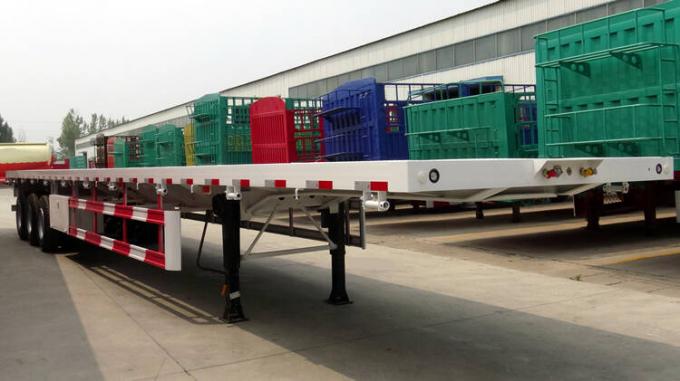

40 foot semi trailer 3 axle from CIMC

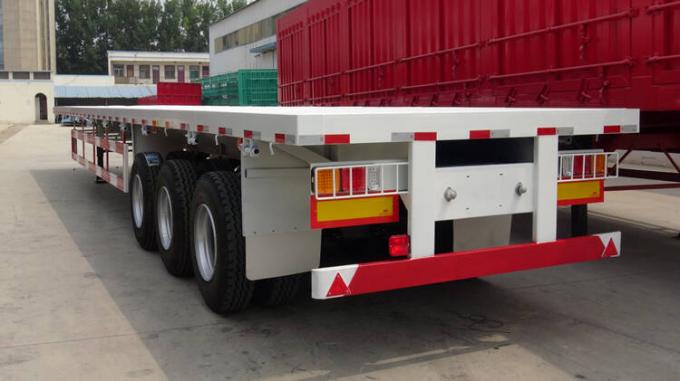

CIMC 40ft container flatbed tri axle trailer

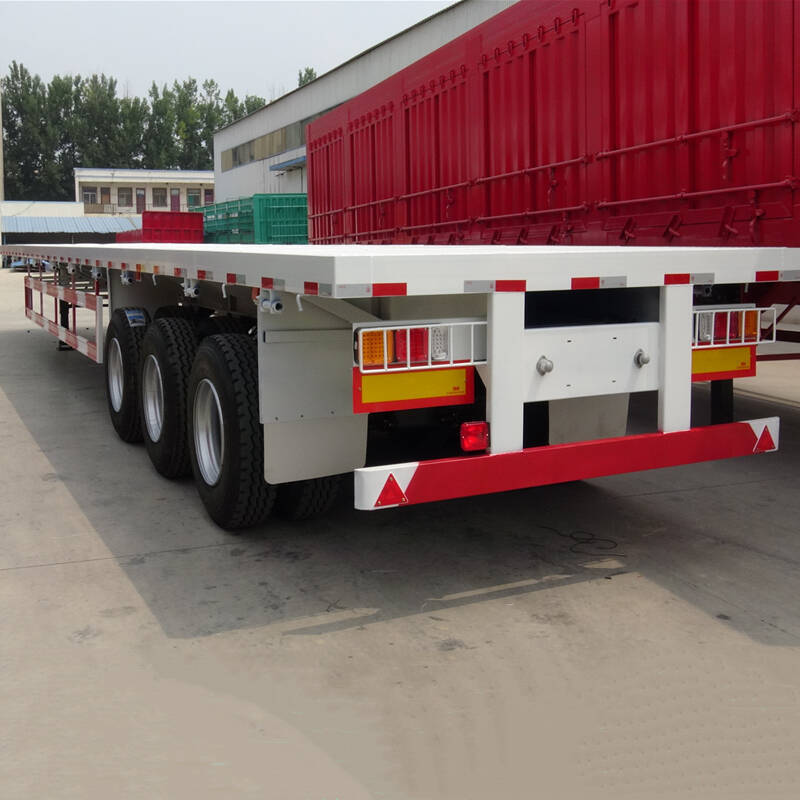

CIMC tri axle flat deck trailer for sale

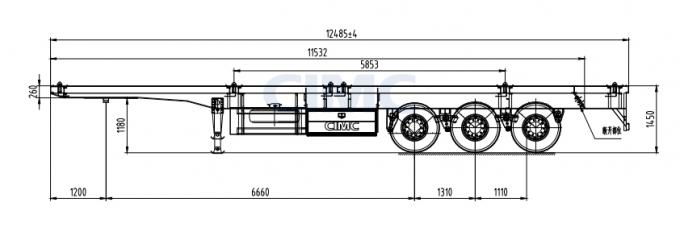

| Dimension | 12485*2500*1450mm |
| Payload | 60 tons |
| Container lock | 12 pcs |
| Axles | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
| Tire | 12 units |
| Brake system | WABCO brake system with dual brake chambers and emergency brake valve |
| Suspension | Mechanical / airbag / bogie suspension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand |
| Accessories | Tool box , spare tire carrier |
1. All the parts used to make up the 40 foot semi trailer are purchased from qualified suppliers. They are able to withstand a long time of use, exhibiting great strength.
2. CIMC has high-performance OEM configuration and excellent manufacturing technology.
3. CIMC trailer use the oblique angle explosion-proof pipe instead of ordinary plastic pipe, long service life, reduce maintenance costs.
4. Hight Quality container locks, make sure the stable and safety of the loads.
