Material: Steel/Aluminum Alloy
Suspension: Mechanical / Air Suspension
Size: 10000*2500 *4000mm
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC flour tanker itself weighs only 5 tons, which is nearly 2 tons lighter than carbon steel tanks of the same model. The service life is greatly increased and the recovery residual value is high, which maximizes the user's transportation benefits. At the same time, the aluminum horizontal tank has a low center of gravity and better driving safety. .
The bulk wheat trailer feed port of the powder tanker is generally above the tank body, and the discharge requires an air compressor to pressurize the inside of the tank body.

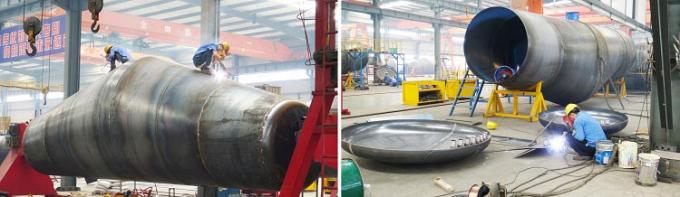

CIMC bulk cement tanker trailer adopts the latest advanced automatic splice plate machine to weld the steel plate with double-side, that ensure the high quality of welding seams, long service life and good appearance in tank body, long service life.
CIMC 50cbm flour tanker for sale
CIMC fly ash bulk cement tanker trailer
1. Aluminum alloy material has the advantage of light weight. The minimum weight of the aluminum flour tanker trailer can be 4.88 tons, which can reduce the weight of 1.2-1.6 tons compared to the iron tank.
2. Because the outer surface of the aluminum alloy is very dazzling and easy to reflect, the rear part of the bulk cement tanker trailer will generally be treated with anti-glare treatment. There are generally two treatment methods, one is simple spray painting and the other is sanding.
3.Compared with iron cans, aluminum cans have a smoother surface, so the internal boredom residual rate is lower.
4. Because aluminum alloys are not easy to rust and corrode, and the appearance is beautiful, bulk cement wheat tanker trailer do not need to be painted like iron bulk cement tanker trailer. Nowadays, the environmental protection policy is becoming stricter and stricter. After being exempted from paint spraying, the production of aluminum alloy tank trucks will have one less shackle.
Dimension: | 10000*2500 *4000mm |
Tank Body | |
Tank thickness | 4 mm |
Front & end plate | 4 mm |
Tank rated pressure | 0.2Mpa |
Trailer Chassis | |
Main Beam | Welded design, |
Axles | 3 axles |
Landing gear | 28T |
Kin pin | 3.5 inch high tensile bolt-in king pin |
Suspension | Mechanical suspension with 10 layers leaf spring |
Tire | 12.00R22.5 , |
Braking system | WABCO emergency valve; |
Electrical system | Voltage: 24V |
Tool box & tire carrier | One tool box , 2 pieces tire carrier |
Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
