The CIMC flatbed trailer for sale combines CIMC's high-strength, durable structural design with the superior shock absorption and balance of a Bogie suspension system, making it an all-terrain logistics powerhouse engineered specifically for navigating harsh road conditions and transporting heavy-duty containers.

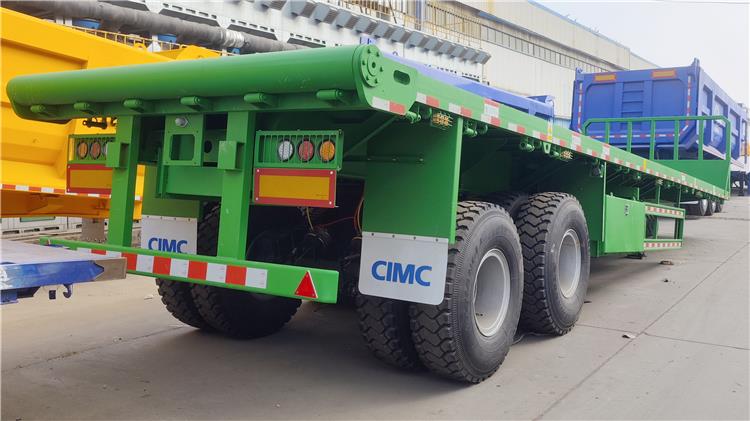

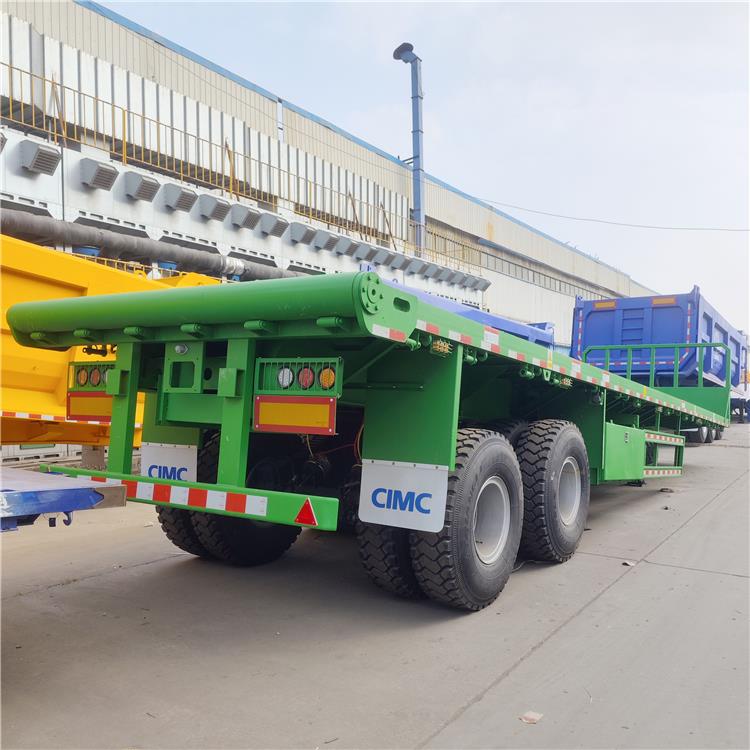

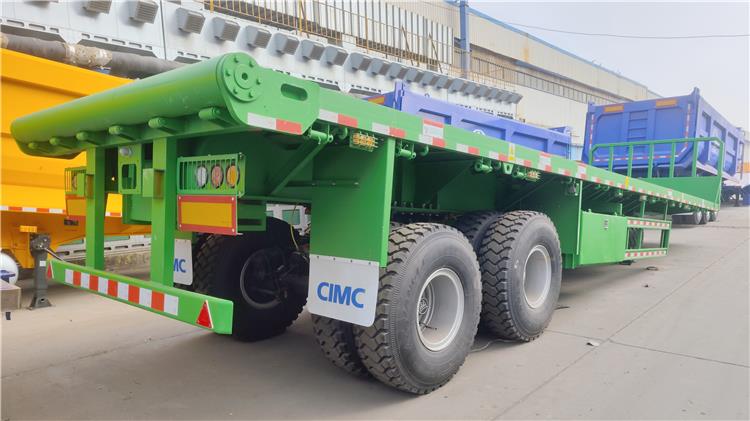

CIMC 2 Axle 40ft Flatbed Trailer with Bogie Suspension for Sale In Ghana
CIMC 2 Axle 40ft Flatbed Trailer with Bogie Suspension for Sale In Ghana
CIMC 2 Axle 40ft Flatbed Trailer with Bogie Suspension for Sale In Ghana
CIMC 2 Axle 40ft Flatbed Trailer with Bogie Suspension for Sale In Ghana
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 2axles, 13T/16T ,FUWA/ BPW/ CIMC Brand
Tire: 8units, 12R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

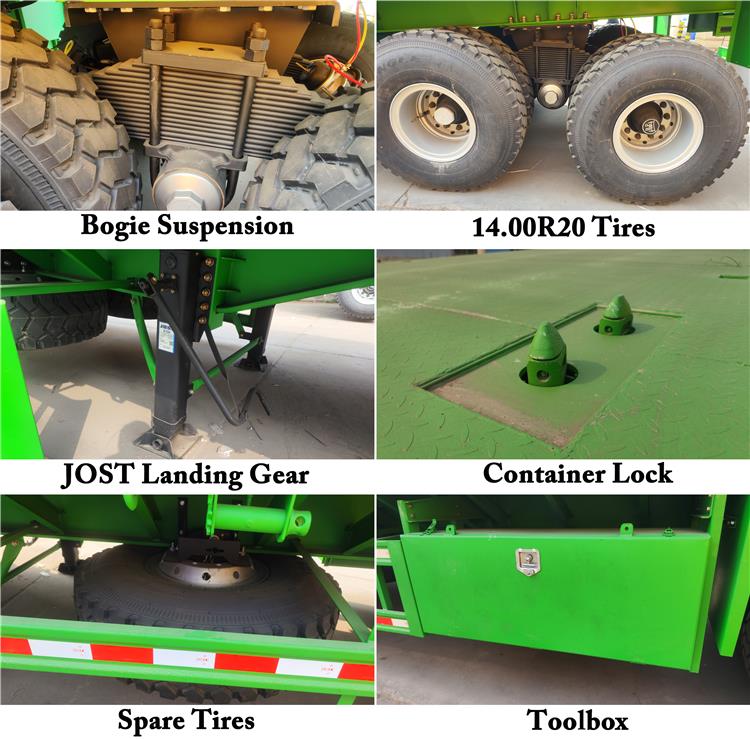

The bogie suspension (also known as single-point suspension) on the CIMC flatbed trailer connects two sets of axles via a central shaft, allowing for a wide range of oscillation. This design ensures that the trailer's tires remain firmly in contact with the ground—even when traversing uneven or pothole-ridden surfaces—thereby minimizing vehicle vibration and jolting.
The CIMC flatbed trailer features main beams welded using an automated submerged arc welding process; these beams boast exceptional load-bearing capacity and high torsional resistance, ensuring the trailer frame remains free of deformation even under heavy-load conditions.
As a globally leading trailer brand, CIMC utilizes components (such as twist locks, landing gears, and air chambers) that offer high interchangeability worldwide, resulting in lower maintenance costs.
The CIMC flatbed trailer is equipped with 12 sets of standard container twist locks, offering the flexibility to transport either one 40-foot container or two 20-foot containers.

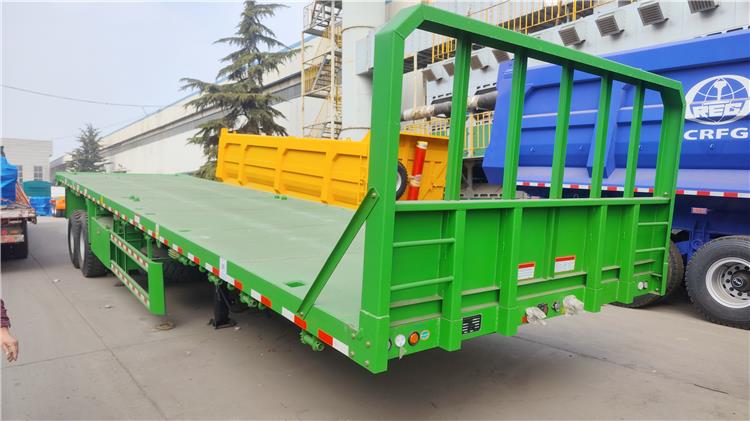

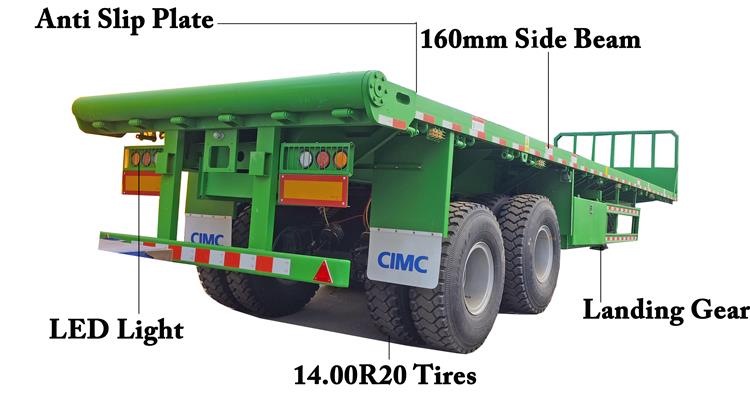

With its flat deck (available in checkered plate or smooth plate options) and high-strength side beam design, the CIMC flatbed trailer is ideally suited for transporting bulk cargo such as timber, steel, and bagged cement.
The frame of the CIMC flatbed trailer undergoes shot-blasting to remove rust, followed by the application of a high-quality polyurethane topcoat; this provides superior corrosion resistance, extending the trailer's service life in humid or saline environments.
CIMC flatbed trailers typically feature optional FUWA or BPW axles, along with classic JOST landing gears, ensuring the stability and reliability of these critical components.
