The low bed trailer is a powerful logistical tool specifically engineered for the transport of extremely heavy and oversized cargo; leveraging its exceptional structural strength and ultra-low center of gravity, it perfectly resolves the challenges associated with the efficient transit of heavy machinery—such as excavators and mining equipment—across complex road conditions.
This semi low bed trailer is primarily utilized for transporting "oversized" cargo that cannot be moved via standard freight trucks. It is ideal for transporting large excavators (such as CAT 320/330 class models), bulldozers (e.g., Shantui SD16/SD32), road rollers, and pavers. Furthermore, it is used to transport dump truck chassis, large-scale mining crushers, drilling rigs, and other heavy-duty mining support equipment.

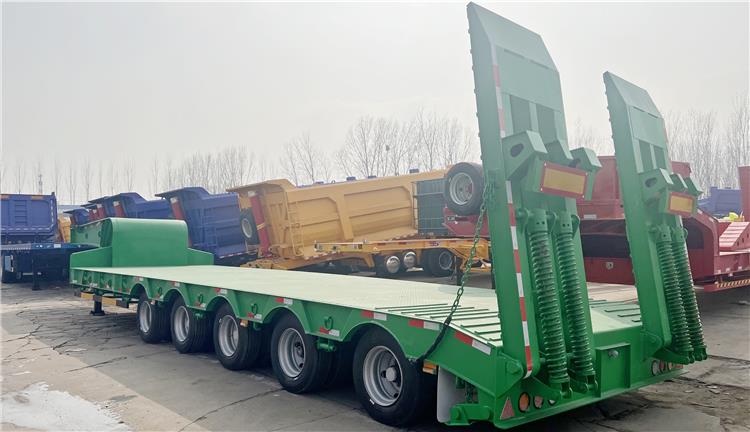

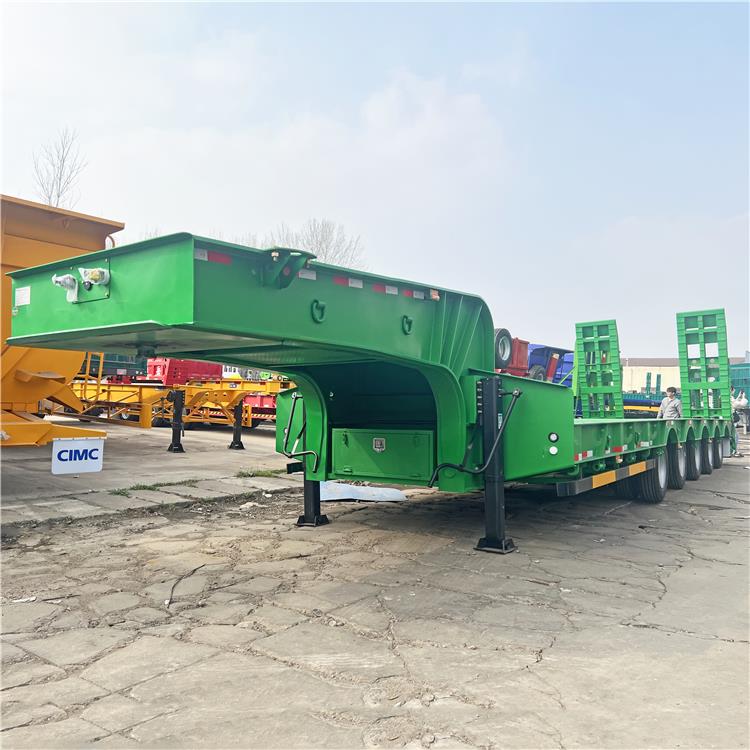

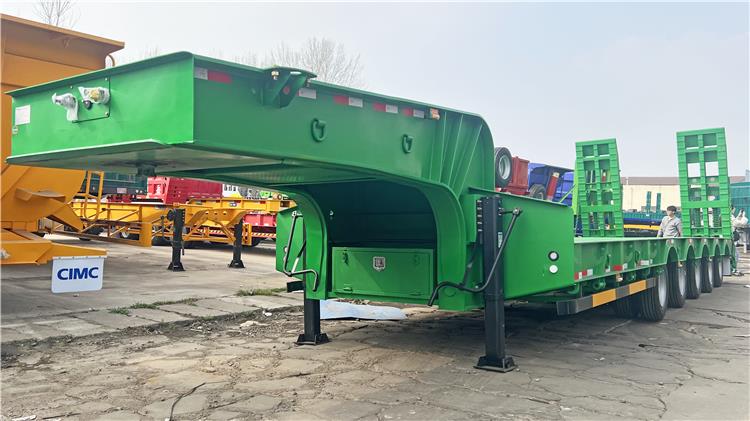

CIMC 5 Axle 120 Ton Semi Low Bed Trailer for Sale In Tanzania
CIMC 5 Axle 120 Ton Semi Low Bed Trailer for Sale In Tanzania
CIMC 5 Axle 120 Ton Semi Low Bed Trailer for Sale In Tanzania

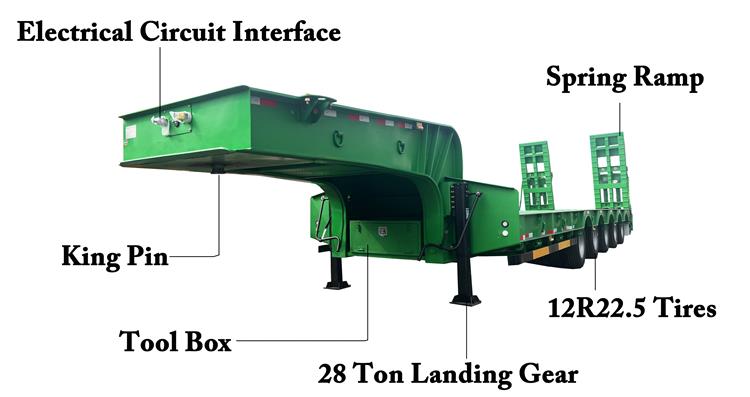

Model: Low Bed Trailer for Sale
Loading capacity : 20 ton
Overall dimension: 18750mm*3400mm*3750mm
Axles: 5 axles
Tire: 20 units, 12R22.5
Suspension: Mechanical suspension

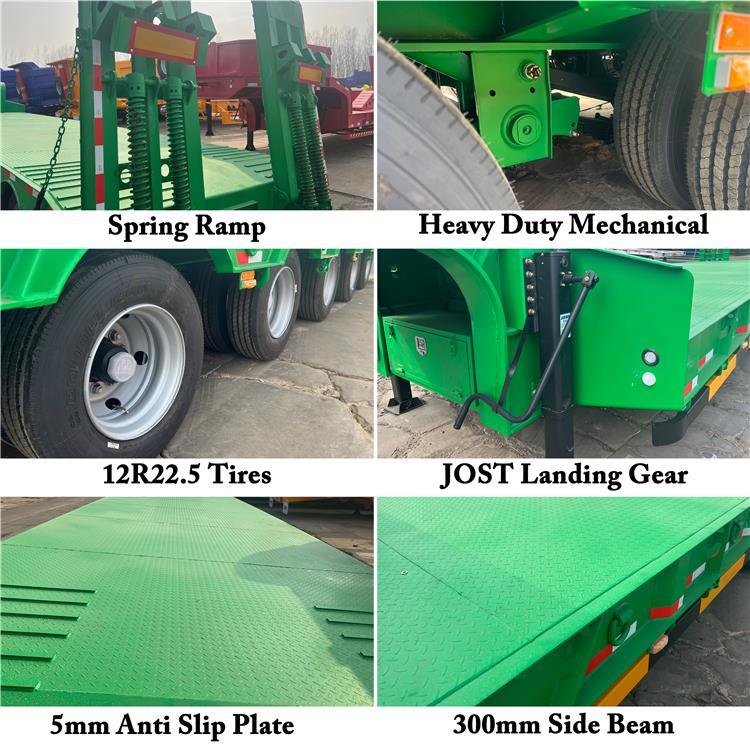

Ramp: Spring Ramp
CIMC 5 Axle 120 Ton Semi Low Bed Trailer for Sale: A highly mature and high-performance product within the heavy-haul transport sector. This semi low bed trailer features a 5-axle design utilizing high-strength materials, enabling it to stably carry oversized cargo weighing between 100 and 120 tons; it demonstrates exceptional performance in the transportation of heavy mining and construction equipment.
The cargo platform height of this semi low bed trailer typically ranges from 850mm to 1200mm. The side beams stand 300mm high. This extremely low loading deck not only lowers the cargo's center of gravity—thereby significantly enhancing driving safety—but also allows the trailer to easily clear height-restricted routes.
Structurally reinforced for use on unpaved surfaces (such as mining roads in regions like Tanzania or Zimbabwe), this semi low bed trailer boasts excellent torsional resistance and is highly resistant to frame deformation.
The main longitudinal beams are welded from Q345B high-strength manganese steel using an automated submerged arc welding process; this ensures robust weld seams capable of withstanding concentrated heavy-load impacts.
The trailer is equipped with five 13-ton or 16-ton capacity axles from renowned brands (such as FUWA or BPW). Customers may choose between mechanical spring suspension (durable and simple to maintain) or air suspension (ideal for protecting precision equipment).
The trailer features mechanical ramps, which offer a simple structure and low cost, making them suitable for most standard operational tasks.
Additionally, the semi low bed trailer can be fitted with WABCO relay valves and a dual-circuit air braking system, ensuring responsive and powerful braking performance even when fully loaded.
