The front and rear ends and left and right sides of the suspension system of fence trailer for sale have been strengthened. In view of the road conditions in Africa, special attention is paid to solving the problems of muddy and poor road conditions.
A fence semi trailer is a common freight semi-trailer, which is characterized by a removable or fixed fence (usually a metal fence or mesh structure) around the carriage, suitable for transporting a variety of goods, especially those that require easy loading and unloading or are large in size.

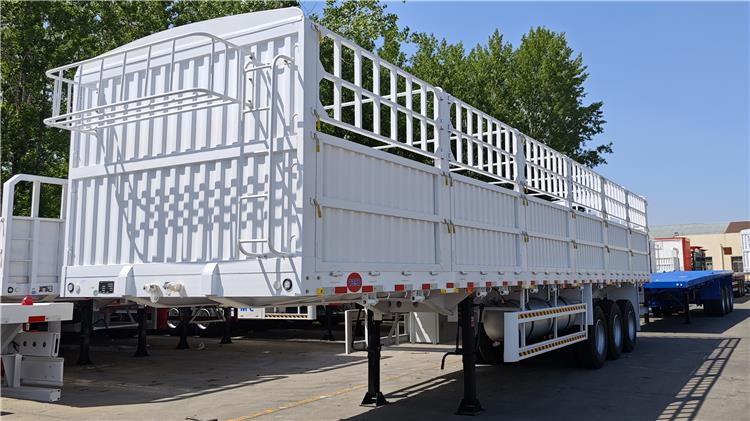

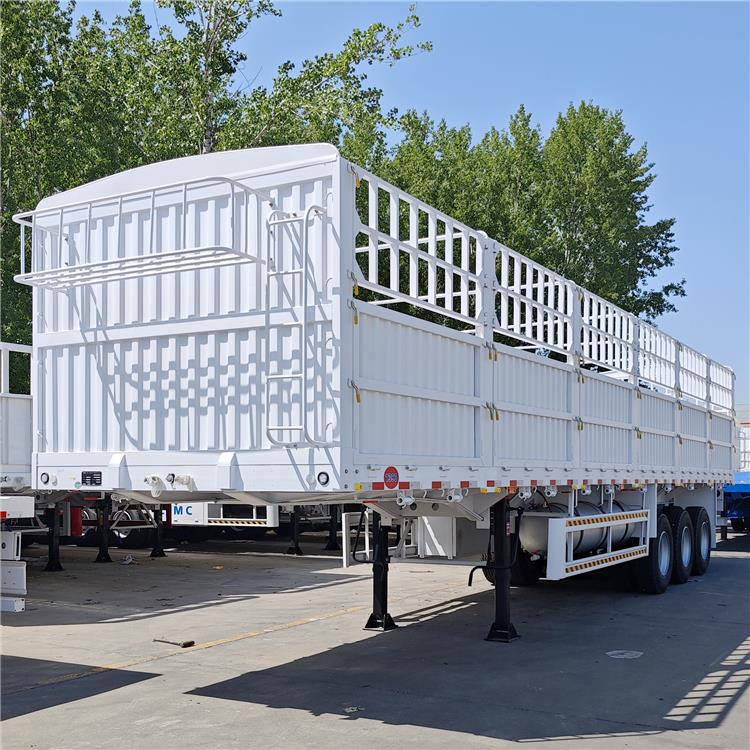

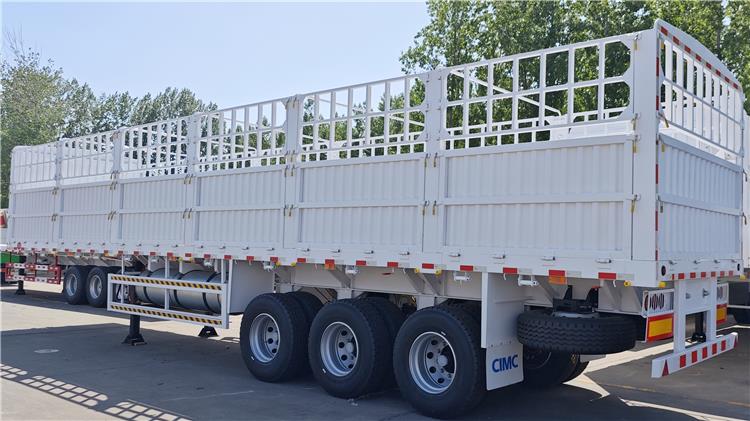

CIMC 60 Ton Fence Semi Trailer for Sale In Nigeria Lagos
CIMC 60 Ton Fence Semi Trailer for Sale In Nigeria Lagos
CIMC 60 Ton Fence Semi Trailer for Sale In Nigeria Lagos
L*W: 12500mm*2500mm
Sidewall Height: 1800mm
Max. Payload: <60T
Application: Coal/Cargo/Containers Loading
Material of the main beam : Q345 high strength steel
Bottom Platform: 3mm-5mm thick(according to the load capacity)

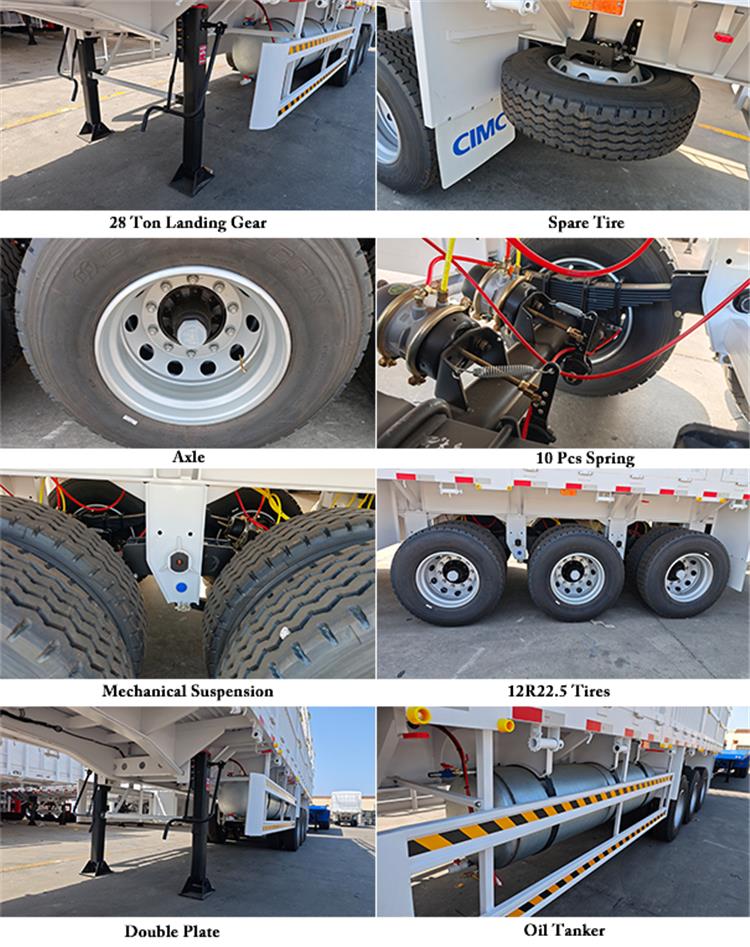

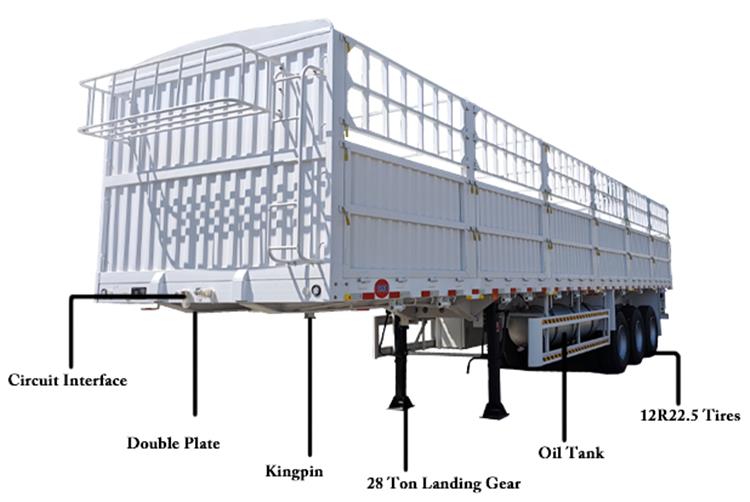

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Mechanical suspension or air suspension
Axles: FUWA/BPW
Tires: 12R22.5
Brake System: WABCO
Electrical System: 24-volt lighting system
The fence semi trailer uses low-carbon high-strength alloy steel Q345 to manufacture the main beam, and we use automatic submerged arc welding to weld the main beam. Since there is no seam between the upper, middle and lower plates of the beam, the integrity of the main beam can be ensured, and the beam is more durable, with a higher load-bearing capacity and a service life of more than 10 years.
The side beams we make are 160 mm thick channel steel, the cross beams are 100 mm channel steel, and all the cross beams are supported by diagonal support frames. The spacing between these frames does not exceed 500 mm, which ensures that the trailer is not easily deformed.
The traction plates of fence trailer for sale are lengthened and thickened, and have stronger torsion resistance.
The bottom plate of fence semi trailer is 3 mm thick and is a diamond plate. It is very strong and durable and will not deform even after long-term use.
The square tube of fence trailer for sale adopts the latest high-strength square tube 5*5 model, which has high strength and does not expand the box. Even if it is deformed, it will return to its original position quickly. Ordinary square tubes will be damaged immediately when they are hit during unloading. High-strength square tubes are extremely strong and collision-resistant.
All the columns of fence trailer for sale are equipped with horizontal tie rods, which are removable to prevent deformation and expansion. The columns are thickened, and the plugs and plugs are bent with 8mm thick steel to ensure absolute firmness! And they are equipped with fastening column bolts to prevent loosening. The fence is automatically welded by robots, which combines beauty and firmness.
The vertical corrugation of fence semi trailer is also pressed with high-strength plate, which has higher strength. The square tube model of flower basket is the same as that of fence square tube, all of which use 5*5 high.
