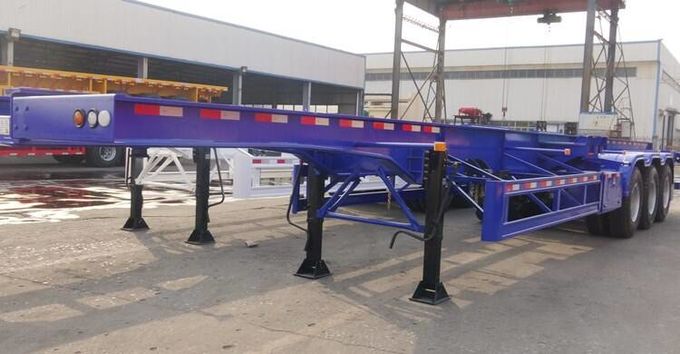

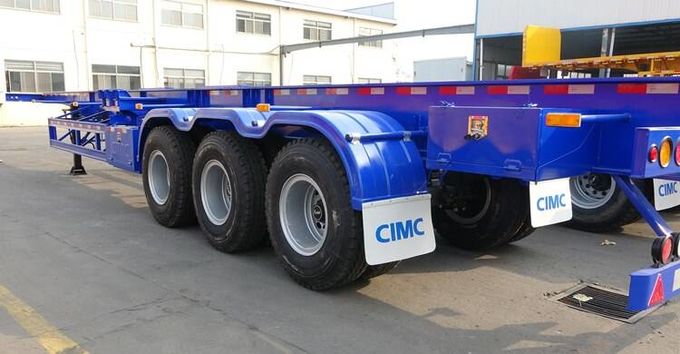

45Ft Container Chassis Trailer

45Ft Container Chassis Trailer Description

CIMC container trailers are designed for maritime container and sea freight transport tasks and combine both safe and rapid container handling. CIMC container chassis trailer possesses a long service life even under the tough conditions which a semi-trailer container chassis has to face on a daily basis.

Special models container chassis trailer: terminal trailer, tipper chassis trailer and interlink trailer.

Most industries use large containers to transport finished products, so container trailers are required. Containers are still one of the safest ways to transport fragile and sensitive goods.

Specification

Type: Tri axle chassis

Overall dimensios: 12400x2500x1550mm

Loading weight: 30ton

Container twist lock: 8/12 pcs

Main beam: Q345B steel

Side beam: 16 U shaped steel or I shaped steel

Axle brand: FUWA/BPW/CIMC brand

Traction pin: 2” or 3.5”

Landing gear: JOST brand optional

Suspension system: Mechanical suspension, air suspension is optional

Tire: 12.00R22.5 Triangle brand tires, others tires optional

Brake: 6 big chamber brake system

Tool box: 1 unit

Side marker lamp: LED type

Voltage: 24V

Feature:

1. Tri axle skeletal trailer chassis lock is used for locking a trailer chassis to your container body. It is provided with a locking cavity in it.

2. To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel.

3. CIMC tri axle skeletal trailer uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate.it can ensure the intergrated main beam, so the main beam is more stronger and more durable.

4. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.

5. CIMC tri axle chassis is popular but only because of its high quality material and spare parts but also its advanced technology , like the welding , painting and design process.
