CIMC 20 Ft Shipping Container Trailer With Tri Axle Chassis

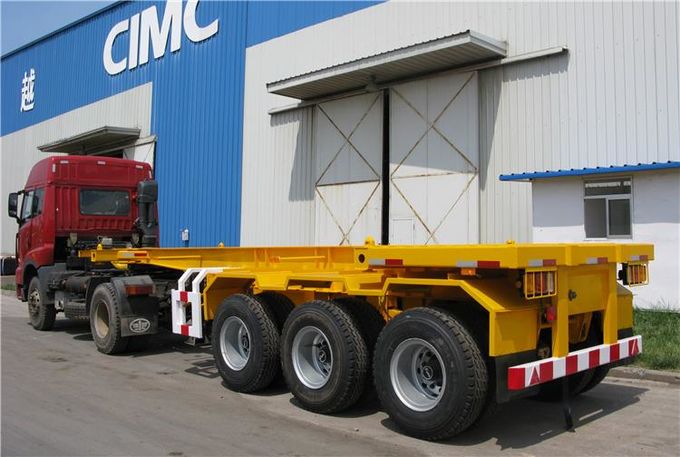

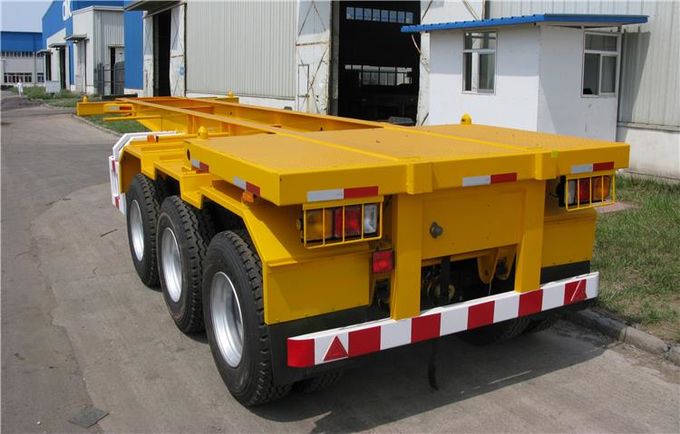

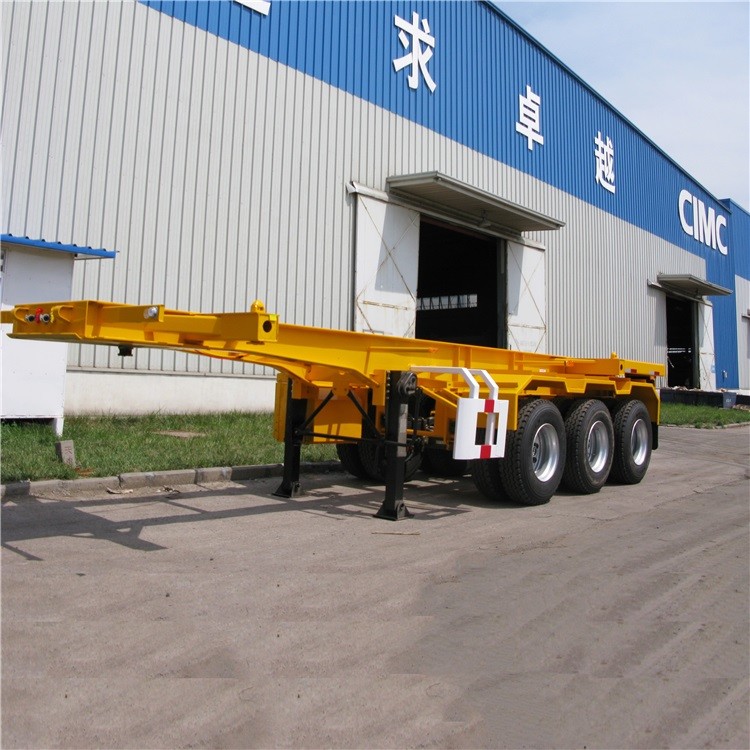

CIMC 20 Ft Shipping Container Trailer With Tri Axle Chassis Product Description:

CIMC tri axle chassis's working life is over 5 times higher than other brand trailer. 20 ft skeletal trailers is a fixed structure commonly used in the transportation of containers. It is mainly of a steel construction where containers are loaded and uploaded using overhead cranes. Tri axle container chassis provides you with the option of taking high weight container while at the same time giving you options to make adjustments to desirable maneuverability. This type of trailer is a simple yet strong and is capable to serve you even in rugged topography.

CIMC is the largest and professional tri axle skeletal trailer manufacturer. We can supply different solutions to meet customer's different demand .

Specification

Type: Tri axle chassis

Overall dimensios: 6700x2500x2900mm

Loading weight: 30ton

Container twist lock: 8/12 pcs

Main beam: Q345B steel

Side beam: 16 U shaped steel or I shaped steel

Axle brand: FUWA/BPW/CIMC brand

Traction pin: 2” or 3.5”

Landing gear: JOST brand optional

Suspension system: Mechanical suspension, air suspension is optional

Tire: 12.00R22.5 Triangle brand tires, others tires optional

Brake: 6 big chamber brake system

Tool box: 1 unit

Side marker lamp: LED type

Voltage: 24V

Feature:

1. Tri axle skeletal trailer chassis lock is used for locking a trailer chassis to your container body. It is provided with a locking cavity in it.

2. To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel.

3. CIMC tri axle skeletal trailer uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate.it can ensure the intergrated main beam, so the main beam is more stronger and more durable.

4. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.

5. CIMC tri axle chassis is popular but only because of its high quality material and spare parts but also its advanced technology , like the welding , painting and design process.
