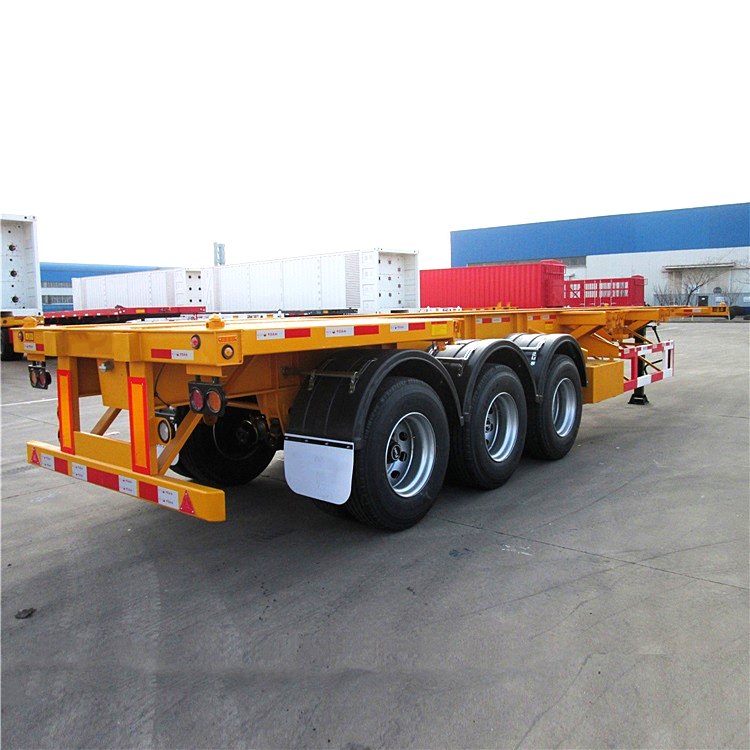

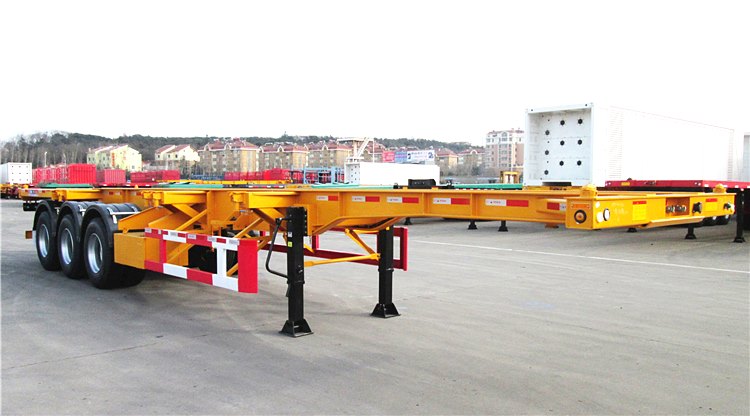

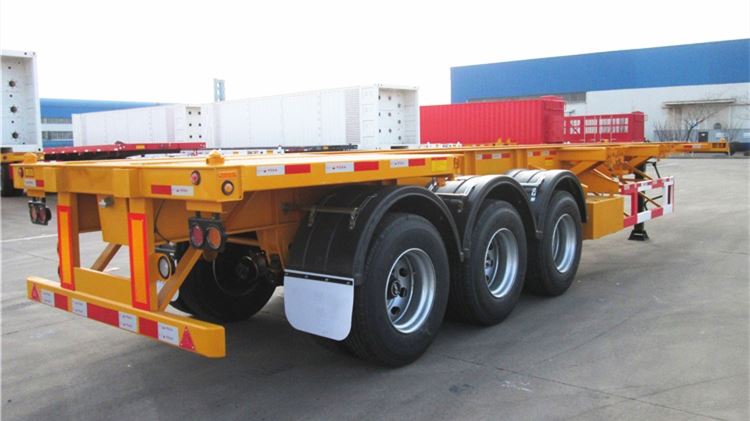

CIMC 40ft Skeleton 3 Axle Container Trailer Chassis

CIMC 40ft Skeleton 3 Axle Container Trailer Chassis Product Description:

CIMC 3 axle 40ft Skeleton Semi Trailer can take containers with dimensions of 20ft or 40ft. The loading capacity for skeletal trailer ranges from 40 tons - 60 ton CIMC 3 axle 40ft Skeleton Semi Trailer can take containers with dimensions of 20ft or 40ft. The loading capacity for skeletal trailers ranges from 40 tons - 60 tons. For heavyweight applications, you may want to consider having the 60 tons option. However, the 40 tons option could just be enough for most containers that you want to transport. This is a very important aspect to look at in your choice for a 2 axle 40ft container chassis.

Skeletal trailer is a wheeled structure designed to carry marine containers for the purpose of truck movement between terminals and shipping facilities.

It is a simple electromechanical device composed of a steel frame, tires, brakes and a lighting system. The basic components of a typical container chassis.

CIMC container chassis trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system. Specifically for a variety of container transport, customers can choose according to their own needs

Specification:

Type: Container Chassis Trailer

Overall dimensios: 12500x2500x1550 mm

Loading weight: 30-60 ton

Container twist lock: 8/12 pcs

Main beam: Q345B steel

Side beam: 16 U shaped steel or I shaped steel

Axle brand: FUWA/BPW/CIMC brand

Traction pin: 2” or 3.5”

Landing gear: Standard 28 ton, brand optional

Suspension system: Mechanical suspension, air suspension is optional

Tire: 12.00R22.5 Triangle brand tires, others tires optional

Brake: 6 big chamber brake system

Tool box: 1 unit

Side marker lamp: LED type

Voltage: 24V

Feature-gooseneck container trailer:

1.CIMC adopts high strength steel material to manufacture the container chassis trailer, it can make gooseneck trailer have a longer service life.

2.All the spare parts CIMC adopt are World Famous brand. like FUWA/BPW axle, JOST landing gear, Wabco Braking System, etc.

3.Hight Quality container locks, make sure the stable and safety of the loads. Specially used for transportation of various containers. It can be used repeatedly for a long time, with sufficient strength.

4.CIMC skeleton trailer can use it to carry one 40 ft cargo container, two 20 ft containers, or one 20 ft container at one time. If you use a used Intermodal Container Chassis trailer to transport not only containers but also some other goods, it is best to choose the type of flatbed trailer. Choose according to your needs, you can let professionals provide you with buying advice.

5.Double brake chamber with a performance braking effects.Use containers to transfer goods, which can be loaded directly in the consignor's warehouse and shipped to the consignee's warehouse for unloading. When replacing the tri axle chassis for sale or ship midway, there is no need to take the goods out of the box and replace them.
