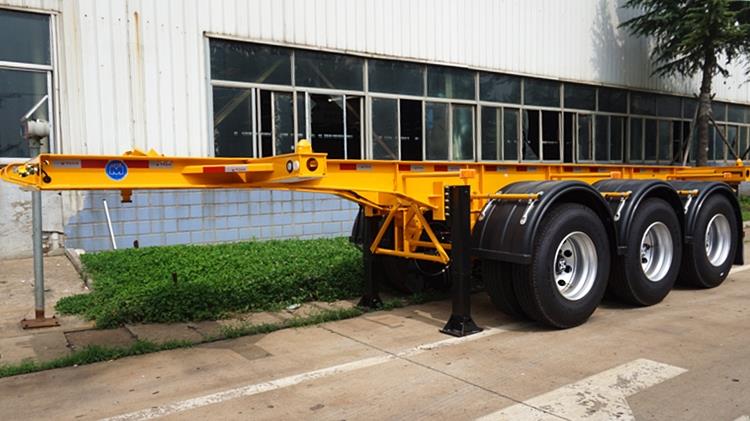

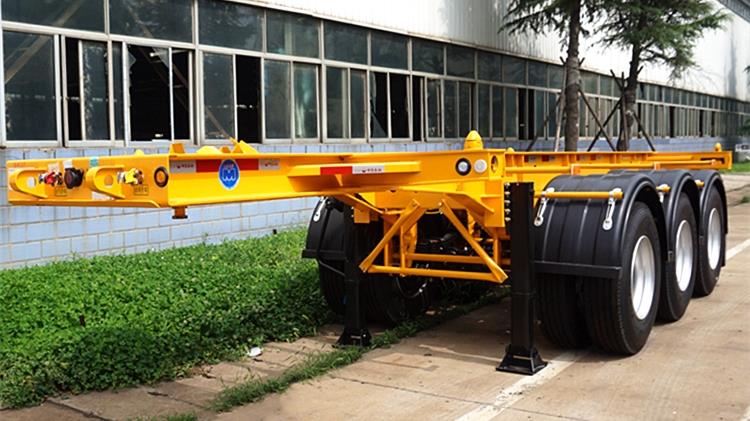

20ft Container Chassis Trailer

20ft Container Chassis Trailer Product Description:

The container chassis trailers can be specified with two, three and four axles using single or dual wheels and either disc or drum brakes. A self-track rear axle will be fitted on a quad trailer (four axles) to reduce tyre wear.

Container chassis trailers, also called semiskel trailers, are lightweight semitrailers usually designed for transporting containers. They can be specified in a large number of size configurations, such as: 20-foot container, 30-foot container, 40-foot container, 45-foot container.

Specification:

Overall L*W*H: 6200*2500*1550mm

Load weight: 40 tons ~70 tons

Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons

Tire: 12R22.5

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Airbag / Mechanical / bogie suspenion

Brake system: Wabco

Electric system: 24V / 12V + LED lights

Accessory: spare tire carrie + tool box

Remark: we can supply different specification for different road condition
